Oshkosh M1070 - Figure 8

TRAILER CONNECTION TO HET TRACTOR - Continued
22. Refer to (TM 9-2330-381-14) (WP 0113) to tighten steering wedge, raise landing gear,
adjust trailer height, and prepare trailer for operation.
NOTE
If AIR PRESS gauge does not indicate 65 psi (448 kPa) or more, trailer
brakes will not release.
23. Check that AIR PRESS gauge (25) on cab dash indicates at least 65 psi (448 kPa)
before starting out.
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
TRAILER
AIR SUPPLY
PARKING
BRAKE
26
27
25
28
29

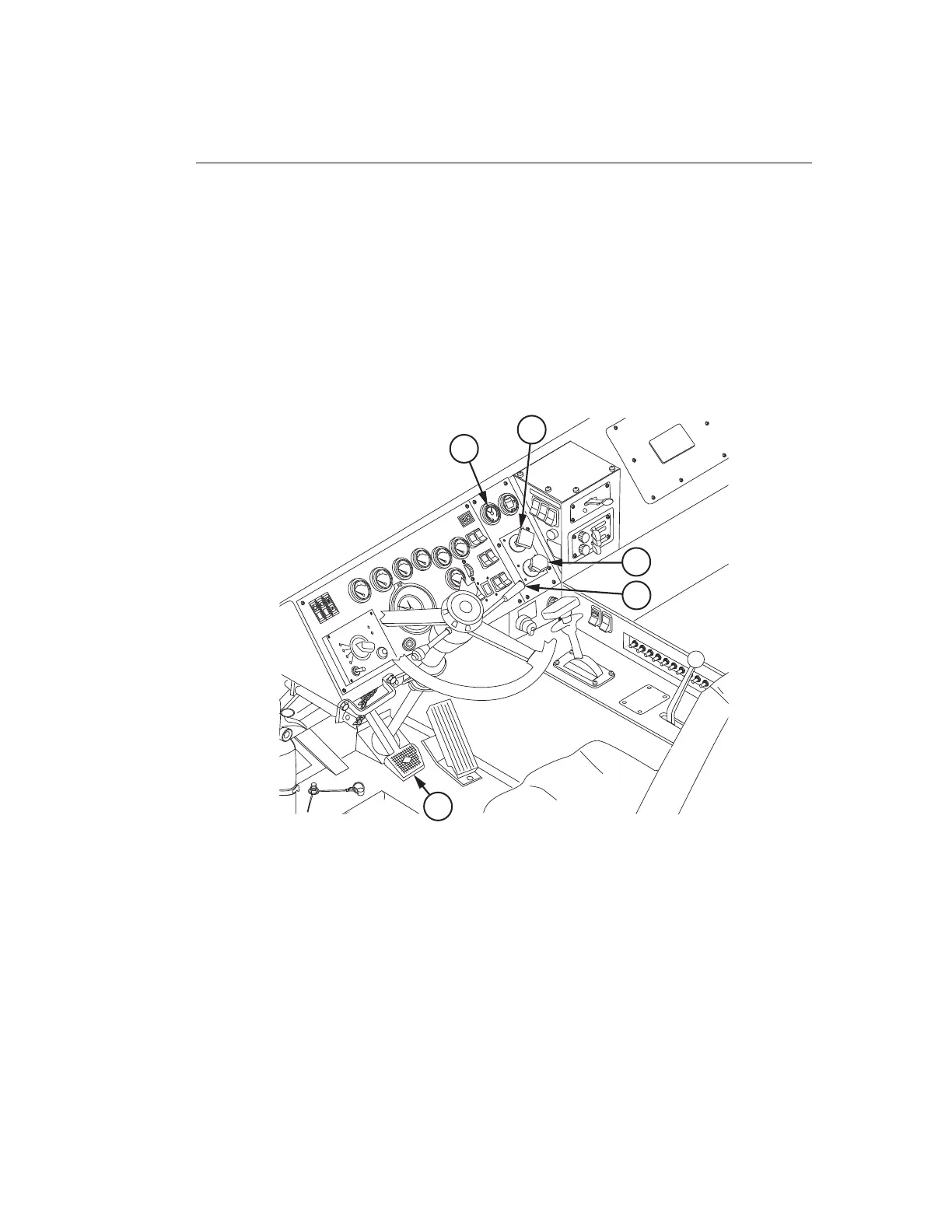

Figure 8.
24. Push in TRAILER AIR SUPPLY button (26) to pressurize air system.
25. Push in PARKING BRAKE control (27) to release parking brake.
26. Apply brake pedal (28) and check for proper operation.
27. Apply and release trailer hand brake control (29) to check trailer brake operation.
28. Refer to (TM 9-2330-381-14) (WP 0113) to adjust trailer steering.
TM 9-2320-360-10 0034
0034-9
