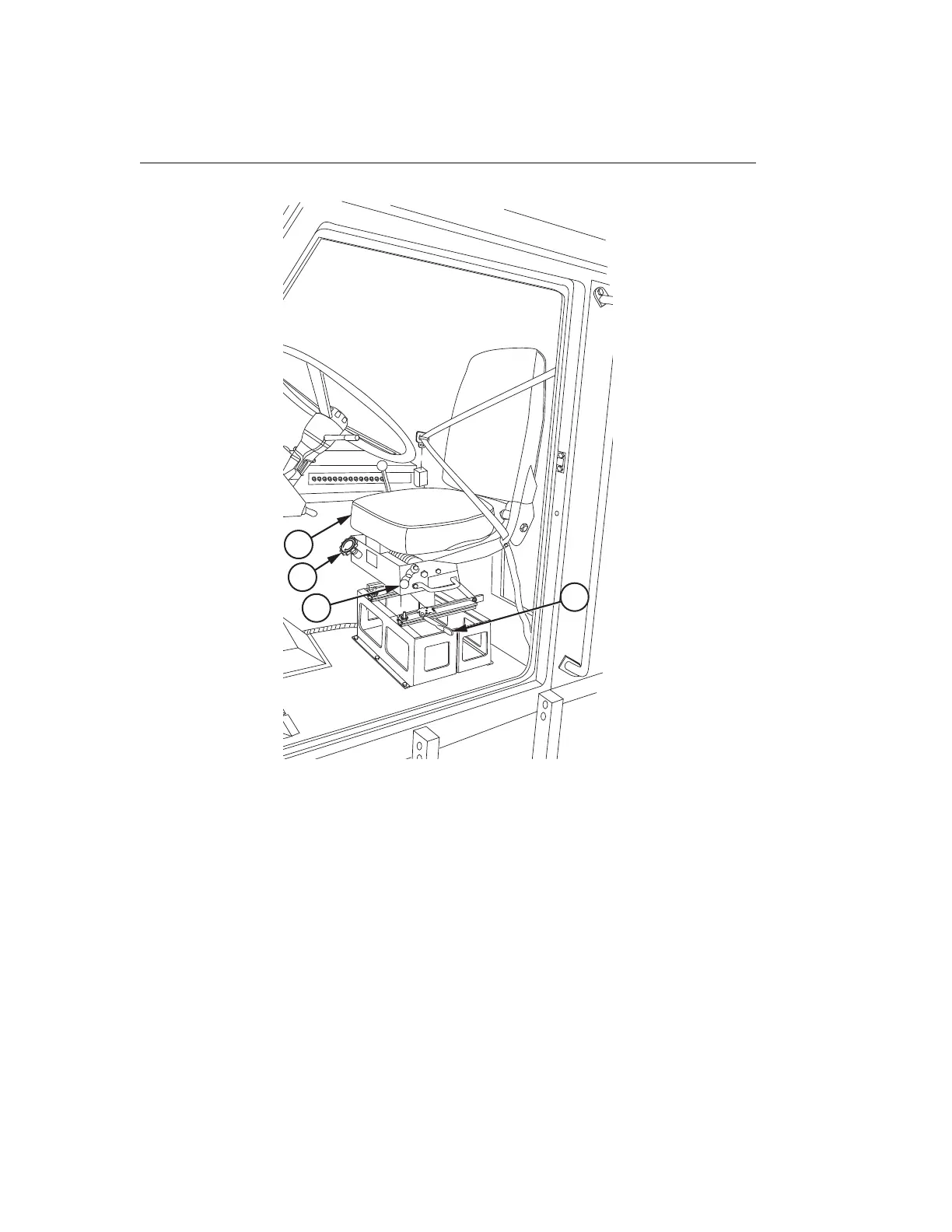

Oshkosh M1070 - Figure 1

2
3
1
4
Figure 1.
2. Adjust seat position:
a. Push forward/backward adjustment control (2) to left and slide seat (3) forward
or backward.
b. Release forward/backward adjustment control (2) to lock seat (3) in place.
3. Adjust seat height:
a. Pull height adjustment control (4) up and lift self off seat (3) to raise.
b. Push down on seat (3) to lower.
