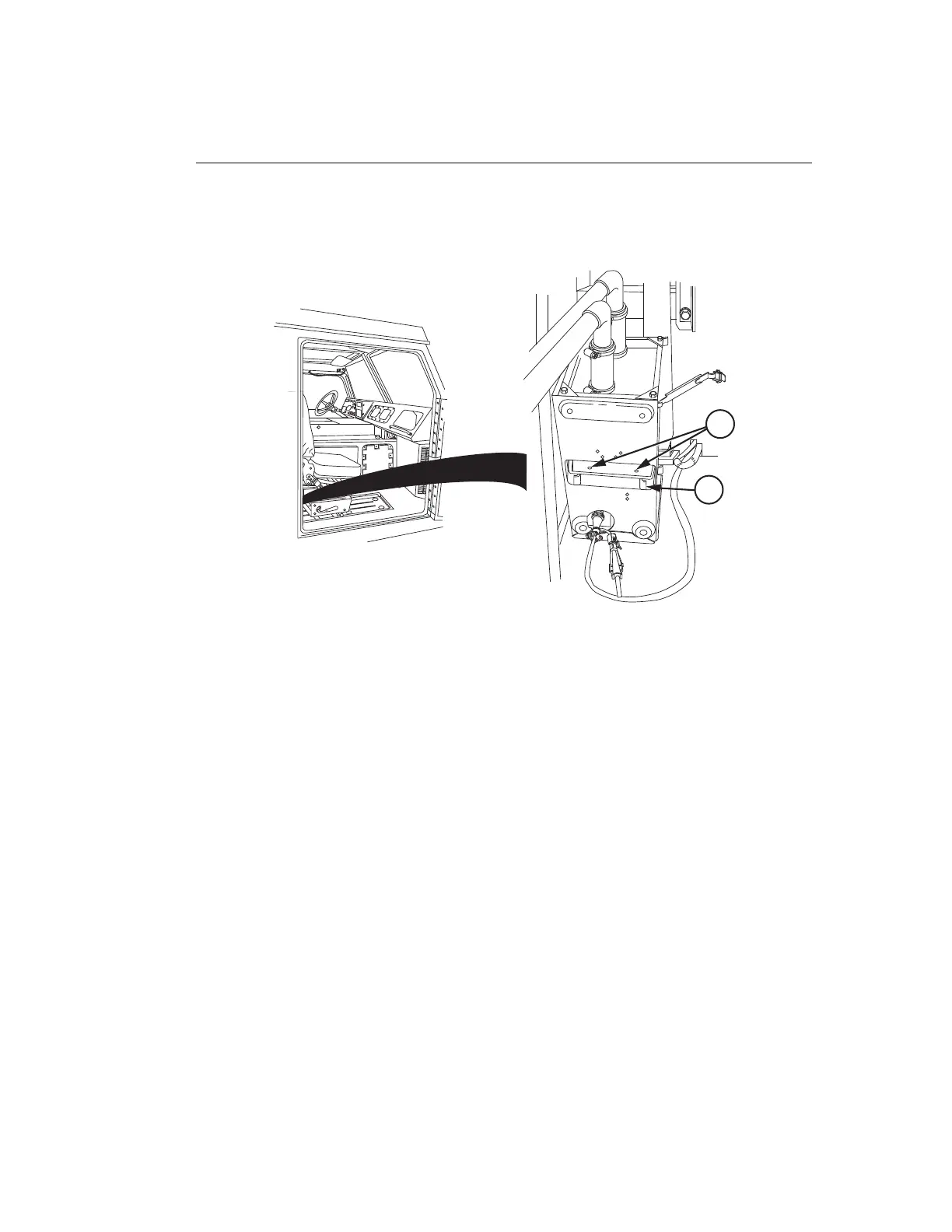

Oshkosh M1070 - Figure 8

GAS PARTICULATE FILTER HOSE REMOVAL AND STOWAGE - Continued
4. Push in on spring clip (6) to cover intake holes (7).
6
7
Figure 8.
5. Connect air duct hose breakaway socket (2) to mount (8).
TM 9-2320-360-10 0045
0045-7
