OPERATION IN SAND, MUD, OR SNOW - Continued
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
TRAILER
AIR SUPPLY
PARKING
BRAKE
5
6
7

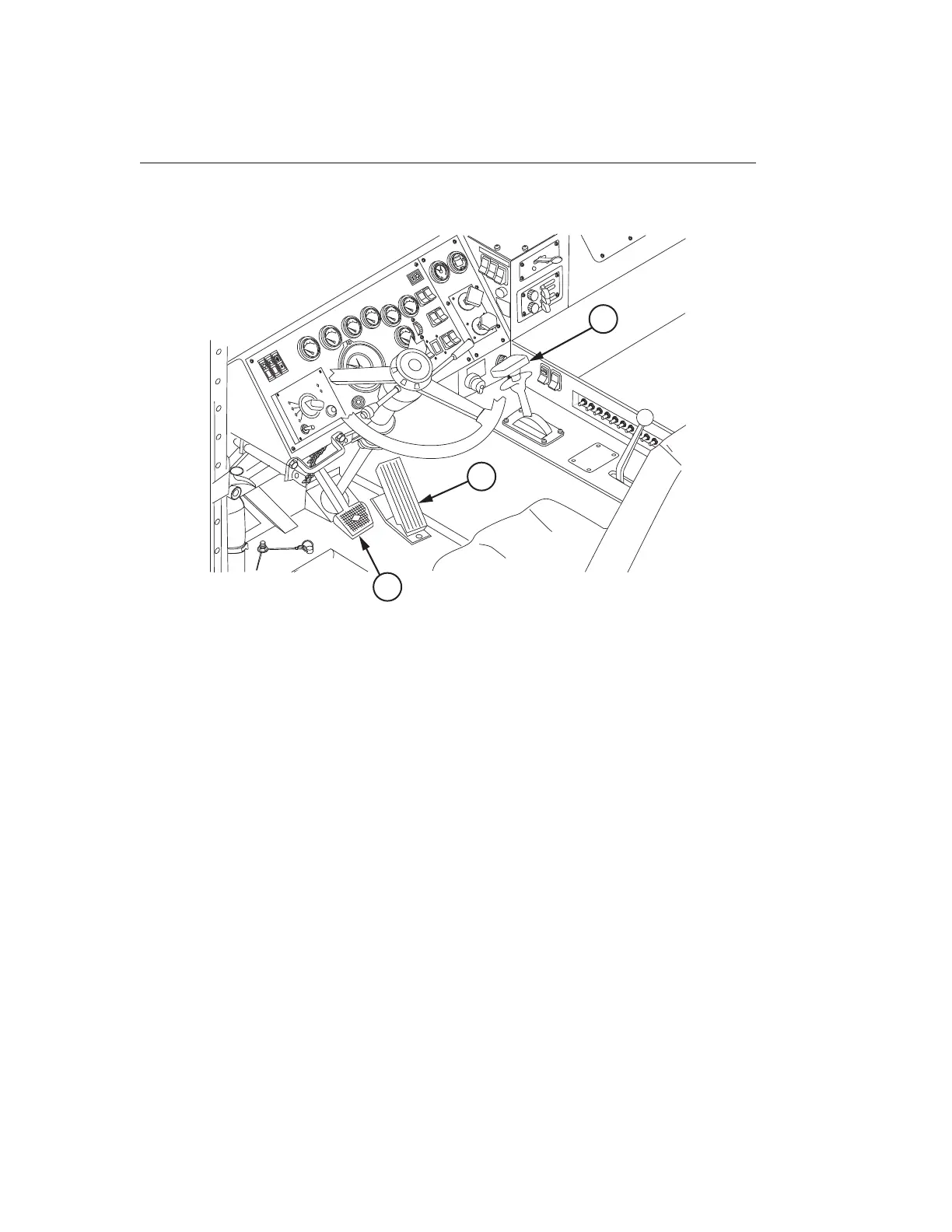

Figure 2.
b. Press throttle pedal (6) (WP 0012) and move HET Tractor straight back about
20 ft. (6 m).
c. Release throttle pedal (6). (WP 0012) Press service brake pedal (7).
(WP 0012)
CAUTION
Avoid using LOW transfer case with transmission selector in 1 (first
range). If using LOW transfer case & 1 (first range), do not exceed
1200 RPM when starting from a stop. If the tractor does not move
prior to reaching 1200 RPM, do not continue to increase engine
RPM. Failure to comply may result in driveline damage.
d. Set transmission range selector (5) to 1 (first gear range) position. (WP 0041)
e. Release service brake pedal (7). (WP 0012) Press throttle pedal (6)
(WP 0012) to move HET Tractor forward slowly then increase speed gradually.
f. Turn HET Tractor gradually to avoid oversteering the vehicle.
g. Set transmission range selector (5) to 2-5 position (WP 0041) when HET Tractor
picks up speed and is moving forward smoothly.
TM 9-2320-360-10 0075
0075-4
To Next Page
