SLAVE START DISABLED VEHICLE - Continued
CAUTION
ALWAYS connect NATO slave cable to DISABLED VEHICLE FIRST -
before connecting it to assist (slaving vehicle). Failure to comply may
result in damage to equipment.
1. Remove NATO slave cable (1) from stowage box (2) of disabled vehicle (3).
7
8
4
6
1
1
10
2
5
3
9

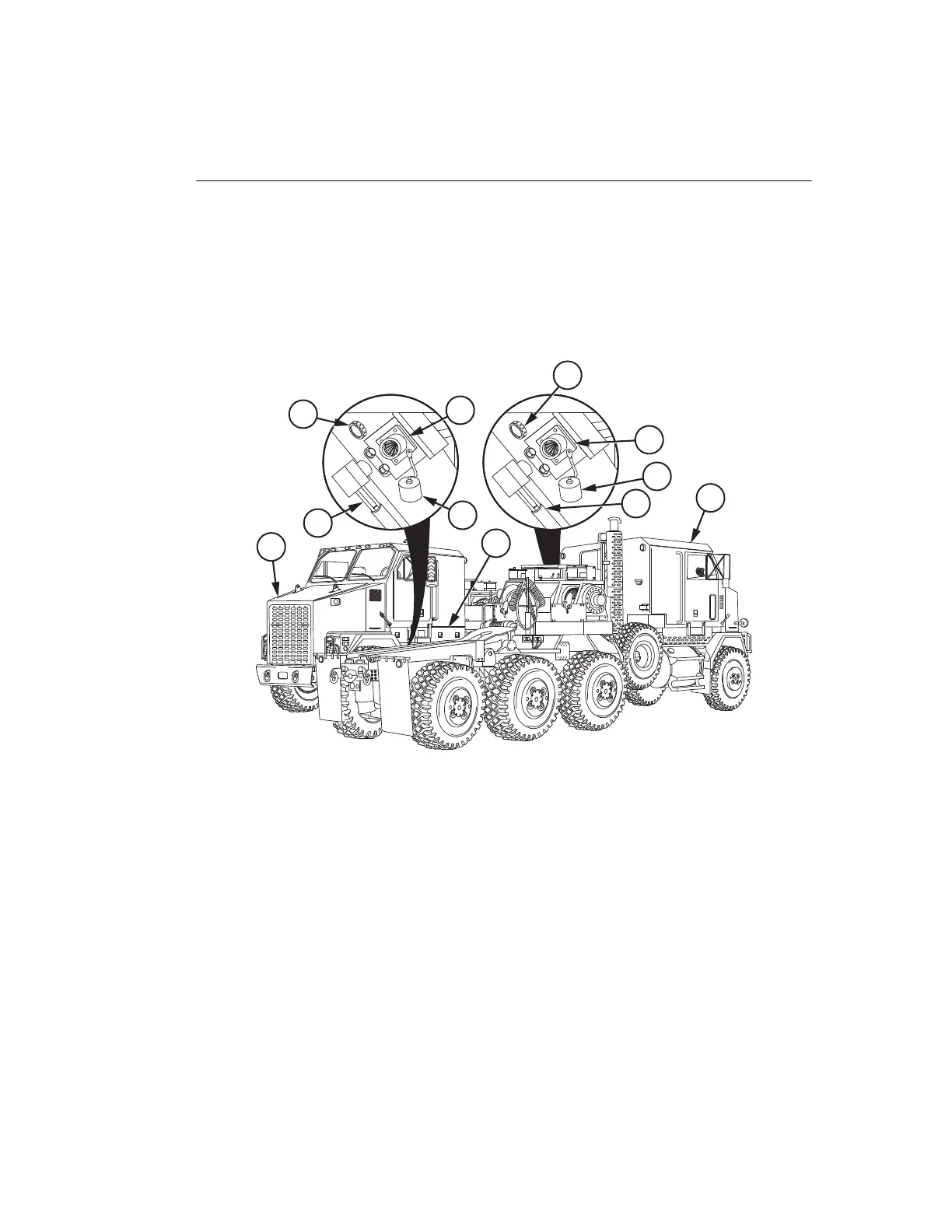

Figure 2.
2. Remove cap (4) from slave receptacle (5) of disabled vehicle (3).
3. Remove cap (6) from NATO slave cable (1).
4. Plug NATO slave cable (1) into slave receptacle (5) of disabled vehicle (3).
5. Remove cap (7) from slave receptacle (8) of assist (slaving) vehicle (9).
6. Remove cap (10) from free end of NATO slave cable (1).
7. Plug free end of NATO slave cable (1) into slave receptacle (8) of assist (slaving)
vehicle (9).
8. Start engine of assist (slaving) vehicle (9). (WP 0037)
////////////////////////////////////////////////////////////////////////////////////
TM 9-2320-360-10 0078
0078-3
////////////////////////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
