OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
TRAILER
AIR SUPPLY
PARKING
BRAKE
3
1
2

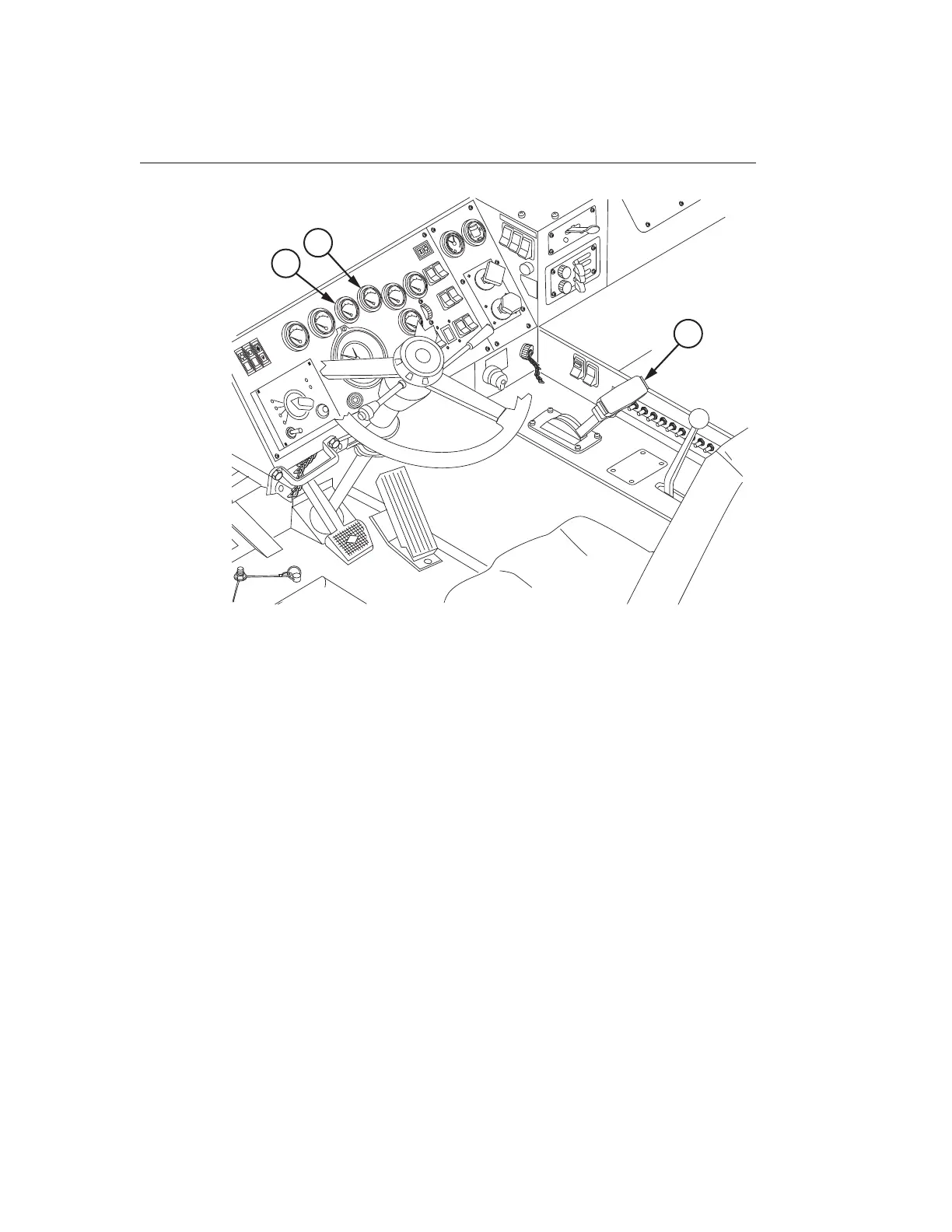

Figure 1.
a. Set transmission range selector (3) to lower gear range (WP 0041) and continue
operation.
b. Stop HET Tractor and let transmission/transfer case cool if TRANS TEMP
gauge (1) and T-CASE TEMP gauge (2) (WP 0015) do not return to normal
range.
c. Set transmission range selector (3) to normal gear range (WP 0041) and
continue operation when TRANS TEMP gauge (1) and T-CASE TEMP gauge
(2) (WP 0015) read in normal range.
4. Check cooling system; notify field level maintenance if any of the following are found:
a. Leaky hose connections that have been tightened but still leak.
b. Loose fan belt.
c. Cracked or leaking hoses.
d. Radiator fins plugged with dust, leaves, or insects.
TM 9-2320-360-10 0072
0072-2
