Oshkosh M1070 - Operator Maintenance - Slave Start Vehicle; Prepare Vehicles for Slaving Procedure

OPERATOR MAINTENANCE
SLAVE START VEHICLE
INITIAL SETUP:
Personnel Required
Operator and Assistant - - - (2)
PREPARE VEHICLES FOR SLAVING PROCEDURE
NOTE
Report any malfunction requiring HET Tractor to be slave started to unit
maintenance.
1. Start engine of assist (slaving) vehicle. (WP 0037)
NOTE
NATO slave receptacle on HET Tractor is located on rear splash guard
of driver side front fender.

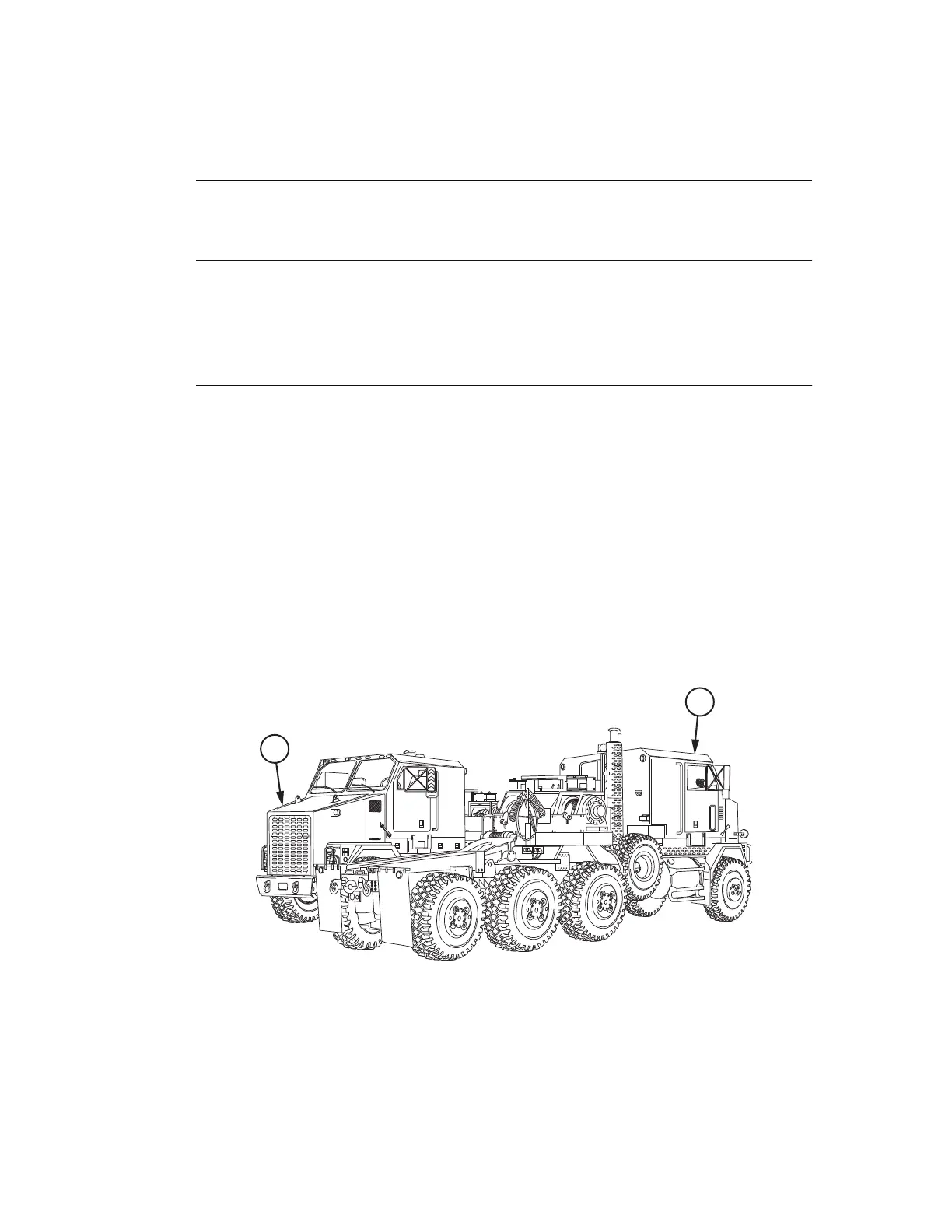

2. Position assist (slaving) vehicle (1) next to disabled vehicle (2) so NATO slave
receptacles are side by side.
2
1
Figure 1.
////////////////////////////////////////////////////////////////////////////////////
TM 9-2320-360-10 0078
0078-1
////////////////////////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
