Oshkosh M1070 - Wheel Slippage Procedures

WHEEL SLIPPAGE PROCEDURES - Continued
a. Stop HET Tractor.
NOTE
•
Model A dash panel shown, Model B dash panel similar.
•
Central tire inflation system (CTIS) may not engage properly if
central tire inflation system (CTIS) START button (WP 0015) is
pressed too quickly.
•
For a detailed explanation of the CTIS, refer to Central tire
inflation system (CTIS) operation. (WP 0028)
•
Allow time for Central tire inflation system (CTIS) adjustment -
Central tire inflation system (CTIS) tire pressure indicator light
(at selected setting) will flash (green) while Central tire inflation
system (CTIS) is adjusting tire pressures. Central tire inflation
system (CTIS) tire pressure indicator light will illuminate (green)
steady when tire pressures are properly adjusted.
b. Turn central tire inflation system (CTIS) rotary selector switch (1) to MUD,
SAND, AND SNOW position. (WP 0028)
7
6
1
3
5
2
4
8
9

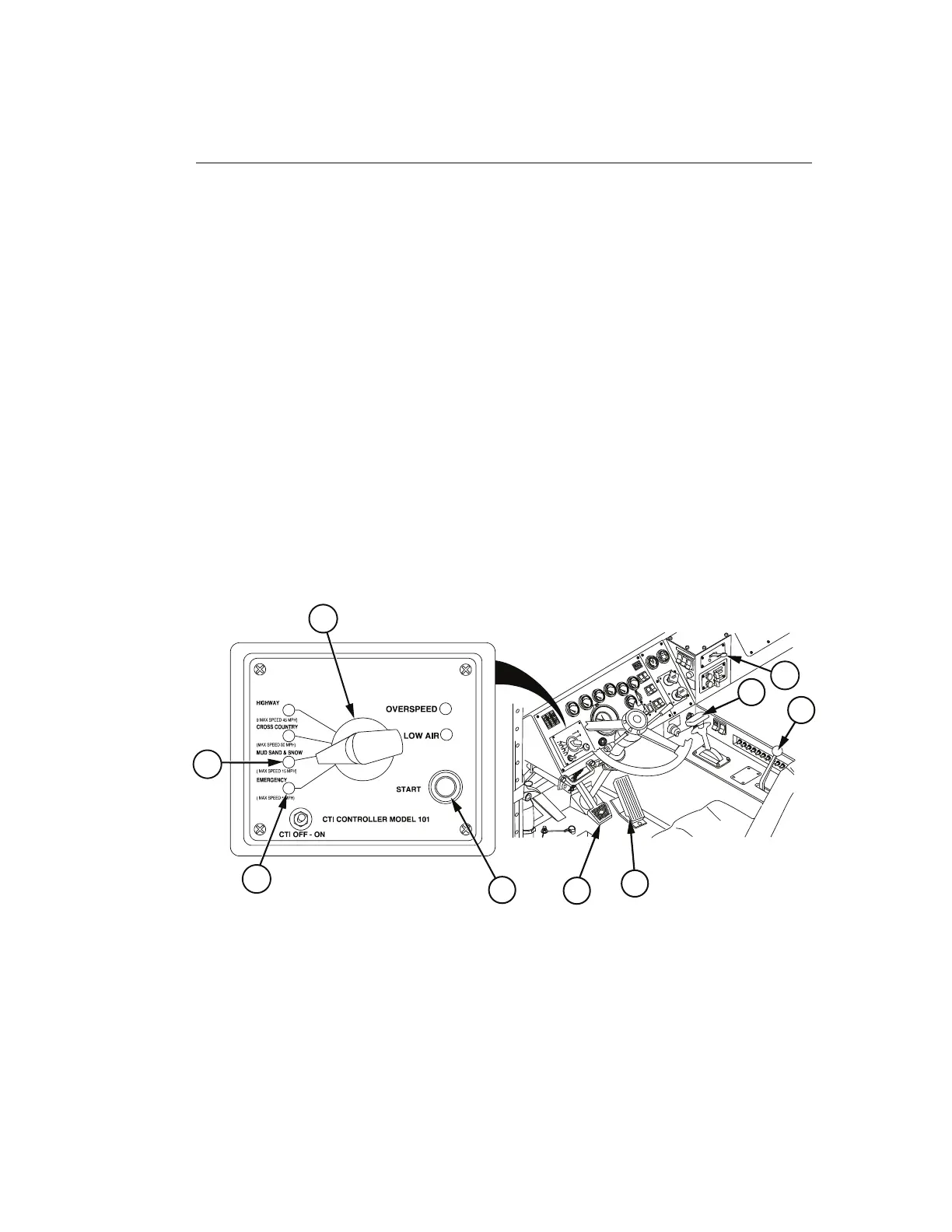

Figure 2.
c. Press and hold START switch (2) for approximately one second:
(1) When CTIS MUD, SAND, AND SNOW tire pressure indicator light (3)
remains steady green, gradually apply throttle pedal (4) (WP 0012) and
release service brake pedal (5) (WP 0039) as traction allows.
