Oshkosh M1070 - Operator Maintenance - Limp Home Procedure; CAUTION

OPERATOR MAINTENANCE
LIMP HOME PROCEDURE
INITIAL SETUP:
Not Applicable
CAUTION
Do not operate HET Tractor with more than one air spring disabled per
side. Failure to comply may result in damage to equipment.
NOTE
Limp home procedure is used after failure of an air spring.
1. Shut engine OFF. (WP 0042)
2. Install wheel chocks (1).
7
1
5
6
4
2
3

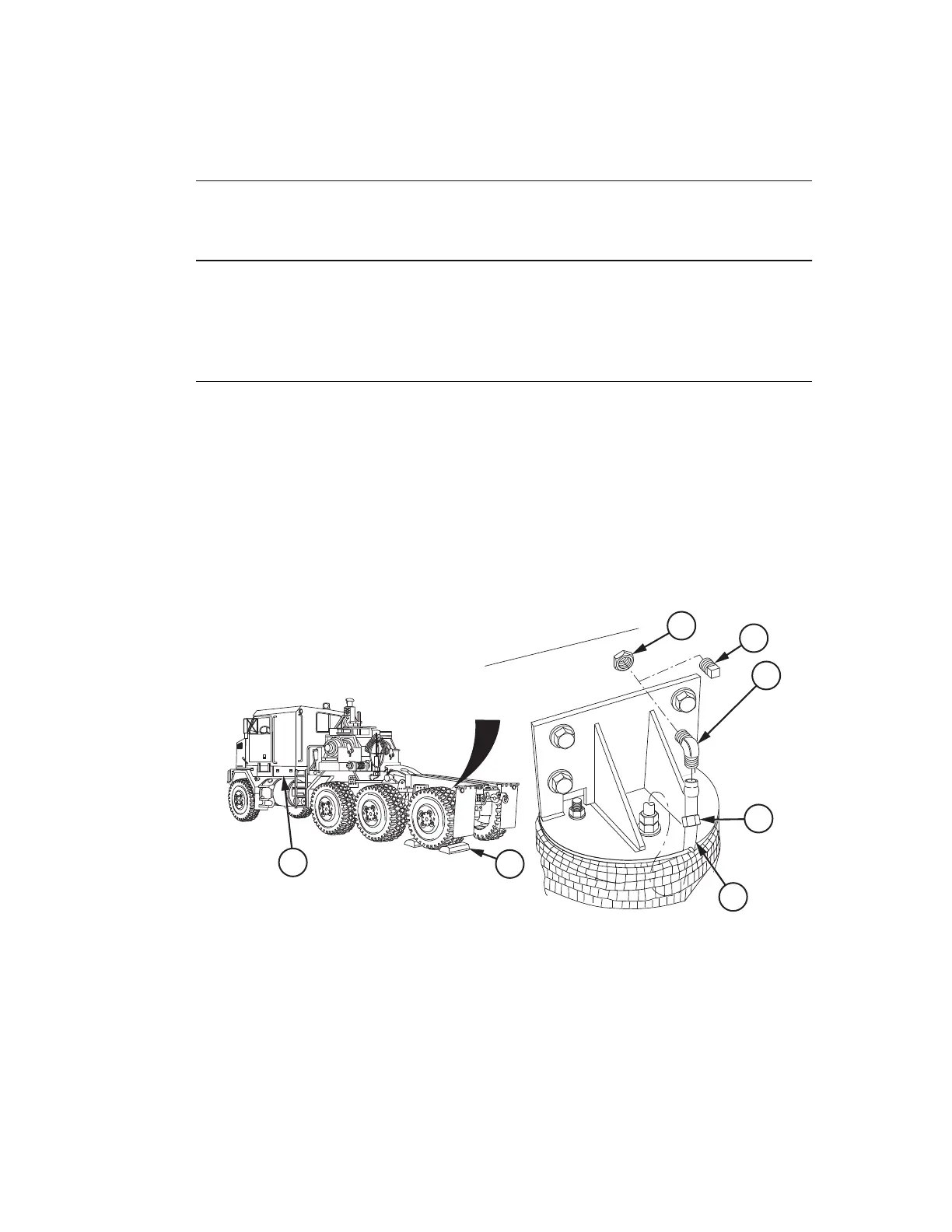

Figure 1.
3. Remove nut (2) and air hose (3) from elbow (4).
4. Remove elbow (4) from fitting (5).
////////////////////////////////////////////////////////////////////////////////////
TM 9-2320-360-10 0081
0081-1
////////////////////////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
