TOW BAR CONNECTION - Continued
31. Install tow eye shackles (3) on rear tow eye shackles (35 and 36) of towing vehicle.
32. Position utility chains (33 and 34) in tow eye shackles (3). Install pins (2) through tow
eye shackles (3) and utility chains (33 and 34). Install cotter pins (1) in pins (2).
33. Install utility chains (33 and 34) around tow bar (5) with one wrap of chain in front of
spare pin holder (9) and three wraps behind with the aid of an assistant.
34. Attach one utility chain (33) to front spring (37) on disabled vehicle.
26
25
9
9
39
22
33
373834

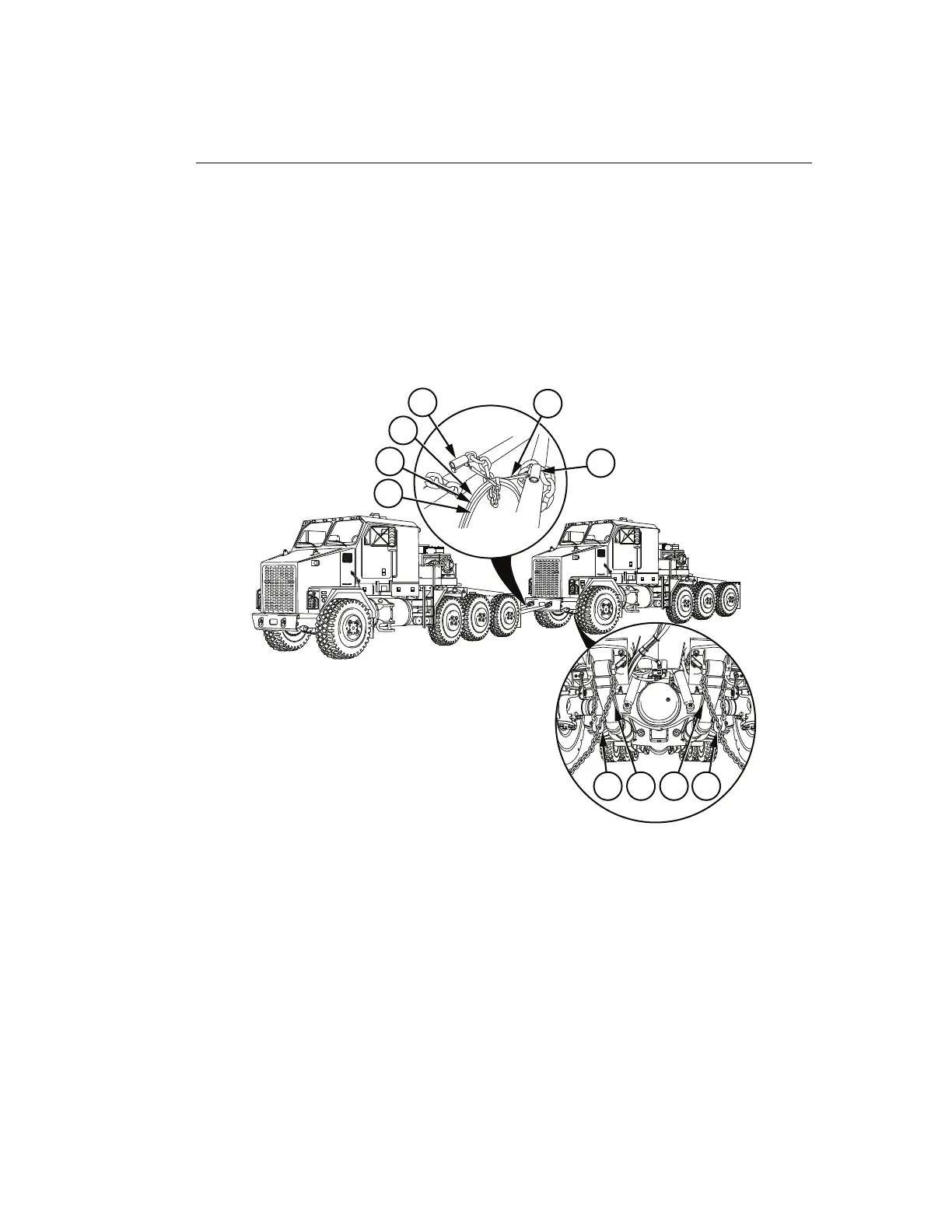

Figure 9.
CAUTION
Slack in chain, air hoses, and electrical cable must be positioned evenly
in front of and behind spare pin holder. Hoses and cable must not drag
on ground. Failure to comply may result in damage to equipment.
35. Attach other utility chain (34) to front spring (38) on disabled vehicle.
TM 9-2320-360-10 0070
