GAS PARTICULATE FILTER UNIT (GPFU) OPERATION - Continued
•
For detailed information concerning protective mask, refer to TM
3-4240-280-10.

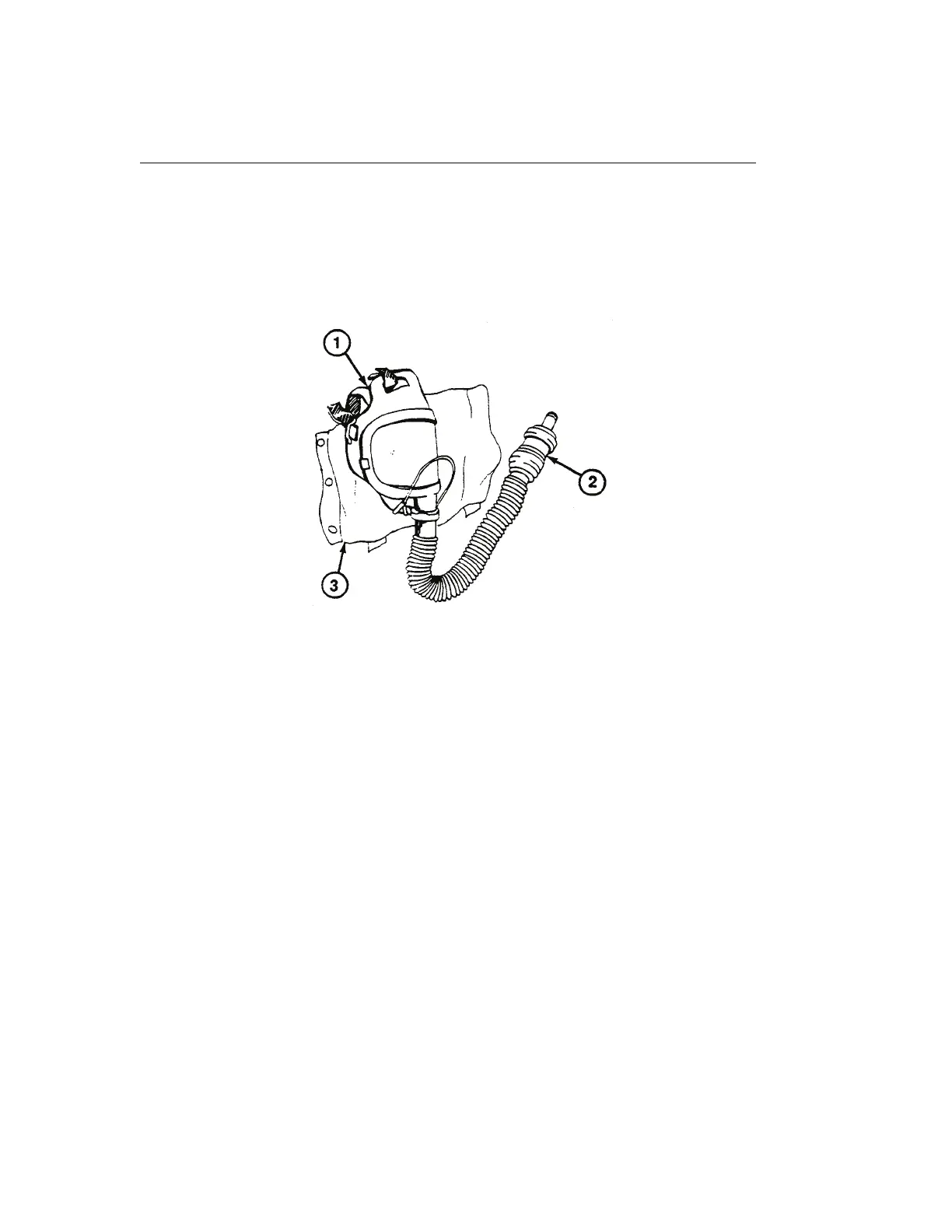

1. Remove protective mask (1) and canister (2) from pouch (3).
Figure 1.
2. Put on protective mask (1).
3. Clear and seal protective mask (1).
WARNING
Spring clip on filter assembly air intake must be pulled so intake holes are
open for gas particulate filter system to work. Failure to pull out clip may
result in serious injury or death to personnel.
4. Pull out on spring clip (4) to uncover intake holes (5).
TM 9-2320-360-10 0045
0045-2
