Oshkosh M1070 - Figure 2

2. Insert seat belt flat metal end (3) in buckle (4) until click is heard.
3. Place lap belt (5) as low on hips as possible.
NOTE
Seat belt does not have self-adjusting lock. Pull shoulder belt to take out
slack from lap belt.
4. Pull shoulder belt (6) until lap belt (5) fits snug.
5. Adjust shoulder belt (6) with no more than 1 in. (2.5 cm) slack between chest and belt
(6).
EN
G
A
G
ED P
OS
ITI
O
N
RELEASED POSITION
8
6
7
8
6
7

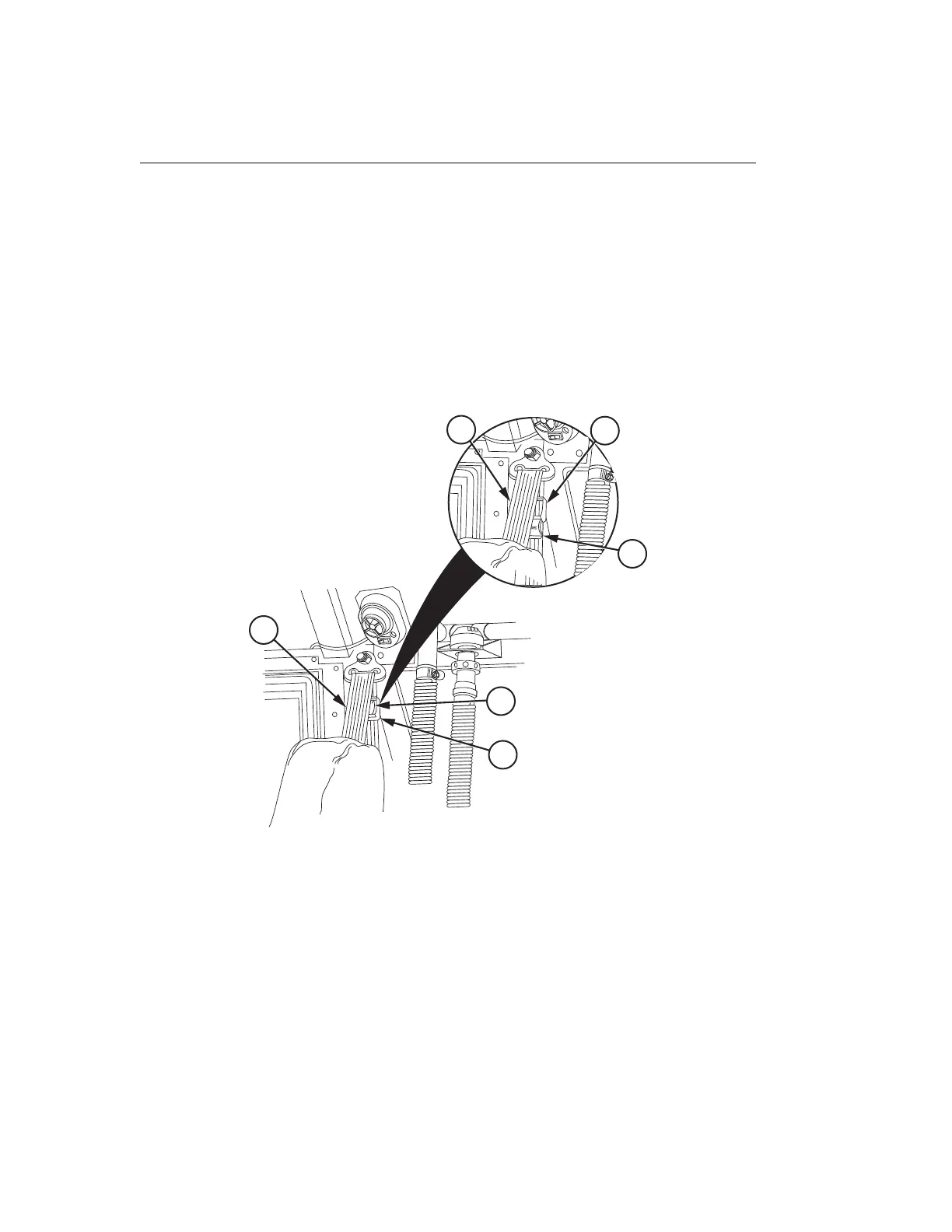

Figure 2.
6. Lift up lever (7) of comfort latch (8) to clamp shoulder belt (6) in place.
7. Pull down on shoulder belt (6) to release lever (7) of comfort latch (8).
8. Push down on red button (9) on buckle (4) to release seat belt (10).
