OPERATOR MAINTENANCE
TRANSMISSION AND TRANSFER CASE OPERATION
INITIAL SETUP:
Not Applicable
1. Start engine. (WP 0037)
2. Push down on service brake pedal (1) (WP 0012) to apply service brakes.
(WP 0039)
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
TRAILER
AIR SUPPLY
PARKING
BRAKE
2
1

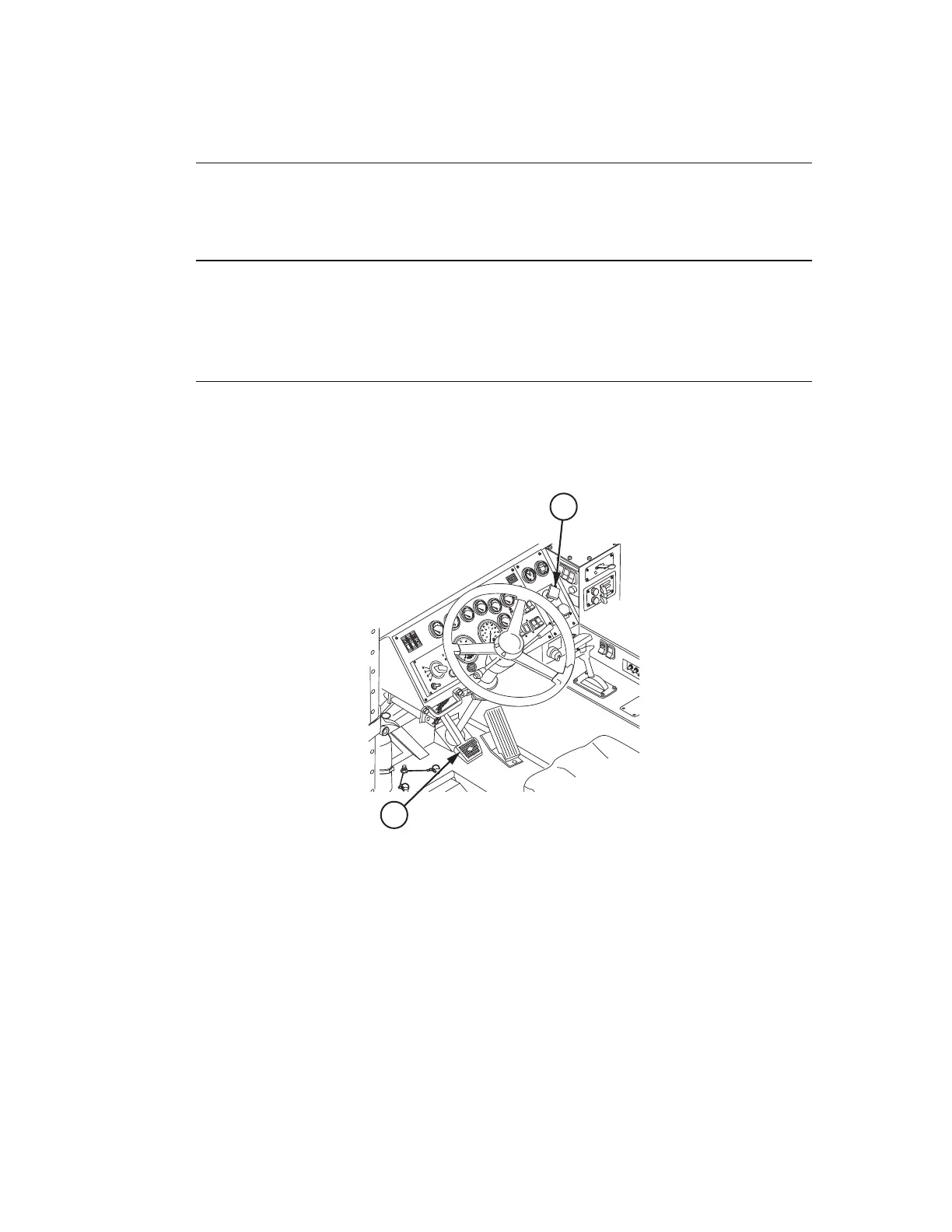

Figure 1.
3. Push in PARKING BRAKE control (2) (WP 0016) to disengage parking brakes.
(WP 0043)
CAUTION
These are guidelines for operation, and may not be applicable under all
circumstances. Refer to applicable procedures within this manual for
TM 9-2320-360-10 0041
0041-1
