CABLE PAYOUT, VEHICLE CONNECTION, AND RECOVERY - Continued
4
4
1
3
2

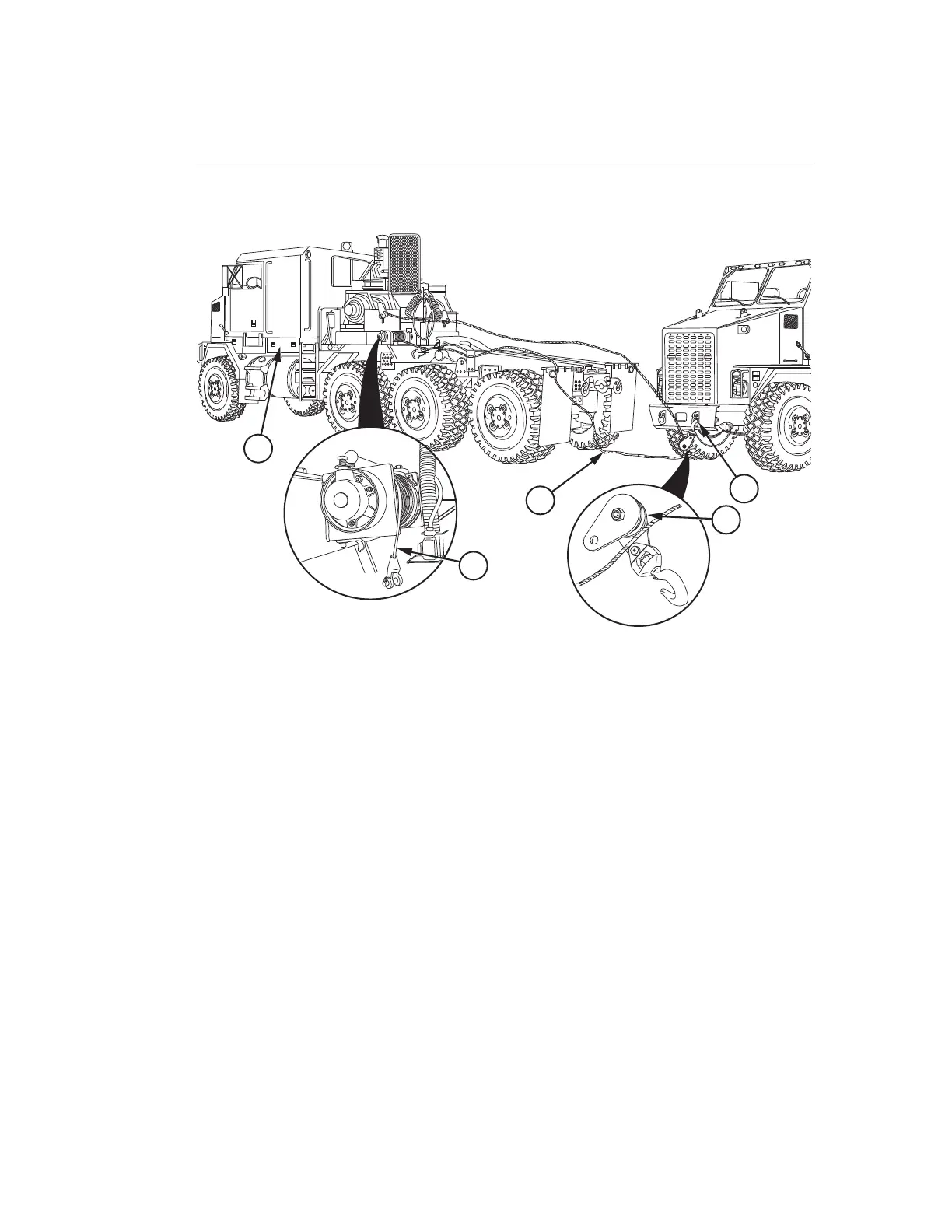

Figure 6.
2. Attach snatch block (1) to shackle (3) on disabled vehicle.
3. Grasp end of auxiliary winch cable (4) and pull through open snatch block (1).
4. Close snatch block (1).
5. Pull end of auxiliary winch cable (4) back to main winch cable (5).
TM 9-2320-360-10 0035
0035-7
