TRAILER CONNECTION TO HET TRACTOR - Continued
Table 1. Lockout Positions. - Continued
Trailer Type
On-Road Off-Road
Other trailers with combined center of
gravity of trailer and payload ABOVE 65
in. (165.1 cm)
Engage
Lockouts
Engage Lockouts
3. Tighten screws (1) on each side of fifth wheel (2).
LOCKOUT ENGAGED
LOCKOUT DISENGAGED
2 5 1
4 6
3
7

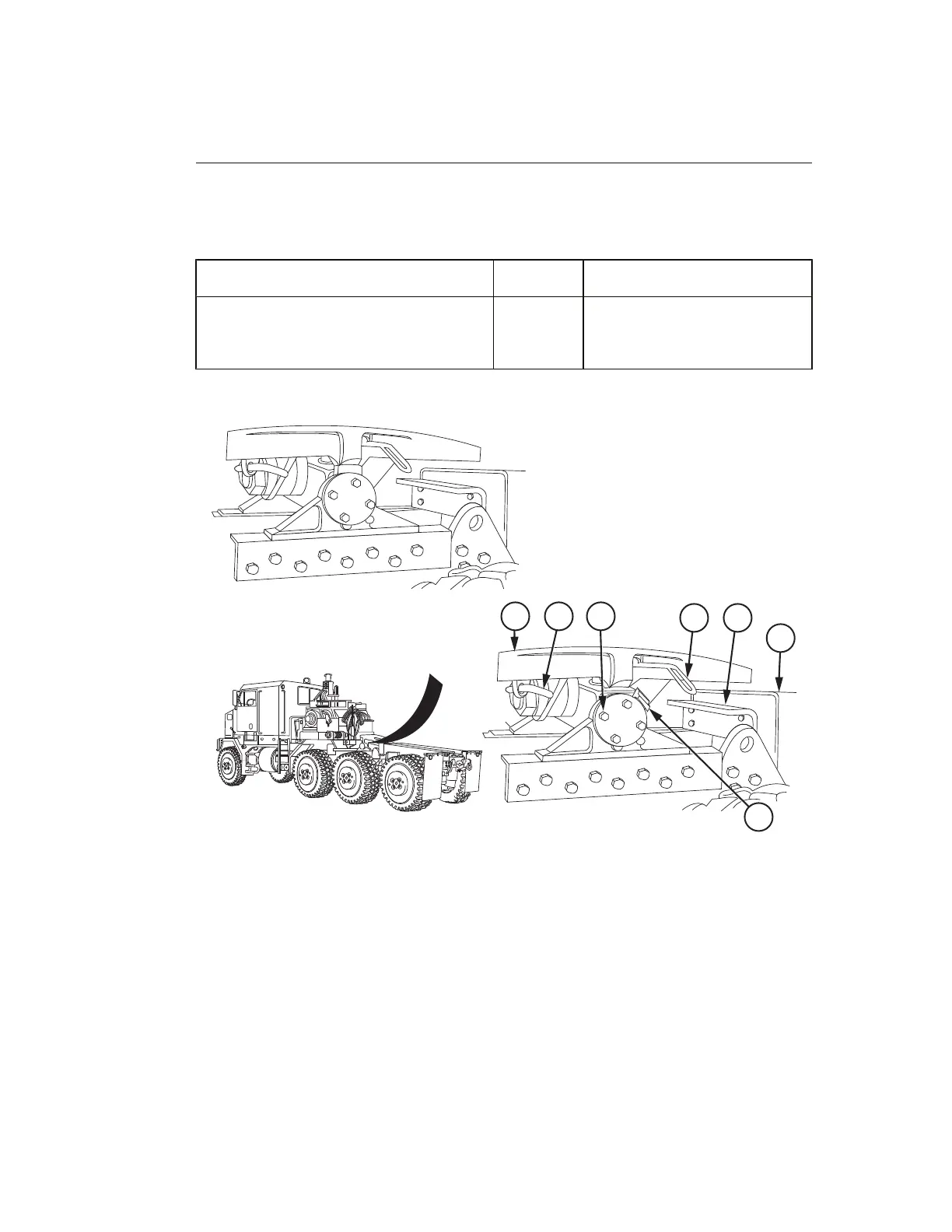

Figure 2.
4. Pull fifth wheel secondary lock release handle (4) completely out and latch in out
position.
5. Pull fifth wheel primary lock release handle (5) completely out and latch in out position.
6. Push down rear of fifth wheel (2) until it rests on stop (6) and below guide ramps (7).
TM 9-2320-360-10 0034
0034-3
