Oshkosh M1070 - Figure 1

SETUP LADDER - Continued
F
L
5
10
9
1
5
7
6
8
2
4
3

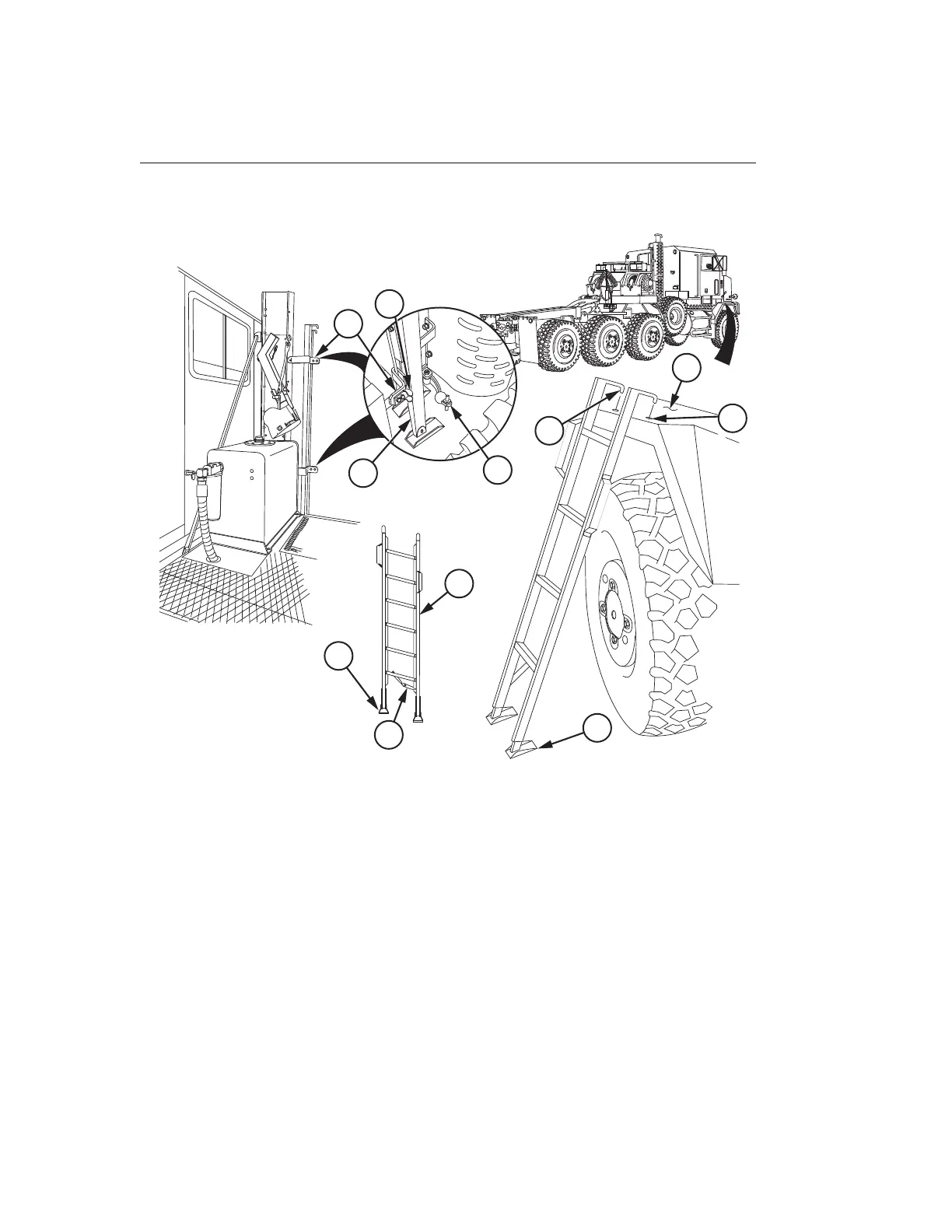

Figure 1.
2. Remove ladder (3) from two mounting brackets (4).
3. Set two shoes (5) on hard surface.
4. Pull side rail (6) down until lock (7) engages.
5. Place two hooks (8) in holes (9) in fender (10).
6. Position two shoes (5) securely on ground.
END OF TASK
