PREPARATION TO OPERATE WINCH - Continued
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
ENGINE
BR
AKE
EN
GINE
BRAKE
LO
H
I
TRAILER
AIR SUPPLY
PARKING
BRAKE
1
2

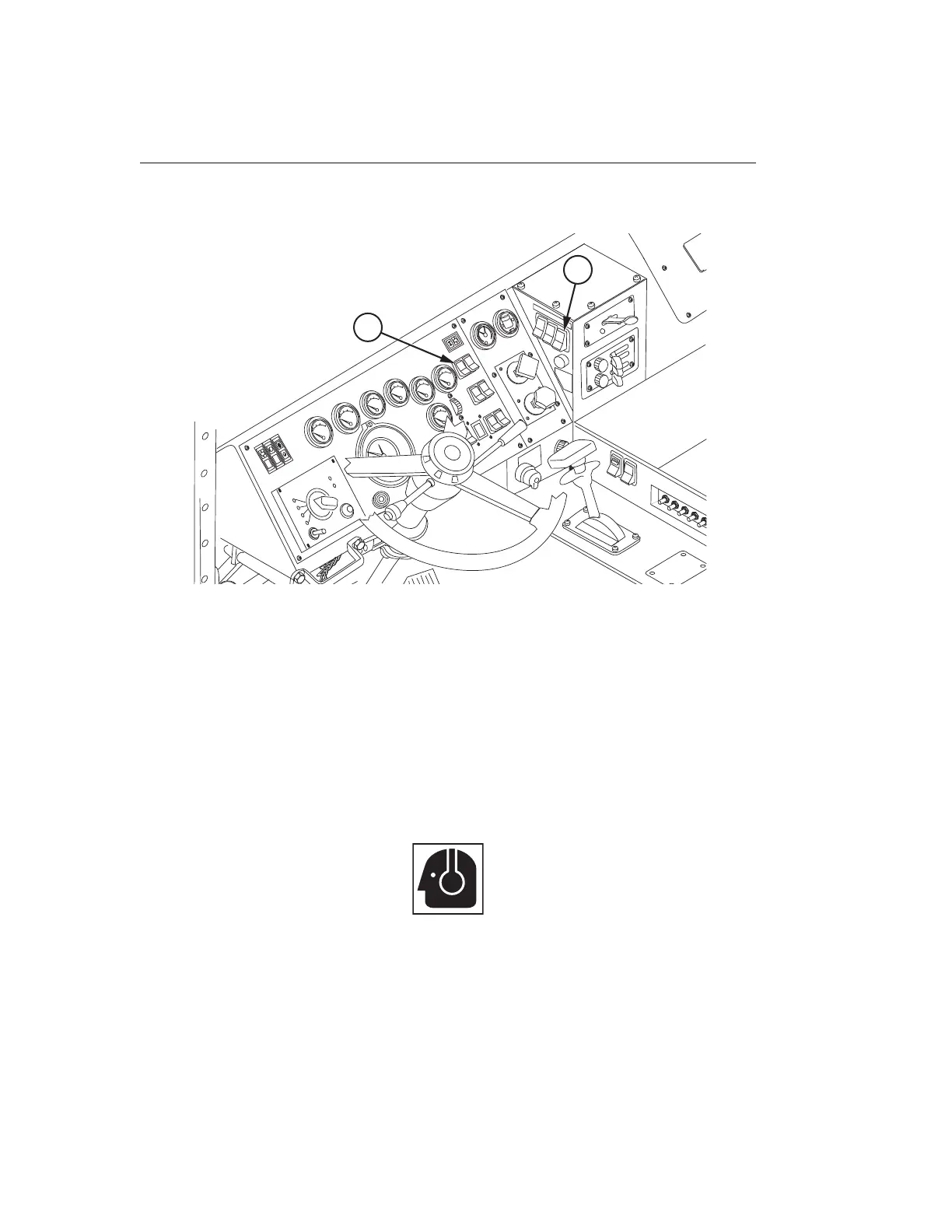

Figure 1.
CAUTION
Do not attempt to engage PTO with engine in high idle. Failure to comply
may result in damage to PTO.
NOTE
PTO indicator will light when switch is turned to on position.
4. With engine idling, set PTO switch (2) to on.
WARNING
Wear approved hearing protection devices when working within 30 ft. (9.2
m) of HET Tractor during winch operation. Permanent hearing loss may
result if exposed to constant high noise levels.
TM 9-2320-360-10 0035
0035-2
To Next Page
