TEST 2 - Does CTIS operate properly?
NOTE
CTIS will not operate if air system pressure is less than 85 psi (586 kPa).
1. Start engine. (WP 0037)
2. Check CTIS operation (WP 0028) by moving CTIS switch to a higher or lower setting
and waiting for operation to stop.
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
CTIS
CONTROLS
BLACK
OUT
DRIVE
BLACK
OUT
MARKER
BLACK
OUT
LIGHTS
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
TRAILER
AIR SUPPLY
ENGINE
OFF
ON
START
FILTER MINDER
AIR CLEANER RESTRICTION
RESET
H O
2
—20—
—15—
—10—
— 8 —
PARKING
BRAKE

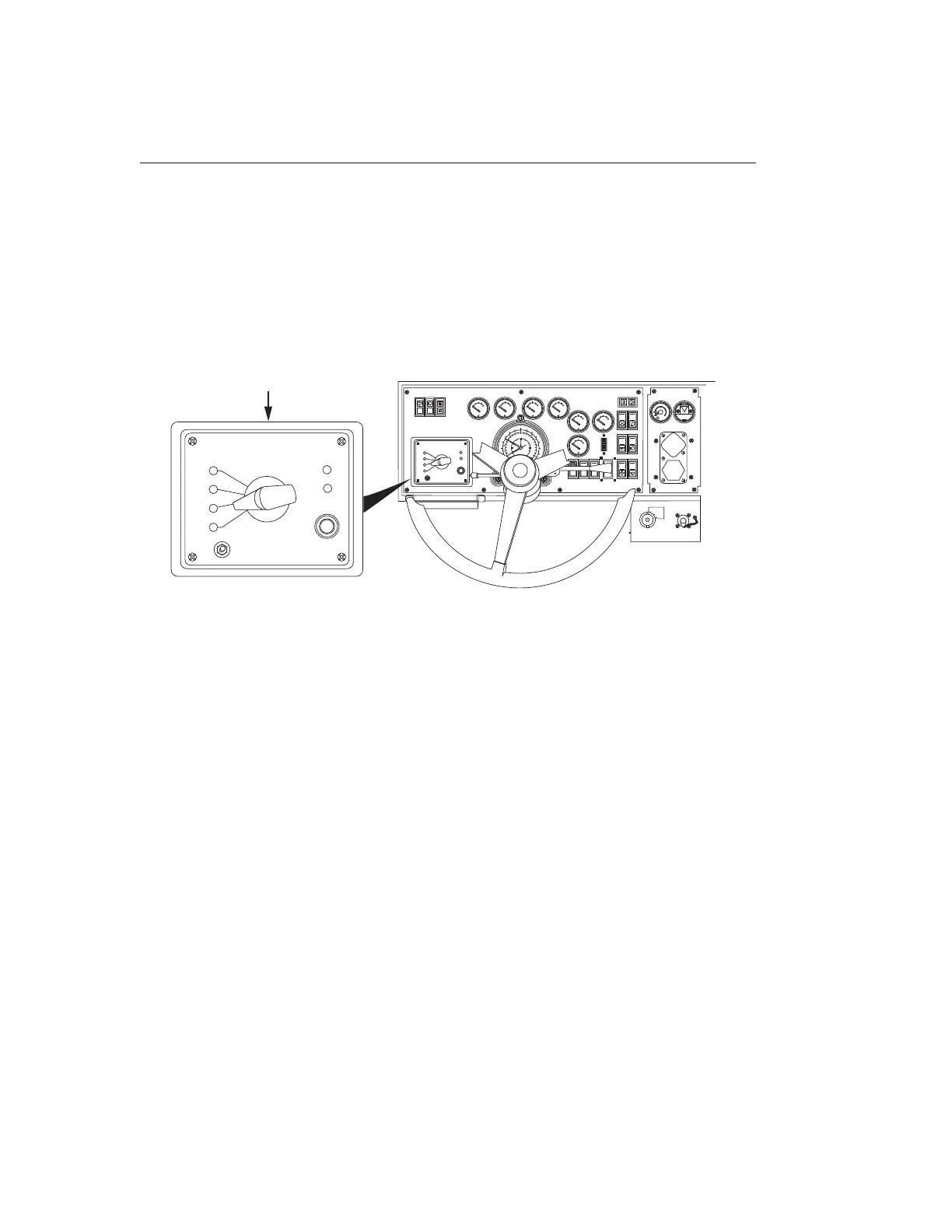

INSTRUMENT PANEL W/ TACHOGRAPH SHOWN,
INSTRUMENT PANEL W/ SPEEDOMETER & TACHOMETER SIMILAR
Figure 2.
CONDITION/INDICATION
Does CTIS operate properly?
DECISION
No - Contact supervisor.
Yes - Inflate tires to proper level using CTIS. (WP 0028)Contact supervisor.
END OF WORK PACKAGE
