Oshkosh M1070 - Figure 4

GAS PARTICULATE FILTER UNIT (GPFU) OPERATION - Continued
NOTE
Three hoses are located on left cab wall behind driver seat. Two hoses
are located on right cab wall behind passenger seat.
6. Disconnect air duct hose breakaway socket (7) from mount (8).

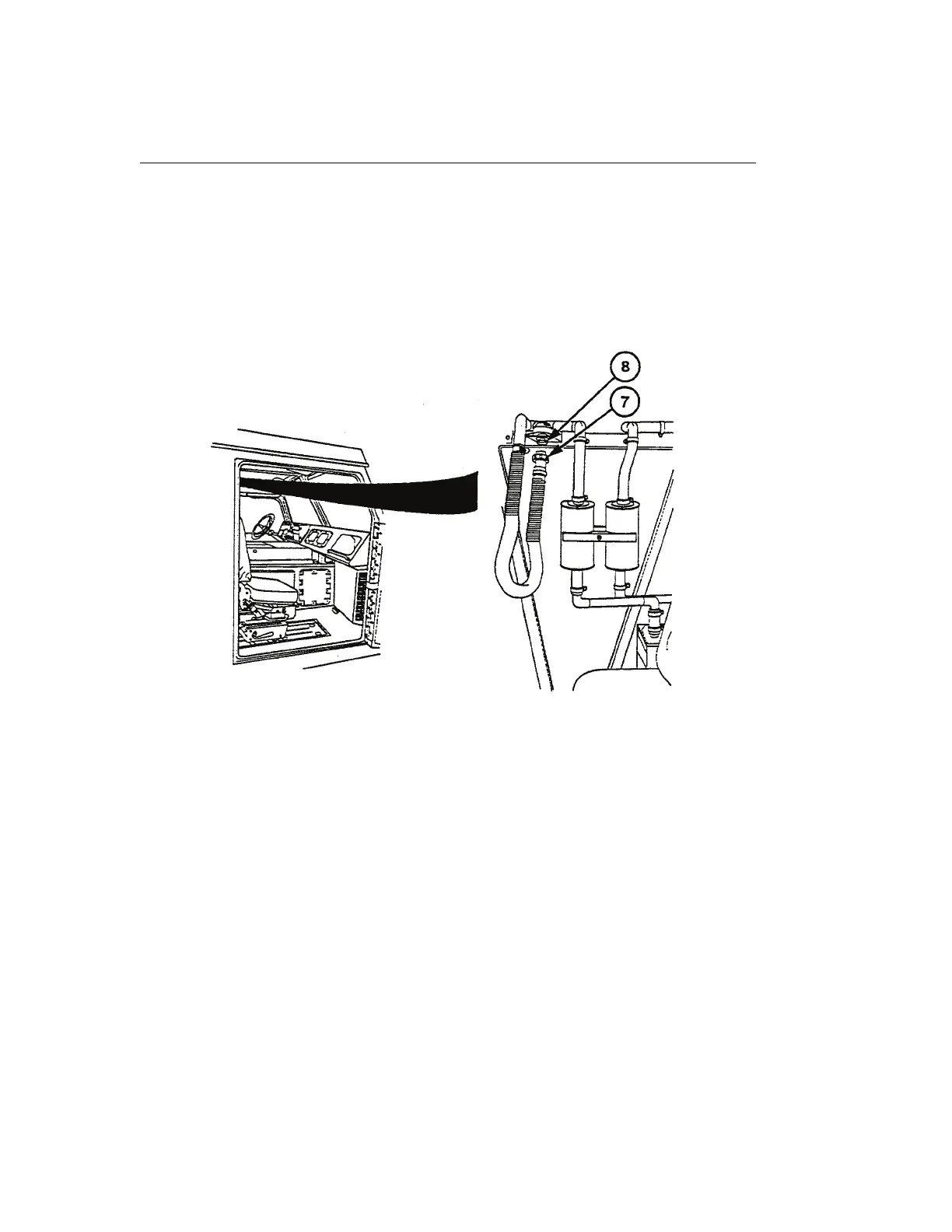

Figure 4.
7. Connect air duct hose breakaway socket (7) to canister (2) of protective mask (1) and
breathe through mask.
