TOW BAR DISCONNECTION - Continued
28
22
25
27
29
23
32
26
27
26
22
25
24
31
30

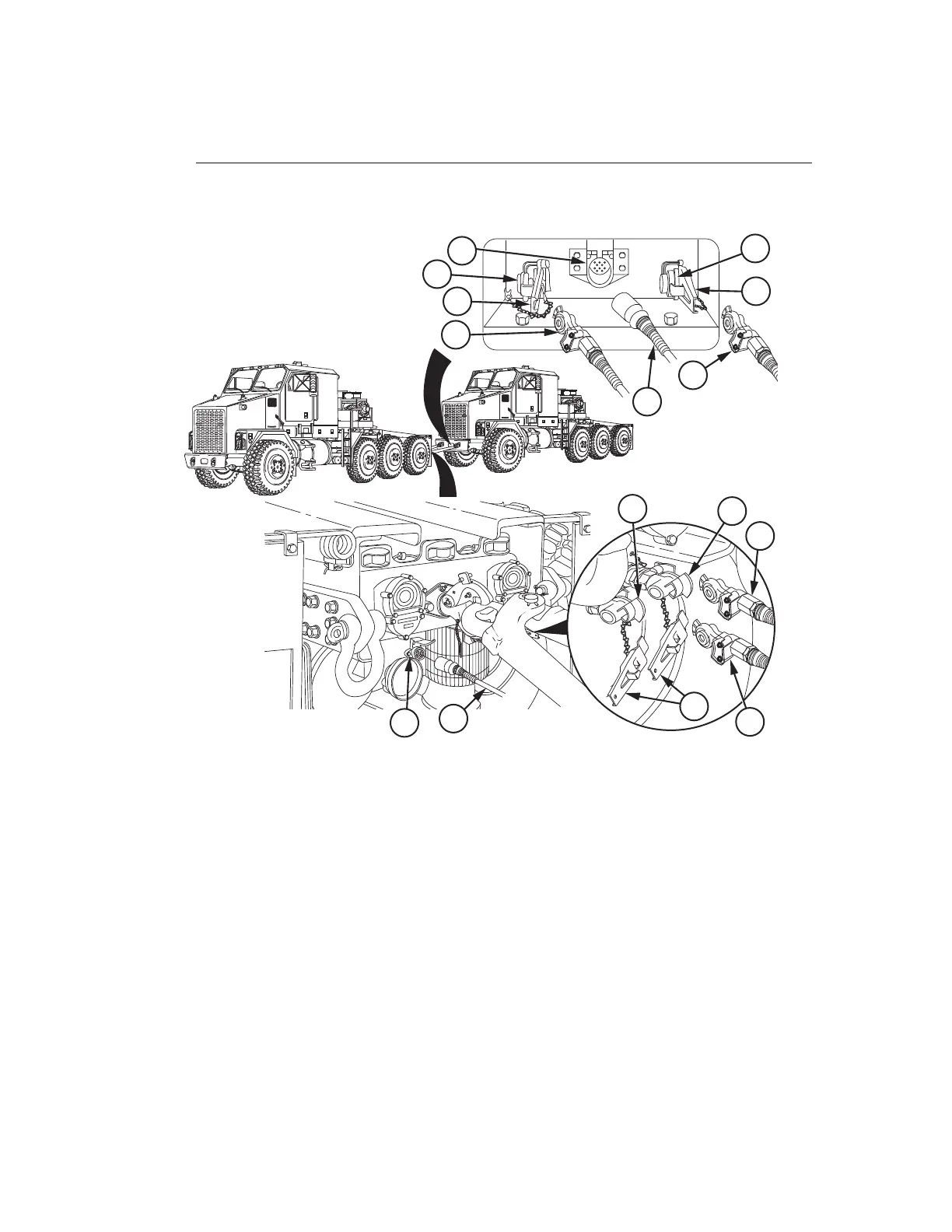

Figure 12.
10. Disconnect emergency intervehicular air hose (25) from rear emergency gladhand
(32) of towing vehicle and from front emergency gladhand (29) on disabled vehicle.
11. Disconnect electrical cable (22) from 7-pin connectors (23 and 24).
12. Install dummy couplings (27) on gladhands (28 and 29) of disabled vehicle.
13. Install dummy couplings (30) on gladhands (31 and 32) of towing vehicle.
NOTE
Go to Step (16) if intervehicular air hoses and electrical cable were used.
14. Stow air hoses (26 and 25) and electrical cable (22) in stowage box.
15. Manually apply spring brakes. (WP 0080)
TM 9-2320-360-10 0070
0070-13
