Display Error/warning Cause Possible measure
Fault on an actuator (seat
function adjustment
motor), defective actuat
or flashes
e.g.defective cable,
loose plug connection to
actuator
Check cabling/plug connections to
defective actuator

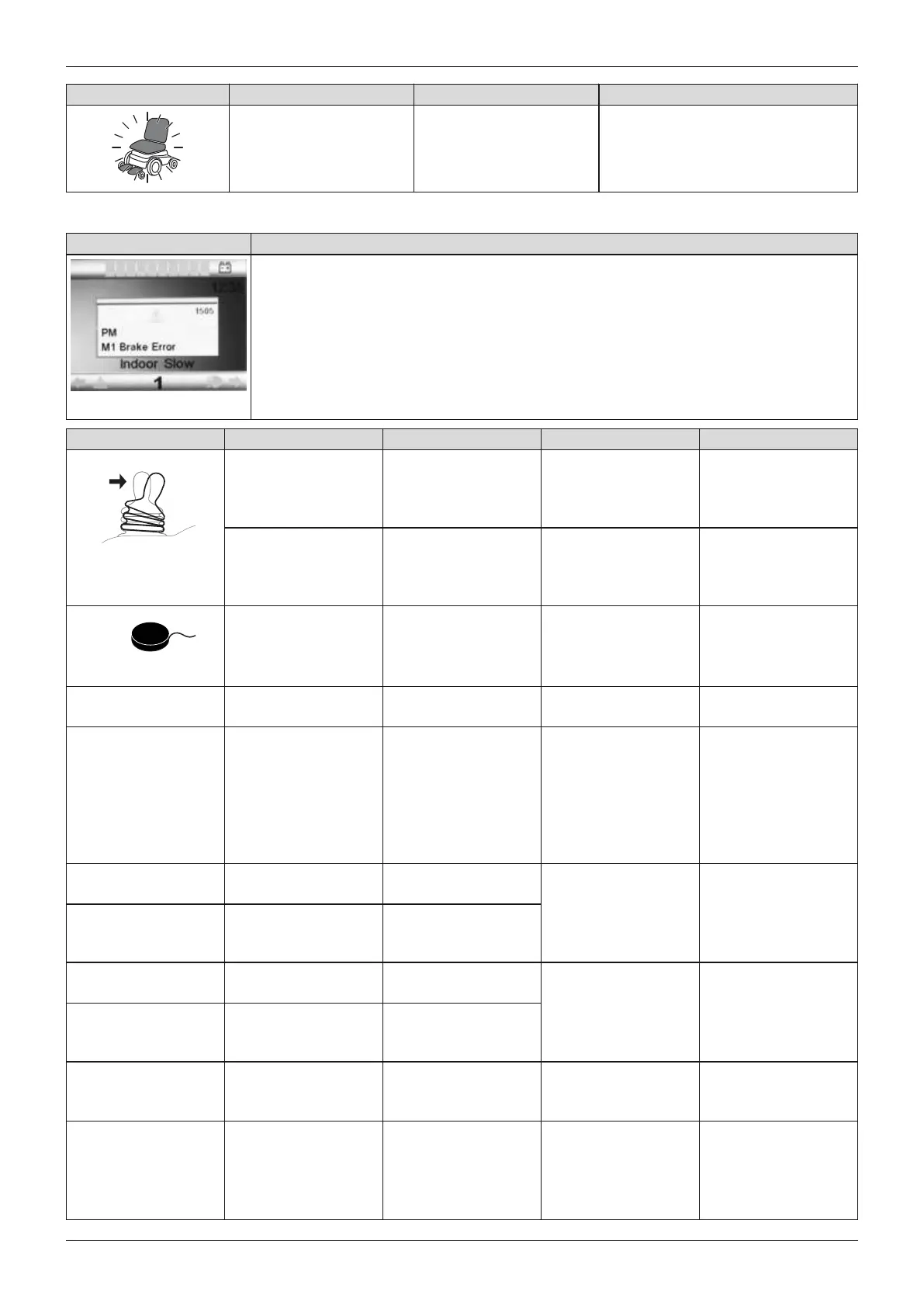

Errors and warning messages in the message window on the CJSM control panel
Display Contents
Errors or warning messages appear in the message window with the following inform
ation:
• Top left: Affected module (e.g.PM = Power Module, JSM = Joystick Module)
• Bottom left: Brief error description (e.g.M1 Brake Error)
• Top right: Error code (4-digit)
INFORMATION: See the following table for the error messages.
INFORMATION: Some error messages are displayed with pictograms. See the
start of the following table.
Error message Error no. Contents Cause Possible measure
Without (pictogram
only)
Joystick warning
(Center Joystick)
Joystick not in home
position when the
unit is turned on
Move the joystick to
the zero position
before switching the
unit on
Without (pictogram
only)
Defective joystick
(Joystick Error)
Message continues
to be displayed des
pite moving joystick
to centre position
Contact specialist
dealer
E-Stop
Without (pictogram
only)
Emergency stop (red
symbol)
Severe control
ler/handheld control
device and/or drive
motor malfunction
Check cabling/plug
contacts
Contact specialist
dealer
Low Battery (None) Battery undervoltage Battery deep dis
charge
Charge as soon as
possible
High Battery (None) Battery overvoltage Voltage too high
Loose battery con
tacts
Continue driving
slowly
Check cabling/plug
connections; if error
message persists,
contact specialist
dealer
M1 Brake Error 1505 Brake error on left
motor
M2 Brake Error 1506 Brake error on right
motor
e.g.defective plug
connection, cable
break
Defective brake
Check plug connec
tions and cable to
brake
If error persists: con
tact specialist dealer
M1 Motor Error 3B00 Left motor not con
nected
M2 Motor Error 3C00 Right motor not con
nected
e.g.defective plug
connection, cable
break
Defective drive motor
Check plug connec
tions and cable to
motor
If error persists: con
tact specialist dealer
Inhibit Active 1E01; 1E20; 1E21;
1E22; 1E23
Driving function
blocked due to
external factors
Battery charger may
be connected
Disconnect the bat
tery charger
Brake Lamp Short (None) Short circuit in brake
light electrical circuit
e.g.defective plug
connection, cable
break
Defective brake light
Check plug connec
tions and cable to
brake light
If error persists: con
tact specialist dealer
108
Maintenance and repair
490E75=1_C
