USER'S MANUAL
General instructions for use
(Rev. 0) I-Max Touch (110-120V)
113
• The image shows the upper vertex of the condylar rami of
different heights;

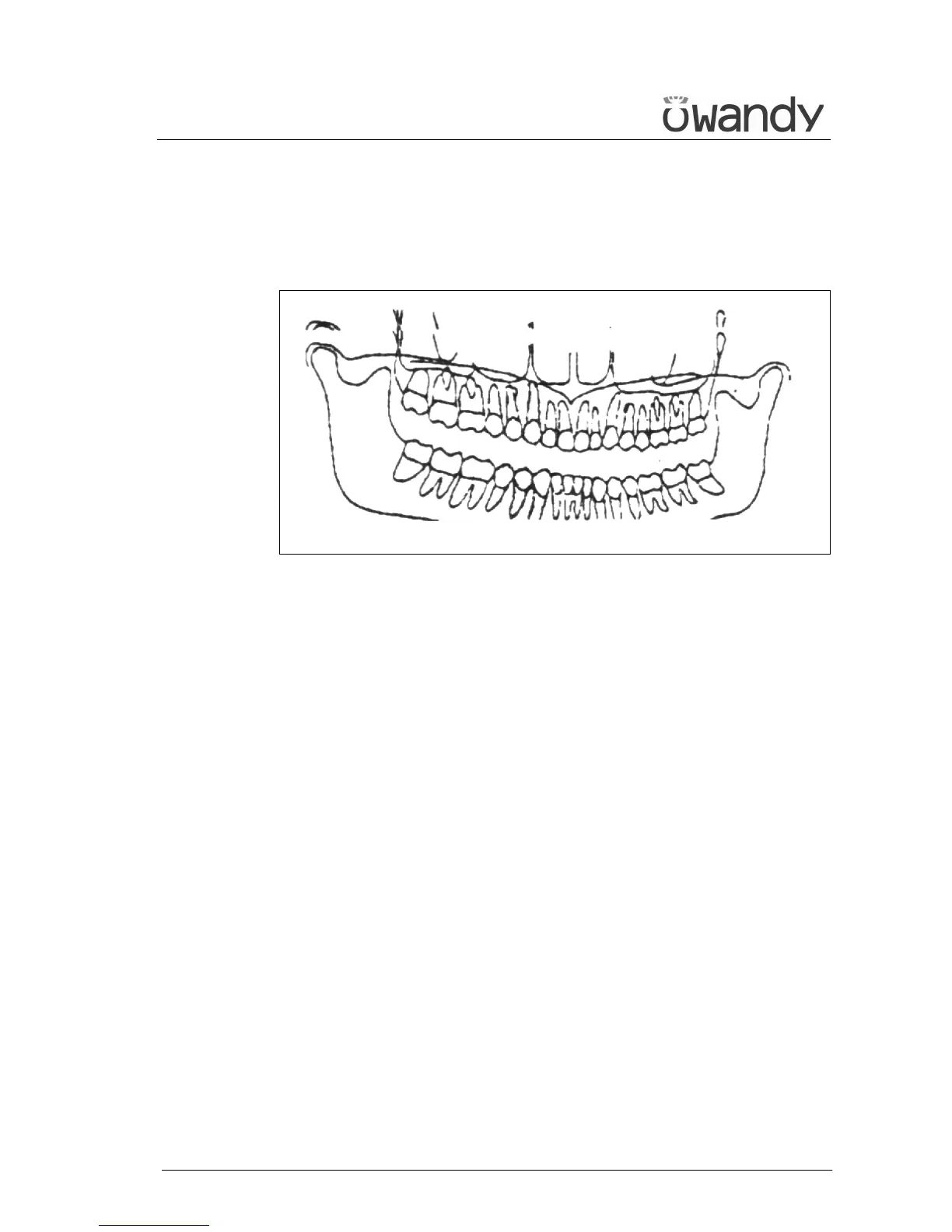

Figure 23 shows the result of this error.
Figure 23
Possible causes:
The sagittal medial plane is not vertical. This can be the patient’s
problem, but if the defect is always present, check the laser beam.
Solution:
Verify that the laser beam is vertical; this check can be performed
very quickly by using the laser beam and verifying that it falls on the
centre of the chin support; remove the chin support itself and check
that the beam falls in the centre of the two holes used to fix the
support itself.
If not, a possible cause can be the imperfect horizontality of the chin
support arm, that must be adjusted using the relevant screws.
