USER'S MANUAL
General instructions for use
I-Max Touch (110-120V) (Rev. 0)
42
6.4 Positioning of chin support
The I-Max Touch is equipped with two types of supports: a standard
support fitted with a special removable appendix for edentulous patients,
and a lower one, for SINUS/TMJ examinations.
The standard chin support must be used, in Panoramic mode, with all
the people who can assure a tight grip on the centring bite. The appendix
for edentulous patients must be applied only for patients who cannot
assure a tight grip on the bite or are not co-operating and might move
during the examination.
For the SINUS/TMJ examinations, there is special support that, being in
a lower position, ensures a better centring of the interested area in the
rays field.

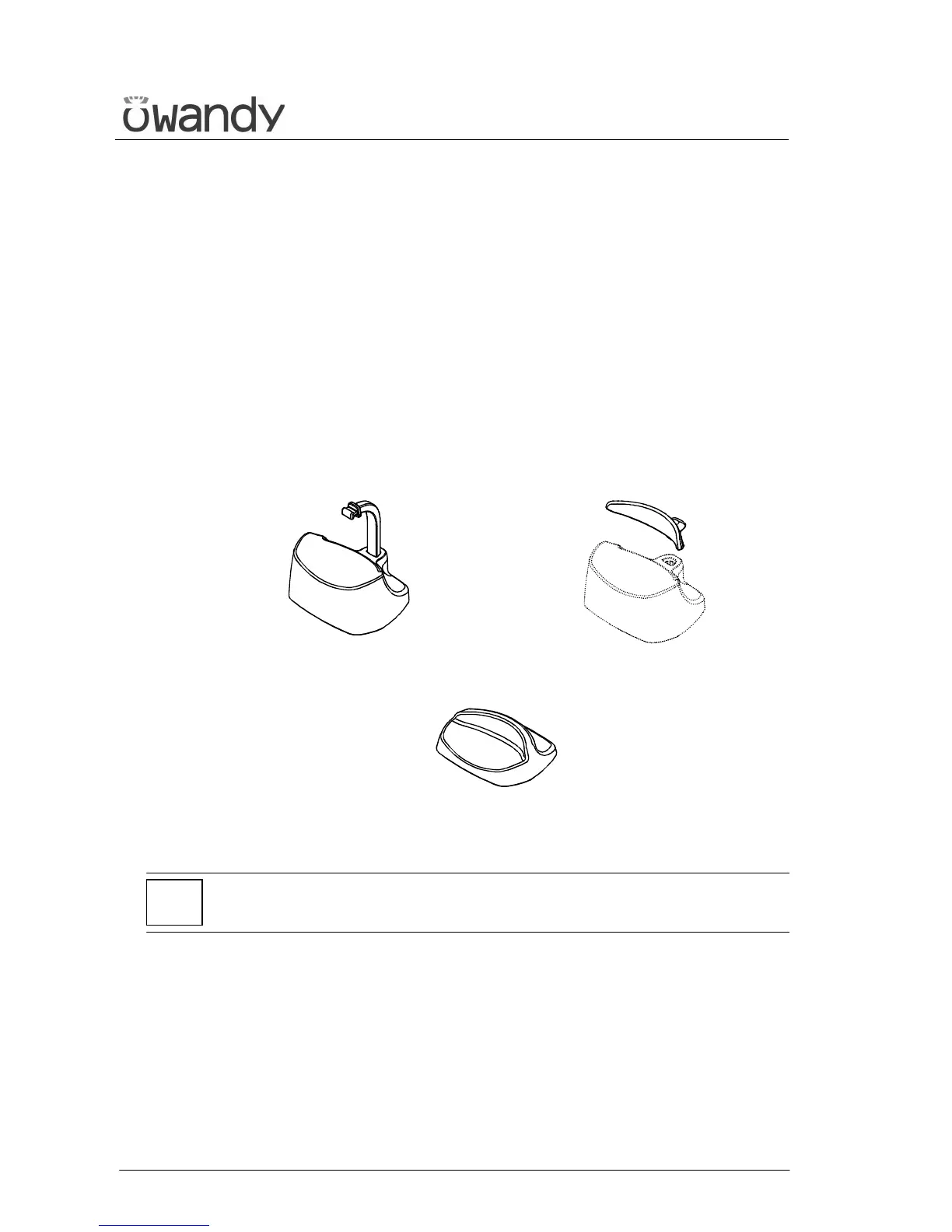

Panoramic standard
chin support
Edentulous patients
appendix
SINUS/TMJ
chin support
NOTE:
Always remove the chin support when performing Ceph examinations.
*
