6.12.1.1 Errors due to poor positioning of patient
• The image shows the anterior teeth with reduced
magnification and not well defined. The cervical spine is
shown as evident white shadow.
In addition, on the molar zone there are too many shadows,
disturbing the reading.

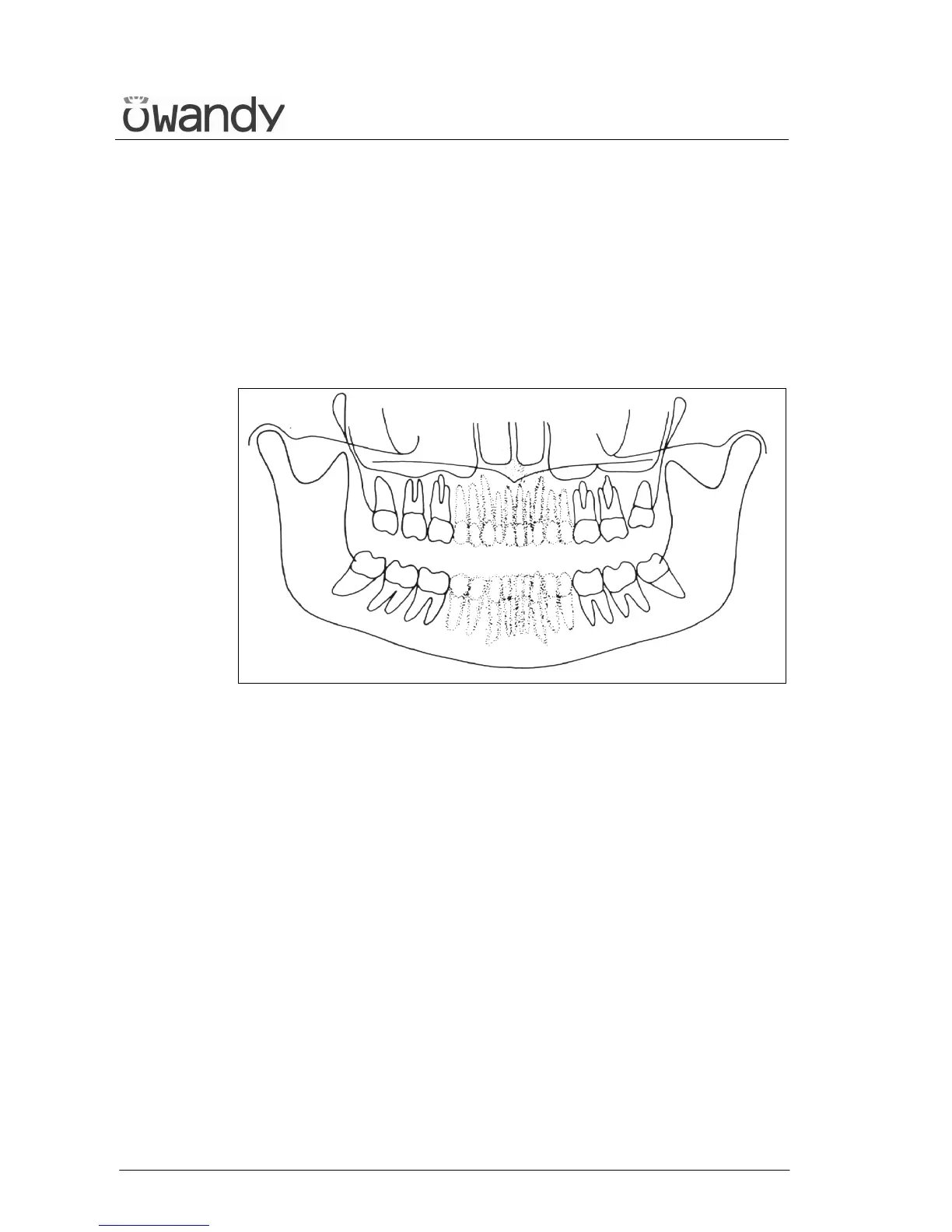

The resulting image is similar to the schema shown on Figure 20.
Figure 20
Possible causes:
The patient it positioned too much forward.
Solution:
Check the patient's positioning by using luminous beams.
If, after the correct positioning of the patient, the problem still
remains, check the alignment of the centring laser lights, simply
switching on the centring lights and checking their position.
The sagittal medial luminous beam must hit the centre of the chin
support.
