6.6.4 TMJ open mouth
6.6.4.1 Preparation of the patient
1. The patient must be prepared following the operations described in
paragraph 6.6.3.1.
The following message will be displayed:
I N S T R U C T P A T I E N T
T O O P E N M O U T H !
2. Press the key "Patient Entrance" (6) to confirm.
The following message will be displayed:
x x k V x x m A 9 . 7 0 s
T M J O / C - > O P E N
x = value defined by the settings
3. Position the patient again if he has been removed from the centring
device. Tell him to open his mouth (helping him to keep in position
using appropriate mechanical devices - not supplied - if necessary)
and keep his chin touching the SINUS/TMJ chin support rest.
1
3
4
45

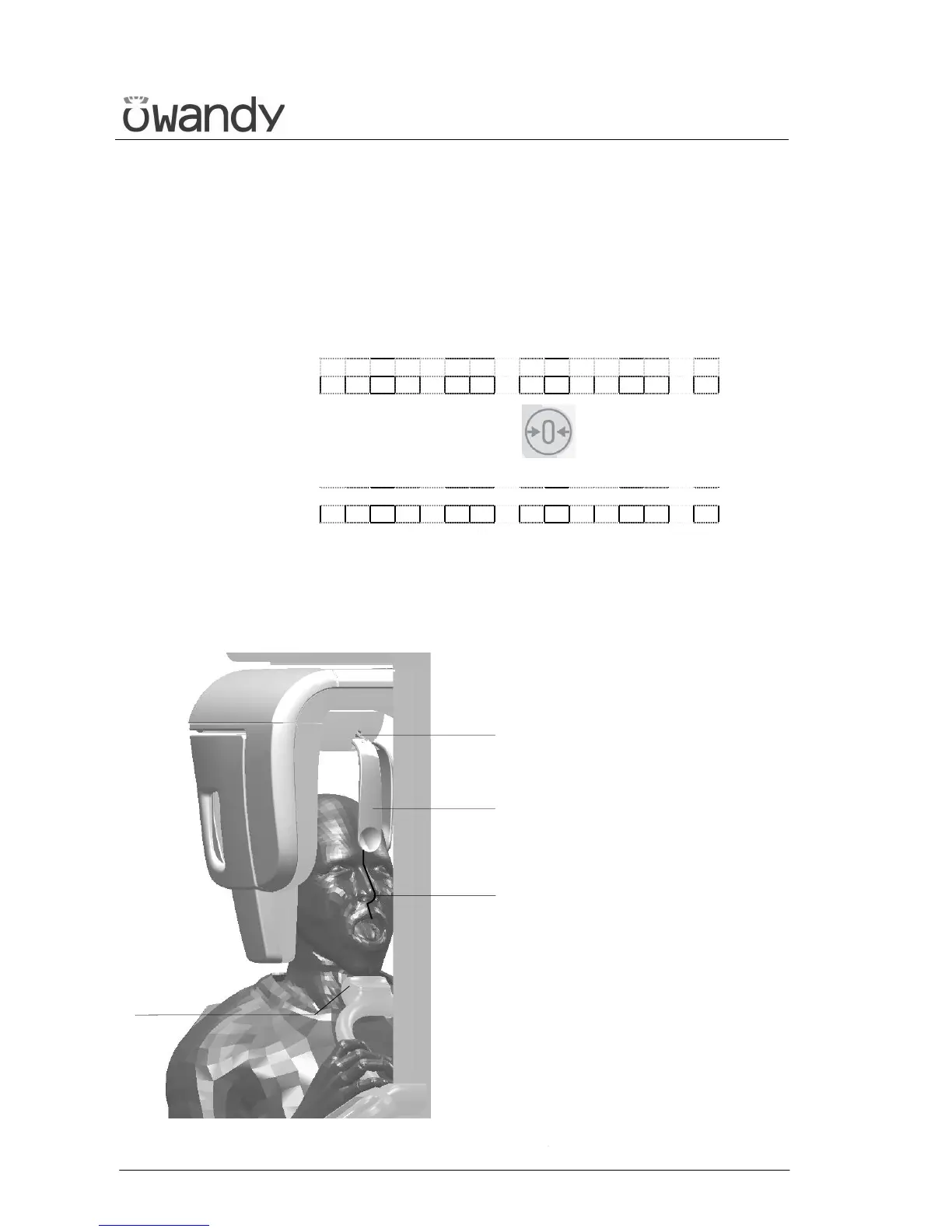

Figure 13 - Open mouth examination positioning
Legend of Reference Lines
45 Sagittal medial line
Legend positioning devices and
patient centring
1 SINUS/TMJ chin support
3 Temple clasps - Forehead
support
4 Temple clasps - Forehead
support release knobs
