IPA 40 (IPA,<space>,40) sets a
transmission ratio of 40% on channel 1, 60%
on channel 2.
“80.0” for a transmission ratio of 80.0%
on channel 1, 20.0% on channel 2

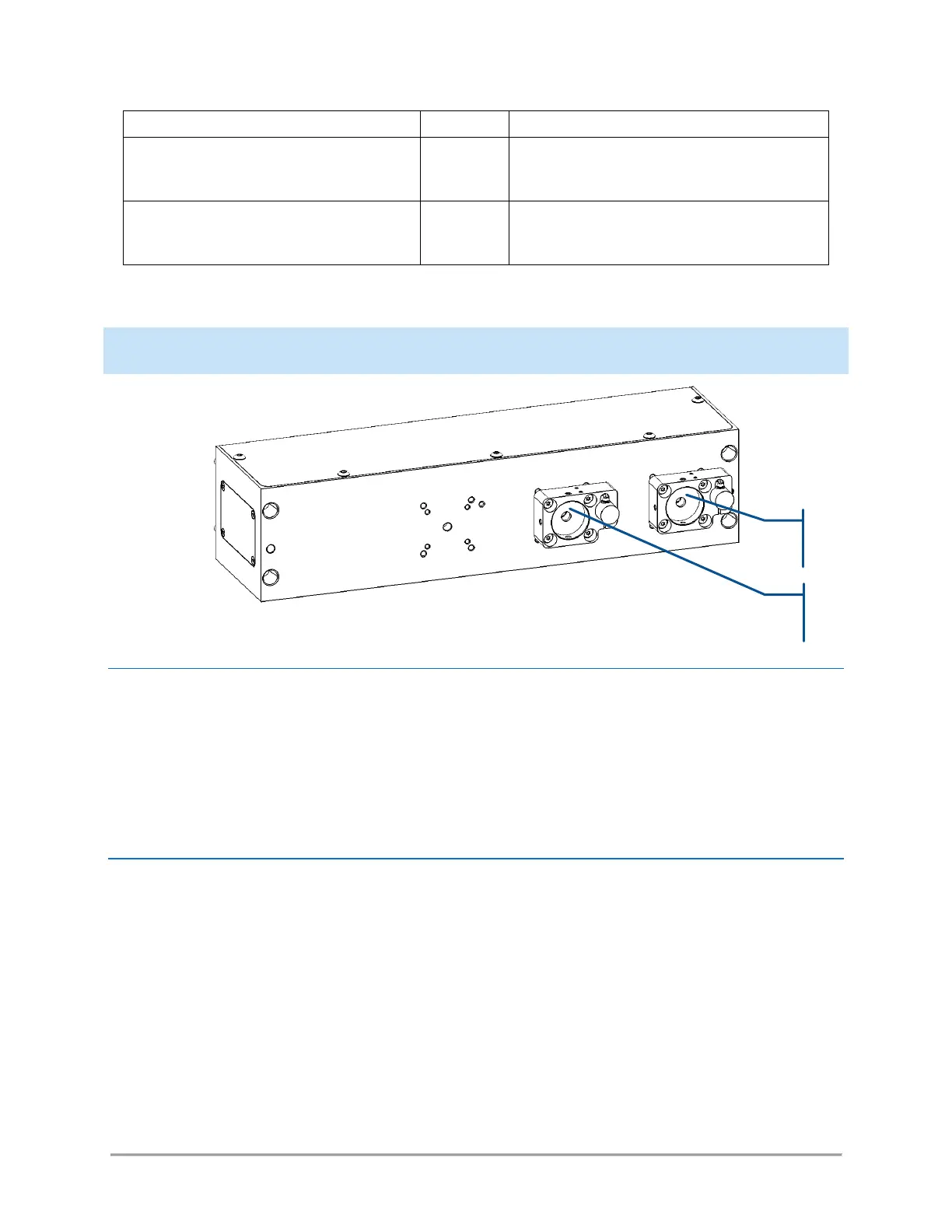

7-2 Motorized flip-mirror MDL-FLPM
GENERAL DESCRIPTION
This module acts on the output channel of the connector. The beam entering the input port can either exit
through channel 1 unaffected, or be entirely steered towards channel 2. Switching between two channels
typically occurs in less than 0.5 second.
Each channel is also fitted with an electro-mechanical shutter.
OPERATION
This module gives access to two functions:
- The mirror,
- The shutters present on each of the output channels
The galvanometric mirror accepts two positions:
- On its “High” position the beam is sent as such through the output port of channel 1,
- On its “Low” position the beam is steered towards channel 2
To activate the mirror using the Input/Output connector, send a digital signal (0V for “Low”, +5V for “High”)
on pin number 24.
