Panasonic CPC-EX - Figure 5-13. Extension Cord Connection to the VAU; Figure 5-14. Voice Announce Unit (VAU) Installation

Section 300-Installation Chapter 5. Peripheral Equipment
DBS-2.3/9.2-300 DBS Manual - Revised April 2000 5-25

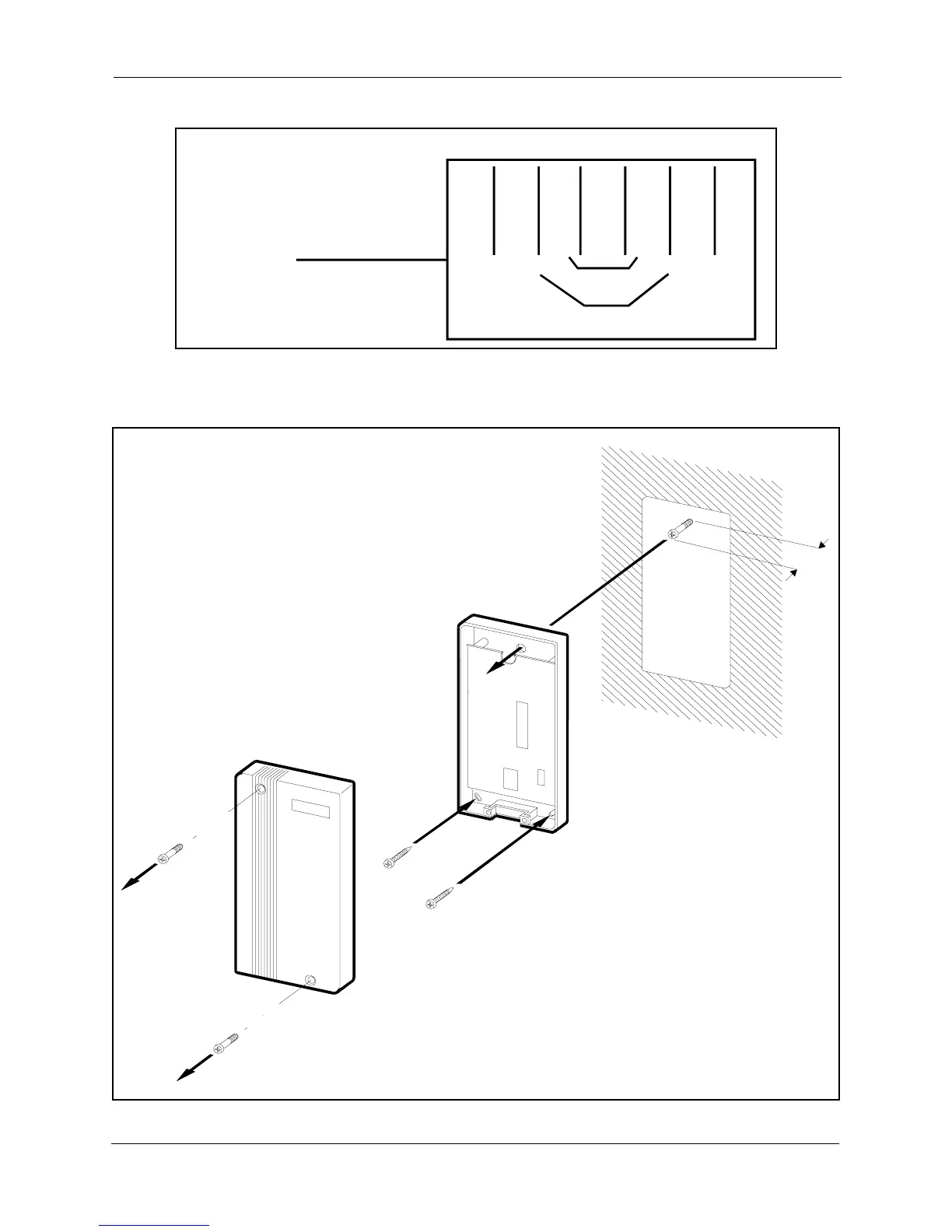

Figure 5-13. Extension cord connection to the VAU
6. Install the cover on the VAU.
Figure 5-14. Voice Announce Unit (VAU) installation
Port 1
BK R G Y
Port 2
CN1 on
the bottom
of the VAU
SW 2
CN1
SW 1
5/16 in
Voice Announce U nit
(VB-43708)
