Section 300-Installation Chapter 4. Trunks and Lines
DBS-2.3/9.2-300 DBS Manual - Revised April 2000 4-23
3. Install the T1 MDF (main distribution frame) card in the top of the
cabinet as shown in Figure 4-7.

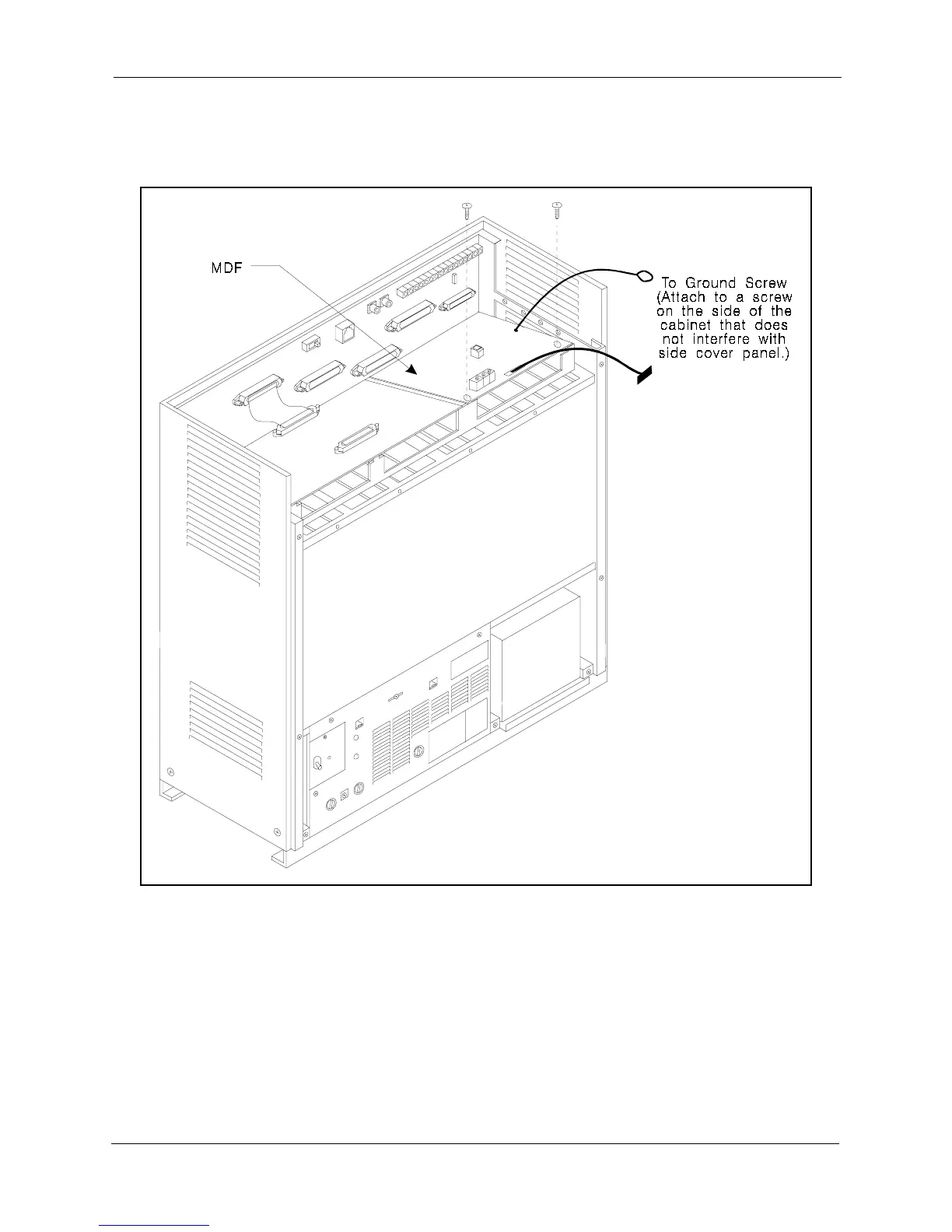

Figure 4-7. T1 MDF card installation
