Panasonic CPC-EX - Figure 3-18. Test Telephone Connection

Section 300-Installation Chapter 3. Cabinet Installation
DBS-2.3/9.2-300 DBS Manual - Revised April 2000 3-19

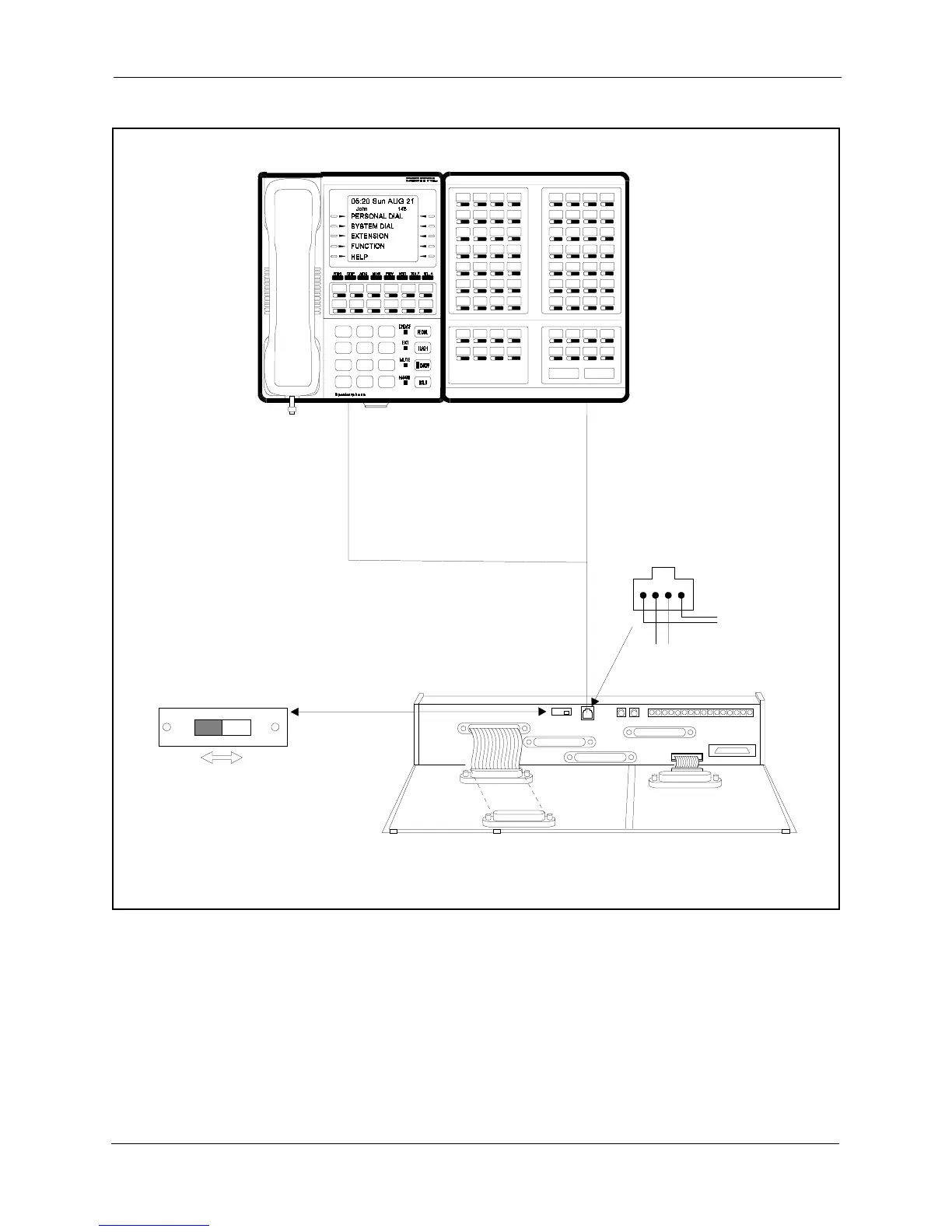

Figure 3-18. Test telephone connection
TestPhone D SS C onsole
CN3
To the
telephone
To the
DSS/72
Tw o-C onductor
C able(Port7)
Tw o-C onductor
Cable(Port8)
ST=Ports7and8
are connected through
the M D F
TEST=Ports7and8
are connected through
CN3
ST TEST
SW 1
CN11
CN12
CN5
CN13
CN3
CN14
CN15
CN1
CN1
CN2
CN4
Note:Port7mustbe
assigned as extension
101 and the D SS/72
assigned as telephone
type13fortheDSS/72
tooperate.
