Chapter 5. Peripheral Equipment Section 300-Installation
5-32 DBS Manual - Revised April 2000 DBS-2.3/9.2-300

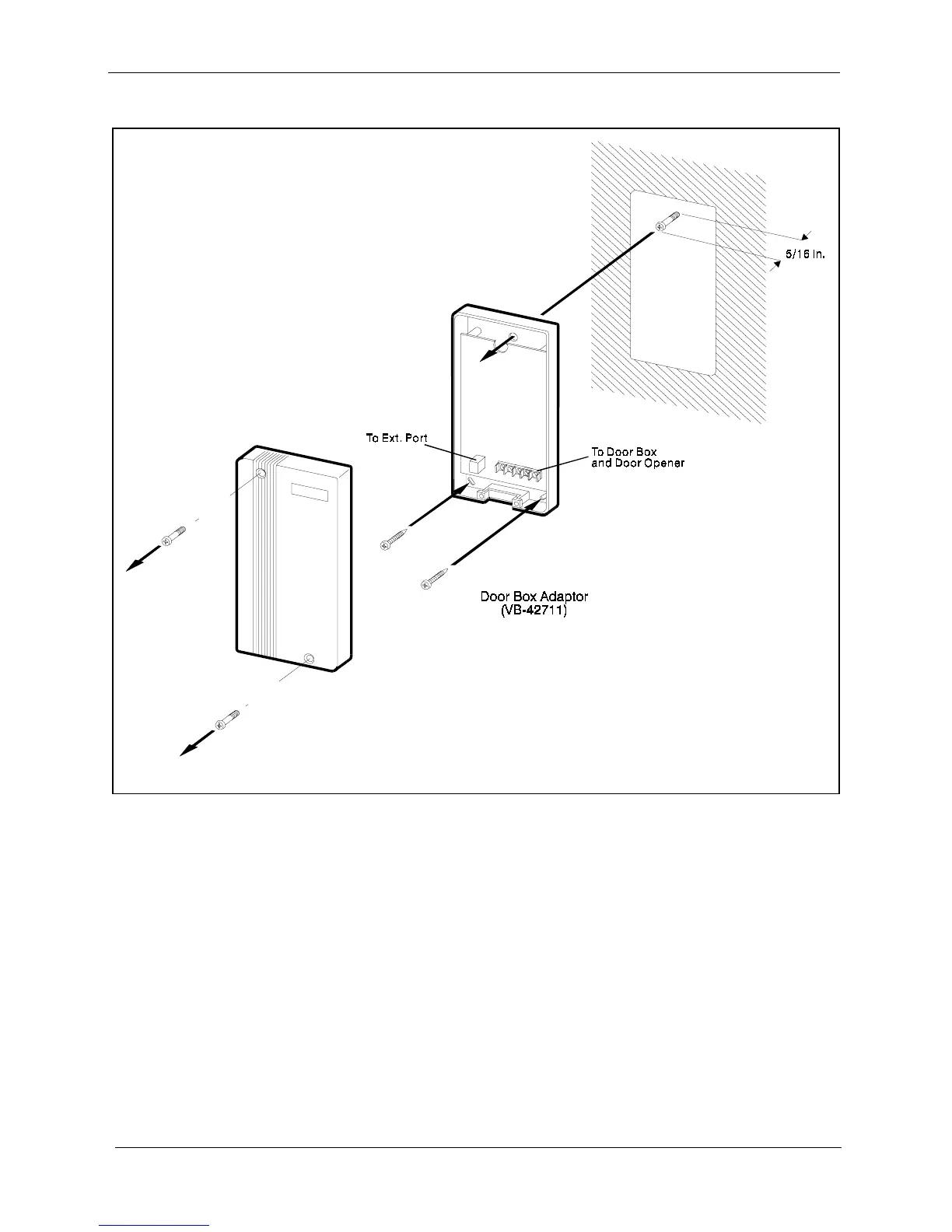

Figure 5-18. Installation of the door box, door opener
4. Connect the extension line to the Door Box Adaptor, as shown in Figure
5-19.
Contact Ratings for
Opener
120V AC: 0.3 amps
30V DC: 1 amp
