Section 300-Installation Chapter 3. Cabinet Installation
DBS-2.3/9.2-300 DBS Manual - Revised April 2000 3-3
Wall-Mounting the Cabinet
Guidelines
• The DBS is shipped with the cover installed to protect components. Before
wall-mounting the cabinet, remove the cover.
• Handle the cabinet carefully to avoid damage.
Installation
1. Remove the eight screws from the front and sides of the cabinet.
2. Take the front cover off by pulling it from the bottom and lifting it up.
3. Take the side covers off by sliding them up, then away.

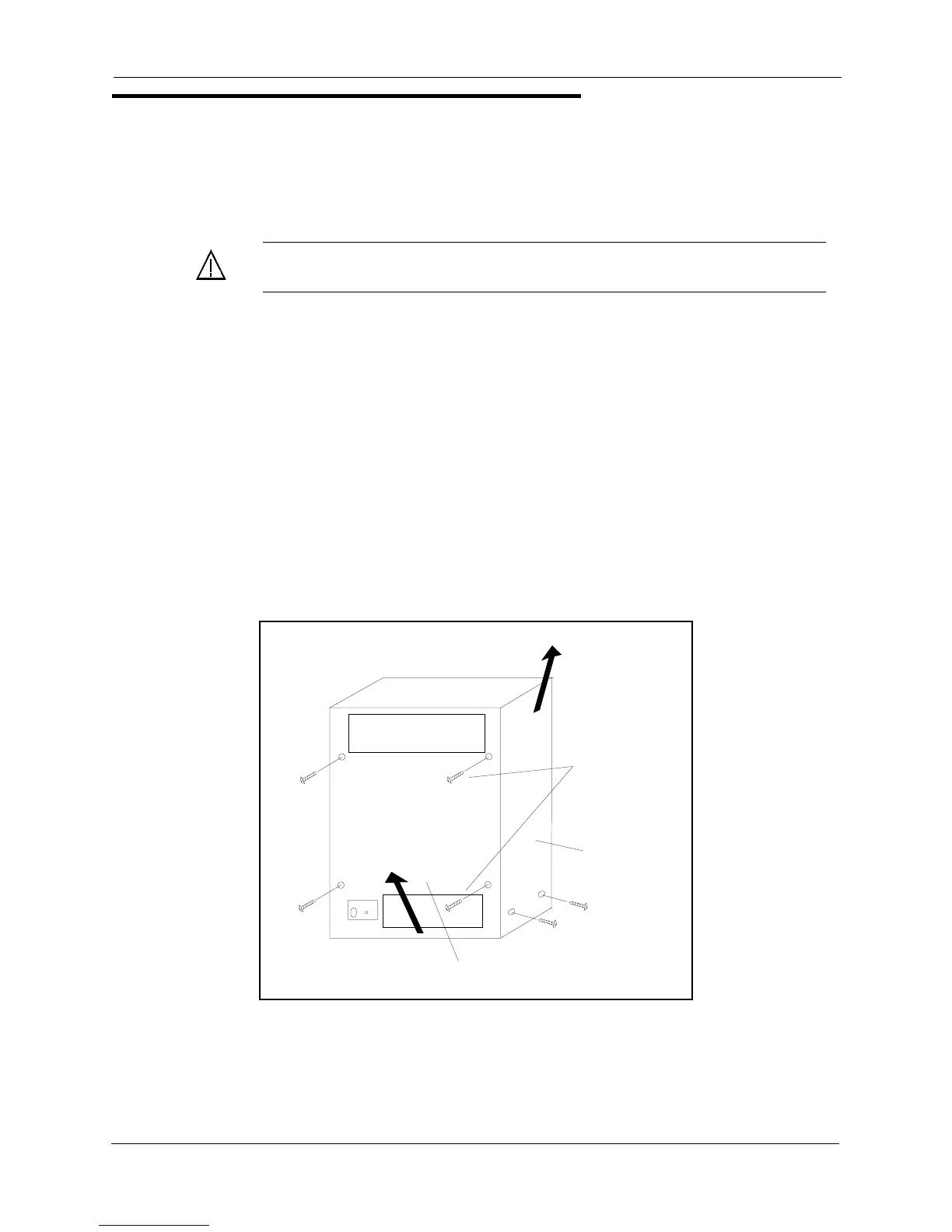

Figure 3-1. Cover removal
Caution:
Always turn the power switch
OFF
before beginning installa-
tion.
Screw s
Front C over
Side C ove
