Panasonic CPC-EX - Figure 3-12. Wall-Mount Adaptor Replacement; Figure 3-13. Handset Guide Insertion for Wall-Mounting, Key Phone

Chapter 3. Cabinet Installation Section 300-Installation
3-14 DBS Manual - Revised April 2000 DBS-2.3/9.2-300
3. Turn the wall-mount adaptor around and re-attach it to the phone.

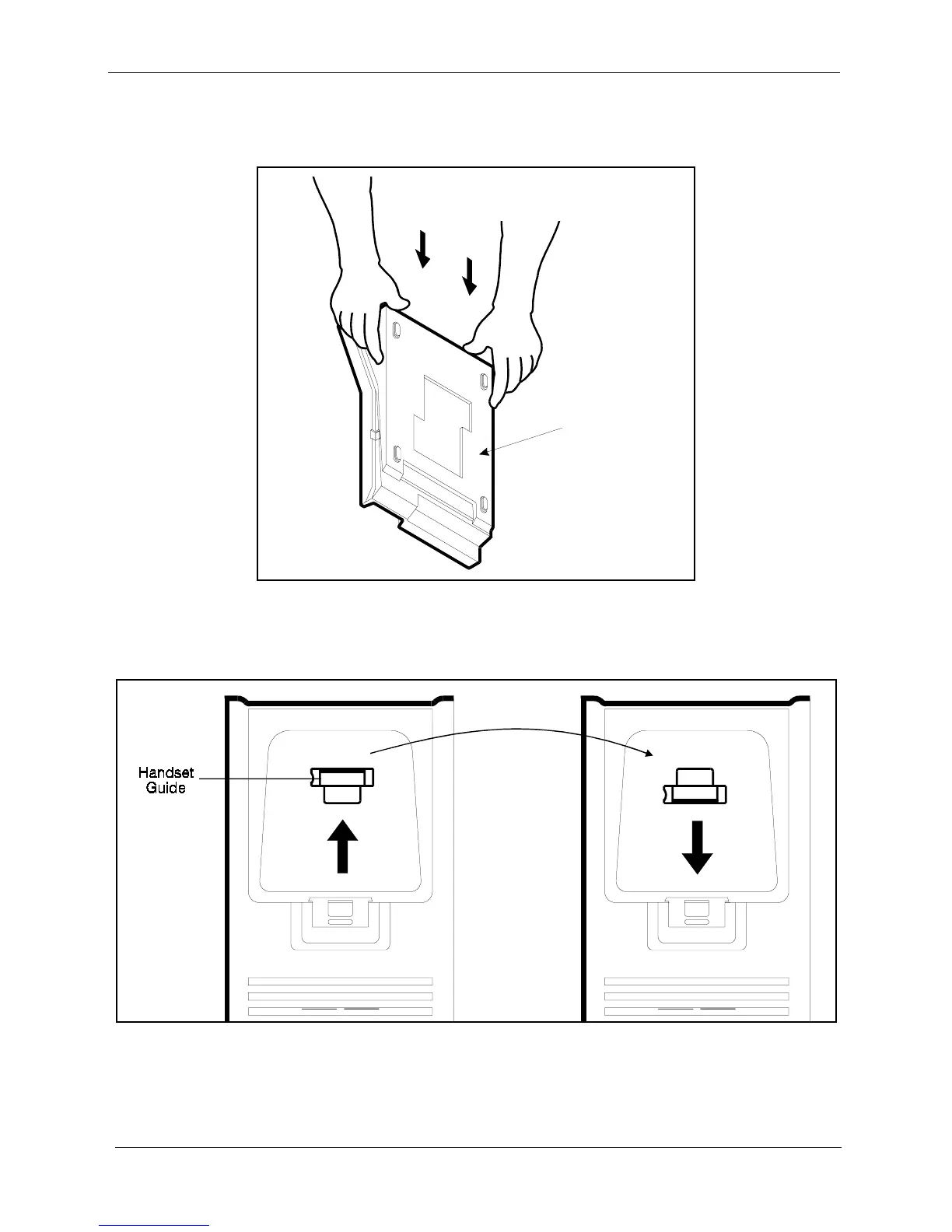

Figure 3-12. Wall-mount adaptor replacement
4. Remove the handset guide with a small screwdriver, turn it over, and
reinsert it into the phone.
Figure 3-13. Handset guide insertion for wall-mounting, key phone
Wall-M ount
Adaptor
