Section 300-Installation Chapter 2. System Overview
DBS-2.3/9.2-300 DBS Manual - Revised April 2000 2-3
Cabinet Description
Panasonic’s Digital Business System (DBS) is a hybrid telephone system that
can be used as a key service unit (KSU) or a private branch exchange (PBX).
The DBS cabinet includes an AC power supply, backup batteries (optional),
dedicated card slots, and a central connector panel for line and trunk
connections.

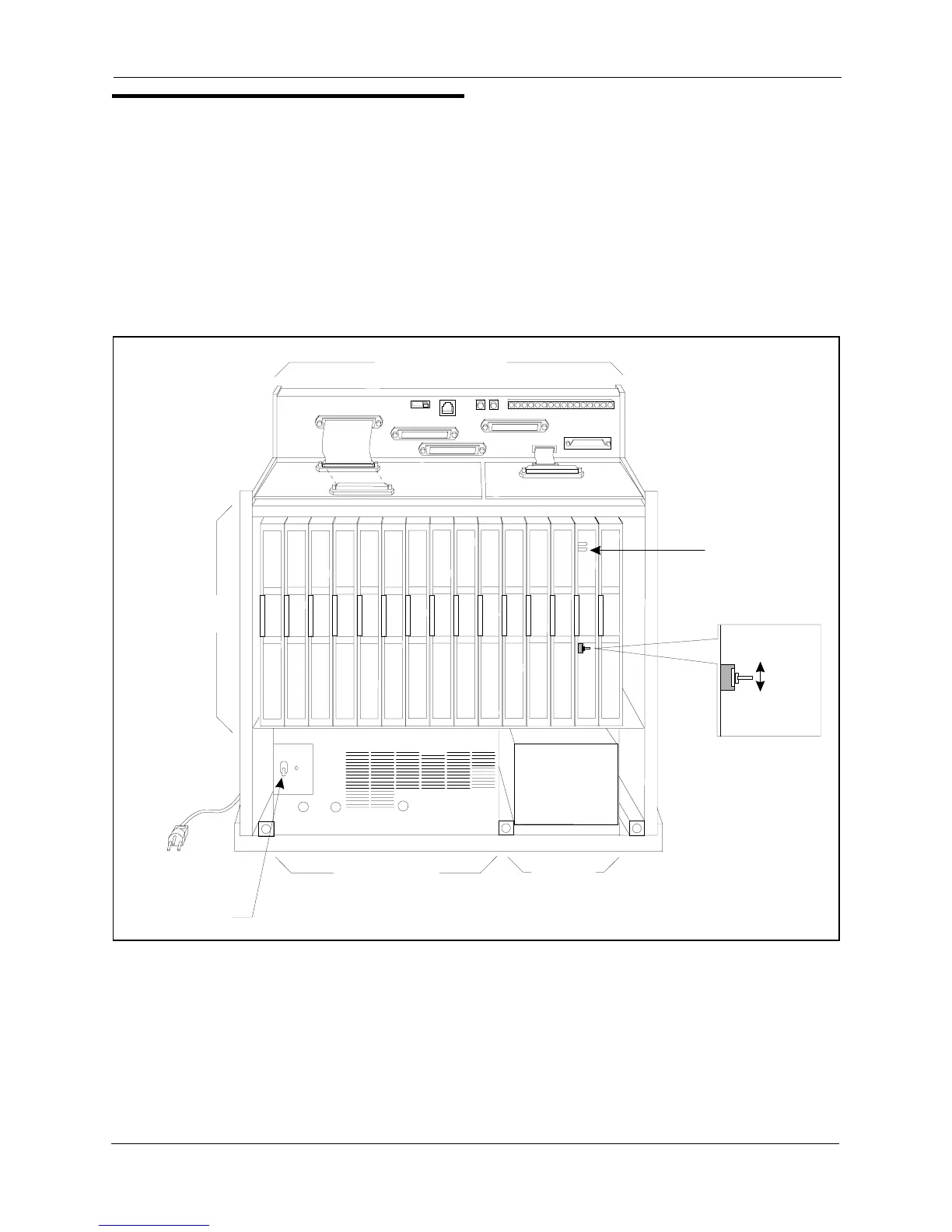

Figure 2-1. The DBS cabinet (DBS 96 shown)
In addition to trunk and line connection, the connector panel is used to
connect peripheral equipment such as paging speakers, external ringers, and
music-on-hold/background music sources. Figure 2-2 on page 2-4 shows
trunk and line connections, as well as some peripheral connections.
Peripheral connections are covered in detail in Chapter 5, “Peripheral
Equipment.”
CN11
CN12
CN13
CN14
CN15
CN6
SW 1
CN3
TRK1 TRK2 TRK3 EC1 EC2 EC3 EC4 EC5 EC6 EC7 EC8 EC/TRK SCC CPC AU X1 AUX2
CN5 CN4
CN2
CN1
CN1
C onnector Panel
Card
Slots
Power Supply
Power Switch
Batteries
STATUS
LED
RAM HOLD
RAM CLR
