Chapter 4. Trunks and Lines
Section 300-Installation
4-22 DBS Manual - Revised April 2000 DBS-2.3/9.2-300

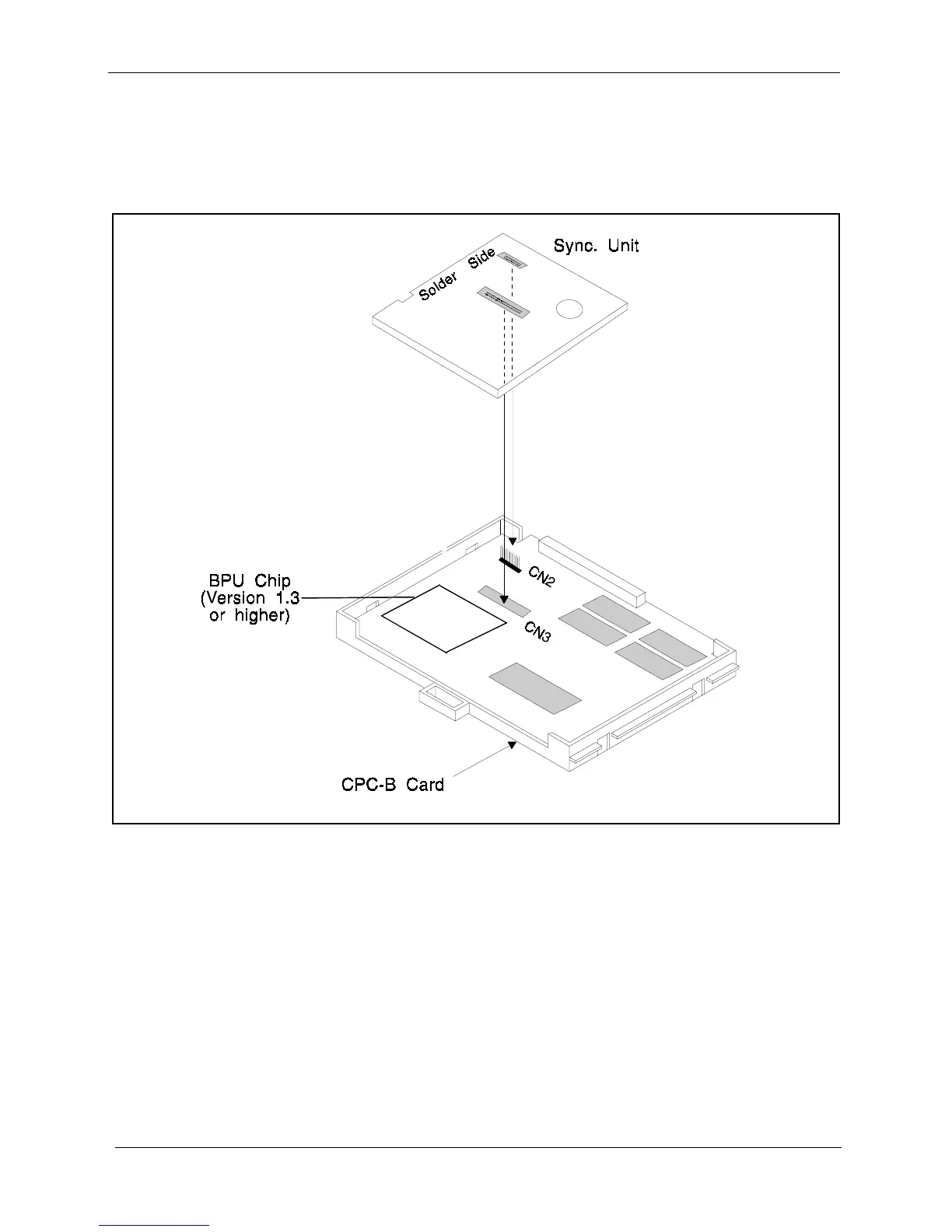

2. Attach the Sync Unit to the CPC-B card.
Note:
Before attaching the Sync Unit, insert the three spacers provided
with the unit and remove the jumpers from CN2 of the CPC-B card.
Figure 4-6. T1 Sync Unit installation
