Chapter 6. Double-Cabinet Systems
Section 300-Installation
6-10 DBS Manual - Revised April 2000 DBS-2.3/9.2-300
Installation
1. Install the trunk and extension cards according to the layouts shown in the
Figures 6-1 through 6-6.
Note:
The port numbers for each slot are fixed.
2. If you are using two MFR cards, cut Strap S3 on the second card.

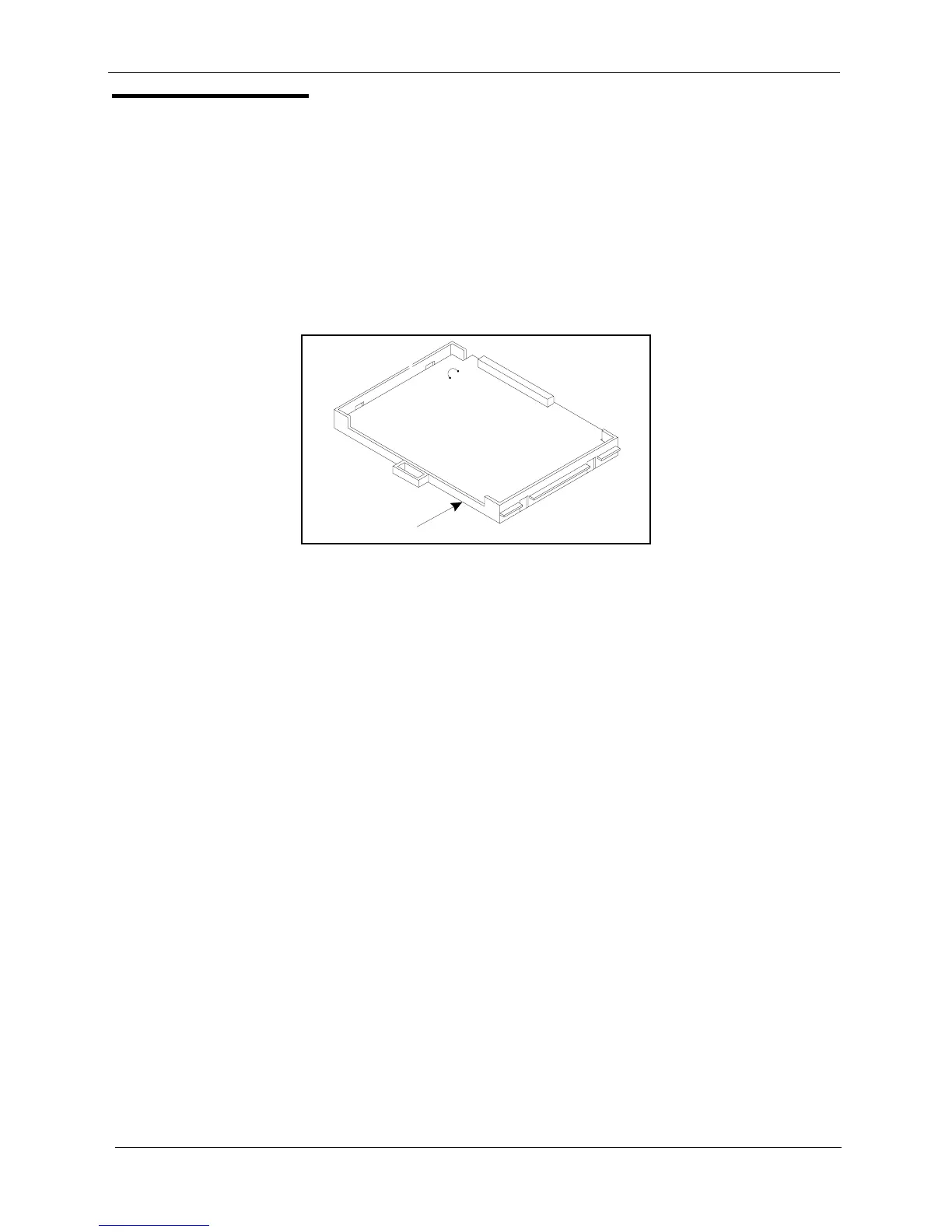

Figure 6-7. Strap 3, MFR card
3. Using the cables provided, connect the CBL-M card in the master cabinet
to the CBL-S card installed in the slave cabinet.
Note:
The EMI filter must be installed as close to the cabinet as possible,
as shown in Figure 6-8 on page 6-11.
MFR Card
S3
