Section 300-Installation Chapter 6. Double-Cabinet Systems
DBS-2.3/9.2-300 DBS Manual - Revised April 2000 6-11

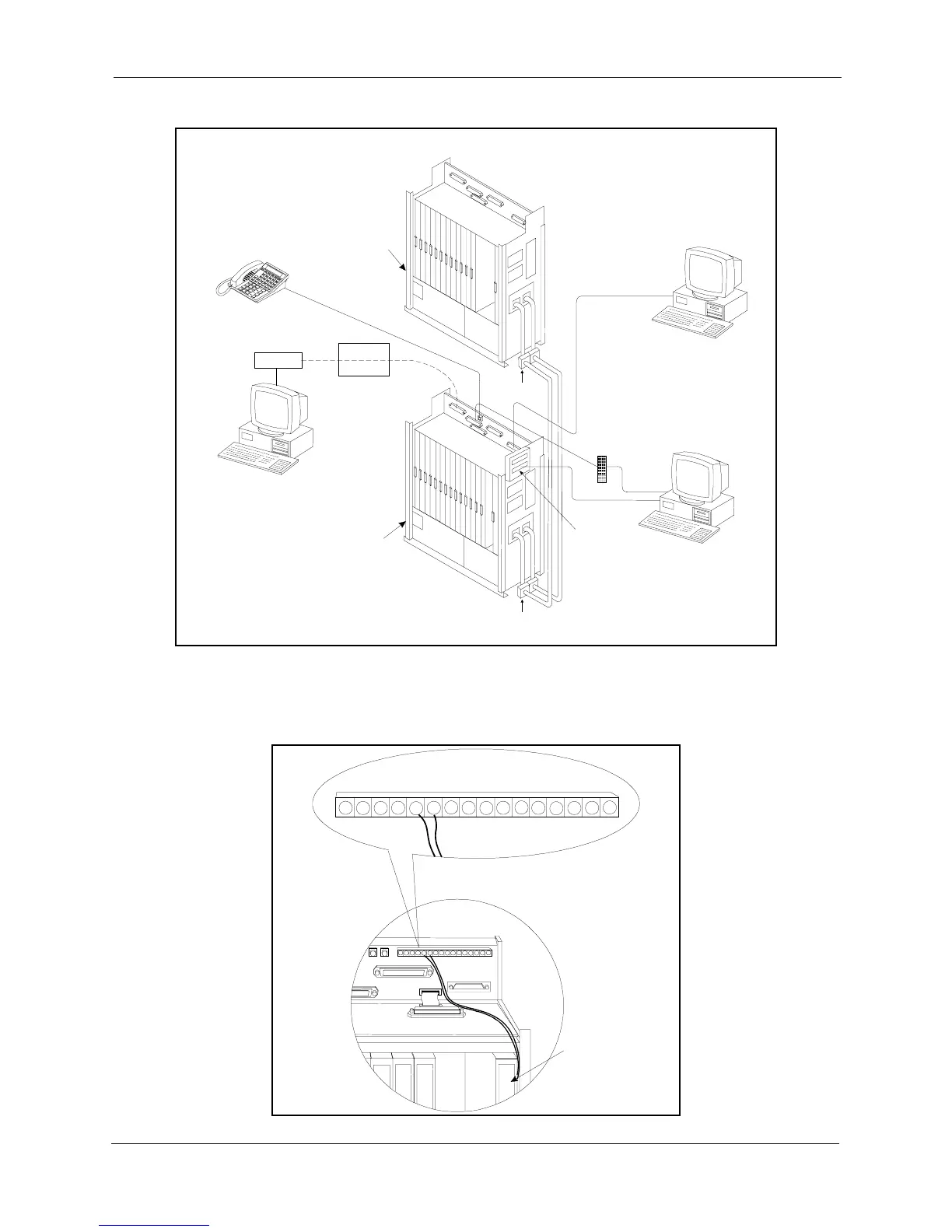

Figure 6-8. Double-cabinet installation
4. Connect two 24V power supply cords from the CBL-S card to the 24V
and GND terminals on CN2 of the Connector Panel of the slave cabinet.
Figure 6-9. CBL-S to Connector Panel connection, slave cabinet
Modem
Programming Term ina
l
or
SM DR Printer
PC
(AC D or VM S)
MDF
SLT Lines
RS-232C
RS-232C
Adapter
EM I
Filters
EM I
Filters
Rem ote
PCAS
Digital D eskset
Program m ing Phone
RS-232C
Slave C abinet
Master C abinet
To C O
CN13
CN14
CN13
CN6
EC7 EC8 EC/TRKSCCCPCAUX1AUX2
CN5 CN4
CN2
-48V SG
RG
SYN RG +24V
GND C
B M Z0 Z1
Z2
Z3 Z4 RE2 RE1
CBL-S
CARD
Black
Red
Slave
Cabinet
CN2
