• Before installing the CPC card, determine if the DBS will be used as a
KSU or PBX.
To use it as a PBX, cut Strap S1 on the CPC.
Cutting this
strap allows use of pooled trunks as opposed to line appearances.

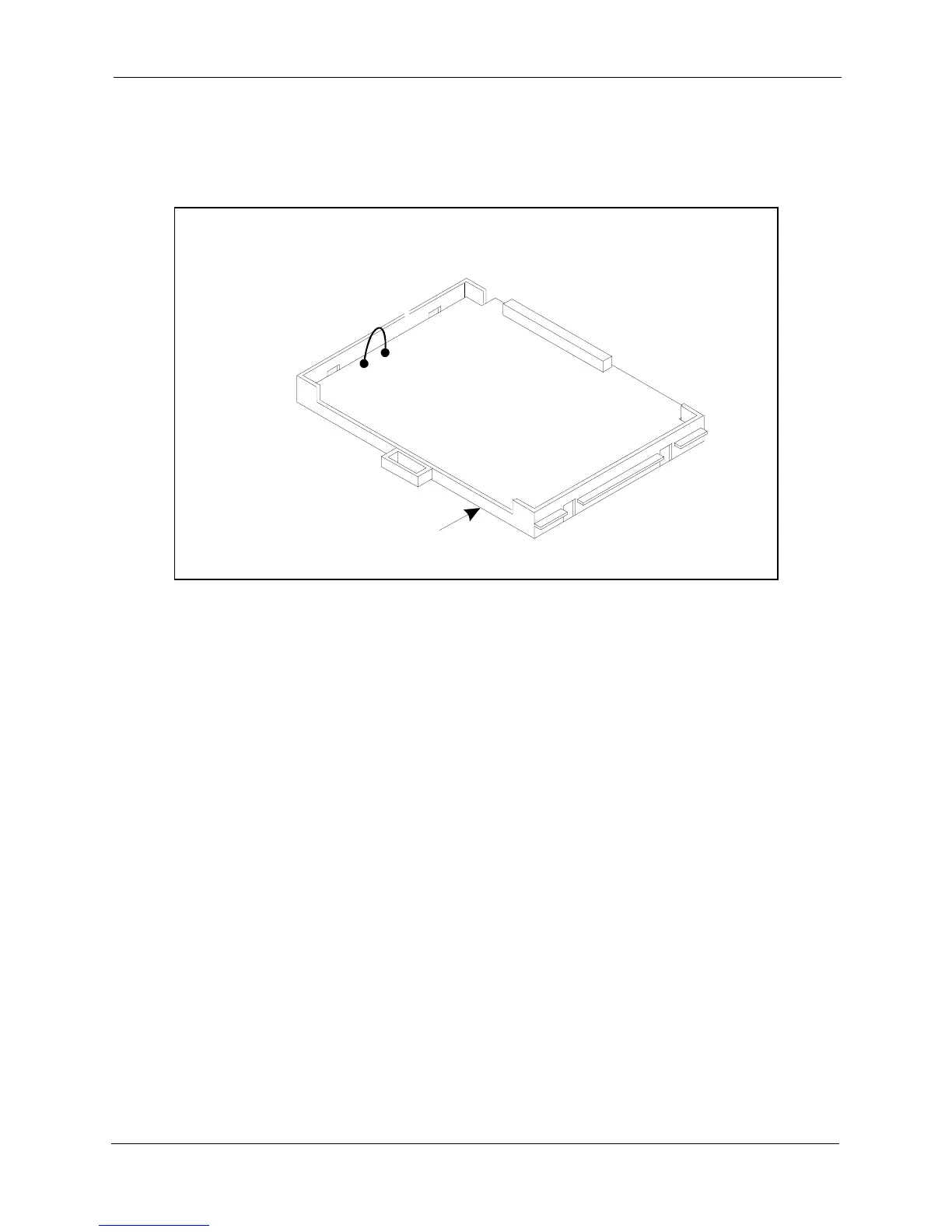

Figure 3-6. CPC Strap S1
• Install cards only in their dedicated slots. The slot type is marked on the
cabinet directly above each slot.
CPC-AIIor
CPC-B
S1
CutS1forPooled Trunks (PBX Operation)
DoNotCutS1forLine Appearances (KSU O peration)
