Positioning operations with a double speed inverter

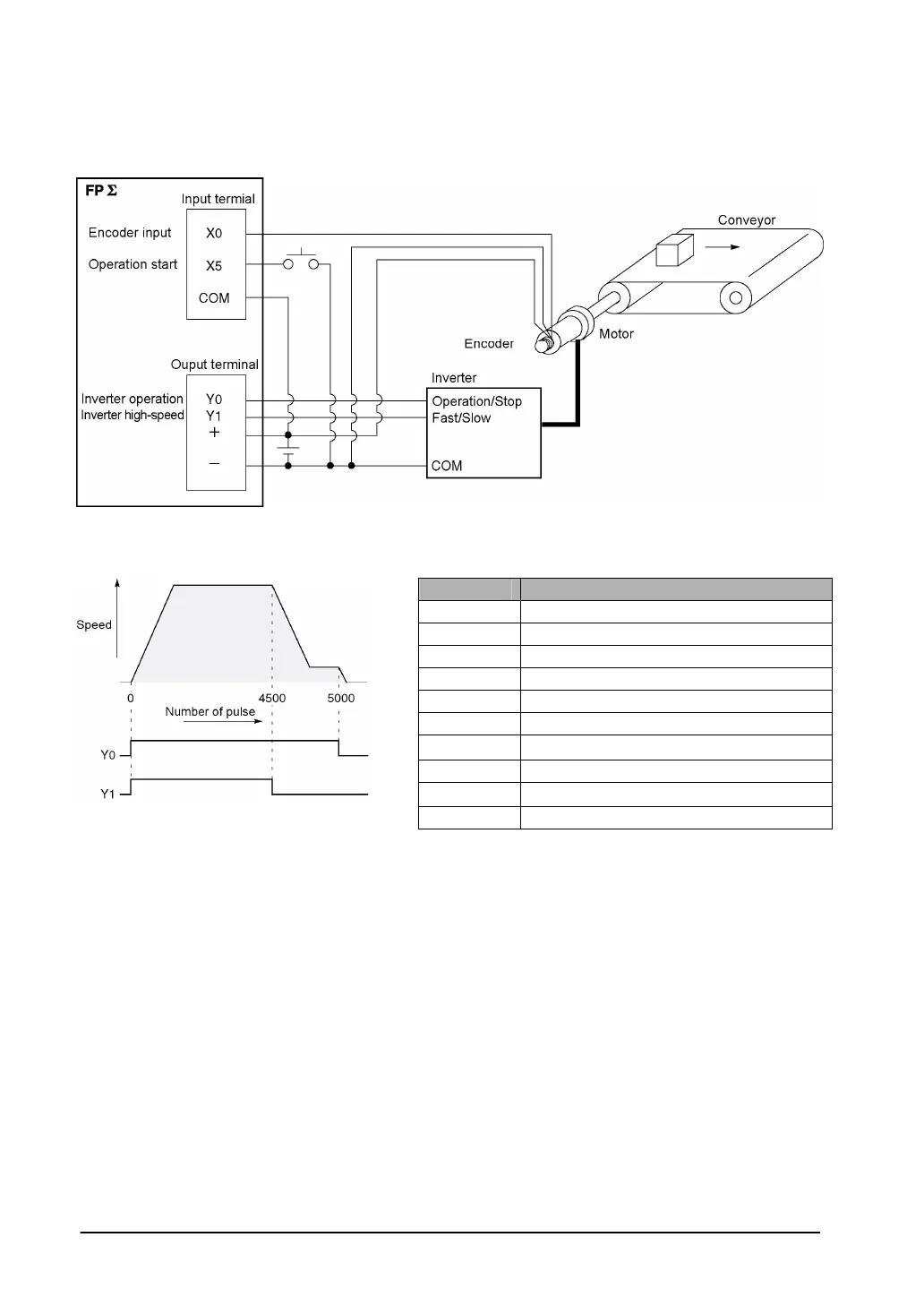

Wiring example
Operation chart I/O allocation
I/O No. Description
X0 Encoder input
X5 Operation start signal
Y0 Inverter operation signal
Y1 Inverter high-speed signal
R100 Positioning operation running
R101 Positioning operation start
R102 Arrival at deceleration point
R103 Positioning done pulse
R900C Comparison instruction <flag>
R903A High-speed counter CH0 control flag
