Panasonic FP E Series User Manual

1-11
1.4 Programming Tools

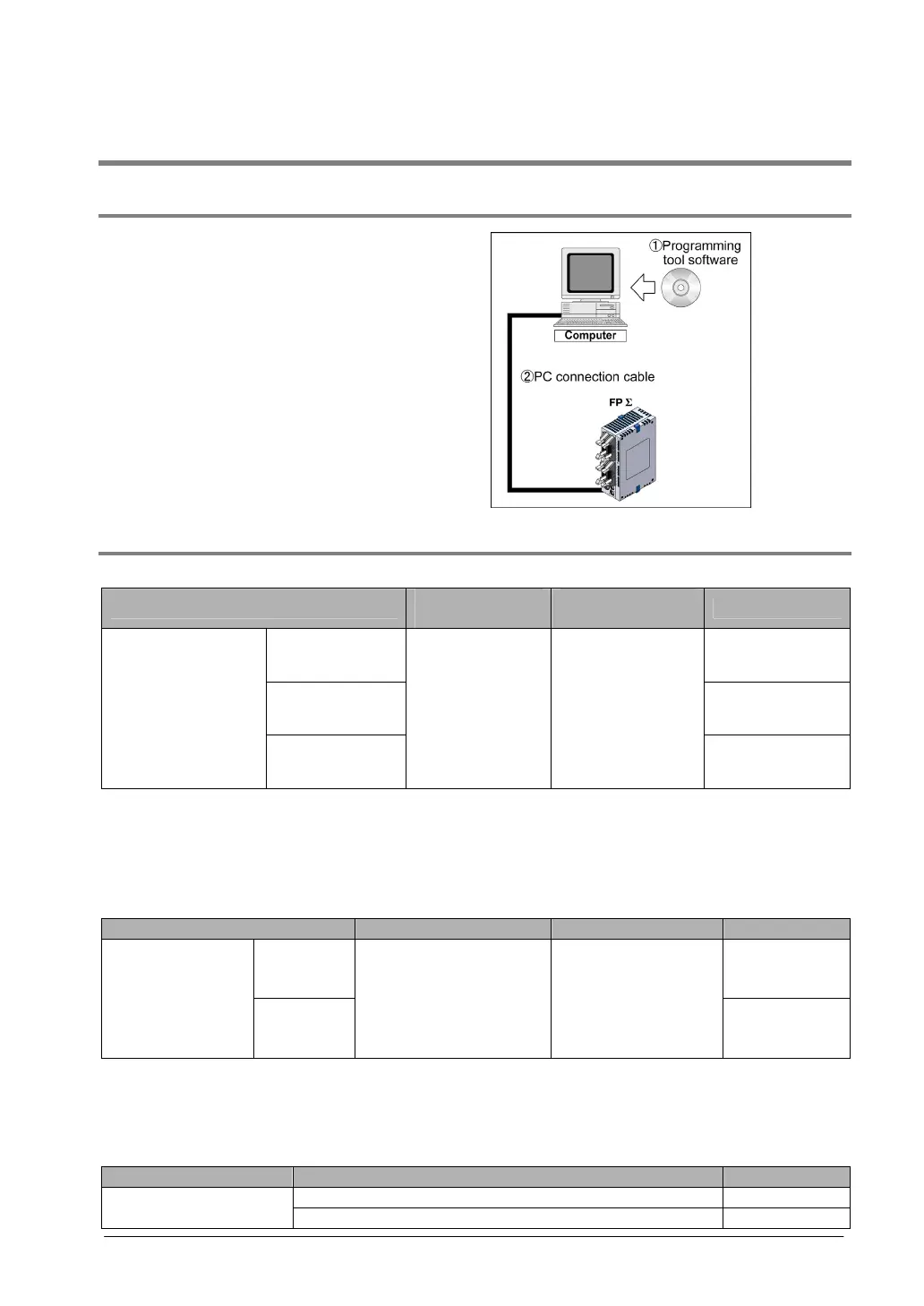

1.4.1 Tools Needed for Programming
1. Programming tool software
• The tool software can also be used with the FP
series.
• “FPWIN Pro Ver.5” or “FPWIN GR Ver.2”
Windows sorware is used with FPΣ.
FPWIN GR Ver.1x, NPST-GR and FP
Programmer cannot be used.
2. PC connection cable
• The connection cable for DOS/V machine is
available.
1.4.2 Software Environment and Suitable Cable
Standard ladder diagram tool software FPWIN-GR Ver.2
Type of software
OS (Operating
system)
Hard disk
capacity
Product No.
Full type AFPS10520
Small type AFPS11520
FPWIN GR Ver.2
English-language
menu
Upgrade version
Windows®95
(OSR 2 or later)/
Windows®98/
Windows®Me/
WindowsNT®
(Ver. 4 or later)/
Windows®2000/
Windows®XP
40MB or more
AFPS10520R
Note1) Ver.1.1 must be installed to install the upgrade version.
Note2) Ver.2.0 can be upgraded to Ver. 2.1 or later free of charge at our web site
(
http://www.nais-j.com/plc/).
Note3) The small type can be used only for each series of FP-e, FPΣ, FP0, FP-X, FP1 and FP-M.
Conforms to IEC61131-3 programming tool software FPWIN-Pro Ver.5
Type of software OS (Operating system) Hard disk capacity Product No.
Full type AFPS50550
FPWIN Pro Ver.5
English-
language menu
Small type
Windows®95 (OSR 2 or
later)/ Windows®98/
Windows®Me/
WindowsNT® (Ver. 4 or
later)/ Windows®2000/
Windows®XP
100MB or more
AFPS51550
Note1) Ver.5.0 can be upgraded to Ver. 5.1 or later free of charge at our web site
(
http://www.nais-j.com/plc/).
Note2) The small type can be used only for each series of FP-e, FPΣ, FP0, FP-X, FP1 and FP-M.
Type of computer and suitable cable
Connector Specifications Product No.
D-sub 9-pin female-Mini DIN round 5-pin AFC8503
D-sub 9-pin
D-sub 0-pin female-Mini DIN round 5-pin straight type AFC8503S
