Panasonic FP E Series User Manual

2-8
2.2.2 Output Specifications
Transistor output specifications
Description
Item
C32(NPN) C28(PNP)
Insulation method Optical coupler
Output type Open collector
Rated load voltage 5 to 24V DC 24V DC
Operating load voltage range 4.75 to 26.4V DC 21.6 to 26.4V DC
Max. load current
For Y0, Y1, Y3, Y4: 0.3A
For Y2, Y5 to YF: 0.1A
For Y0, Y1, Y3, Y4: 0.5A
For Y2, Y5 to YB: 0.3A
Max. surge current
For Y0, Y1, Y3, Y4: 0.9A
For Y2, Y5 to YF: 0.5A
For Y0, Y1, Y3, Y4: 1.5A
For Y2, Y5 to YB: 0.7A
Output points per common 16 points/common 12 points/common
Off state leakage current 100μA or less
On state voltage drop 0.5V or less
off→on
For Y0, Y1, Y3, Y4 (at 15mA or less): 2μs or less
For Y2, Y5 or later: 0.2ms or less
Response time
on→off
For Y0, Y1, Y3, Y4 (at 15mA or less): 8μs or less
For Y2, Y5 or later: 0.5ms or less
Voltage 21.6 to 26.4V DC
External power
supply for driving
internal circuit
Current 70mA or less
Surge absorber Zener diode
Operating mode indicator LED display
Phase fault protection Phase fault protection, thermal protection for Y2, Y5 or later

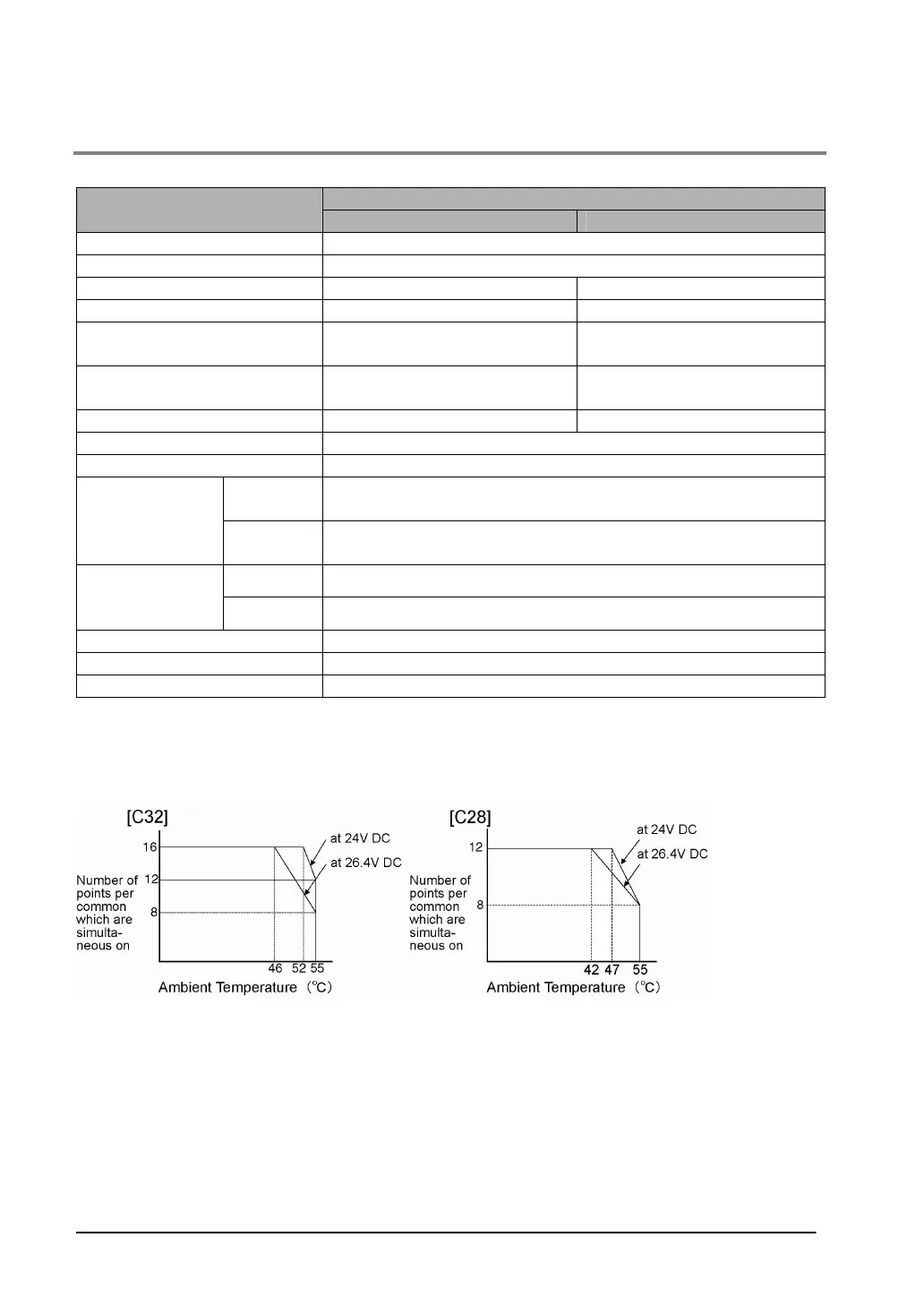

Limitations on number of simultaneous output on points
Keep the number of output points per common which are simultaneously on within the following range as
determined by the ambient temperature.
