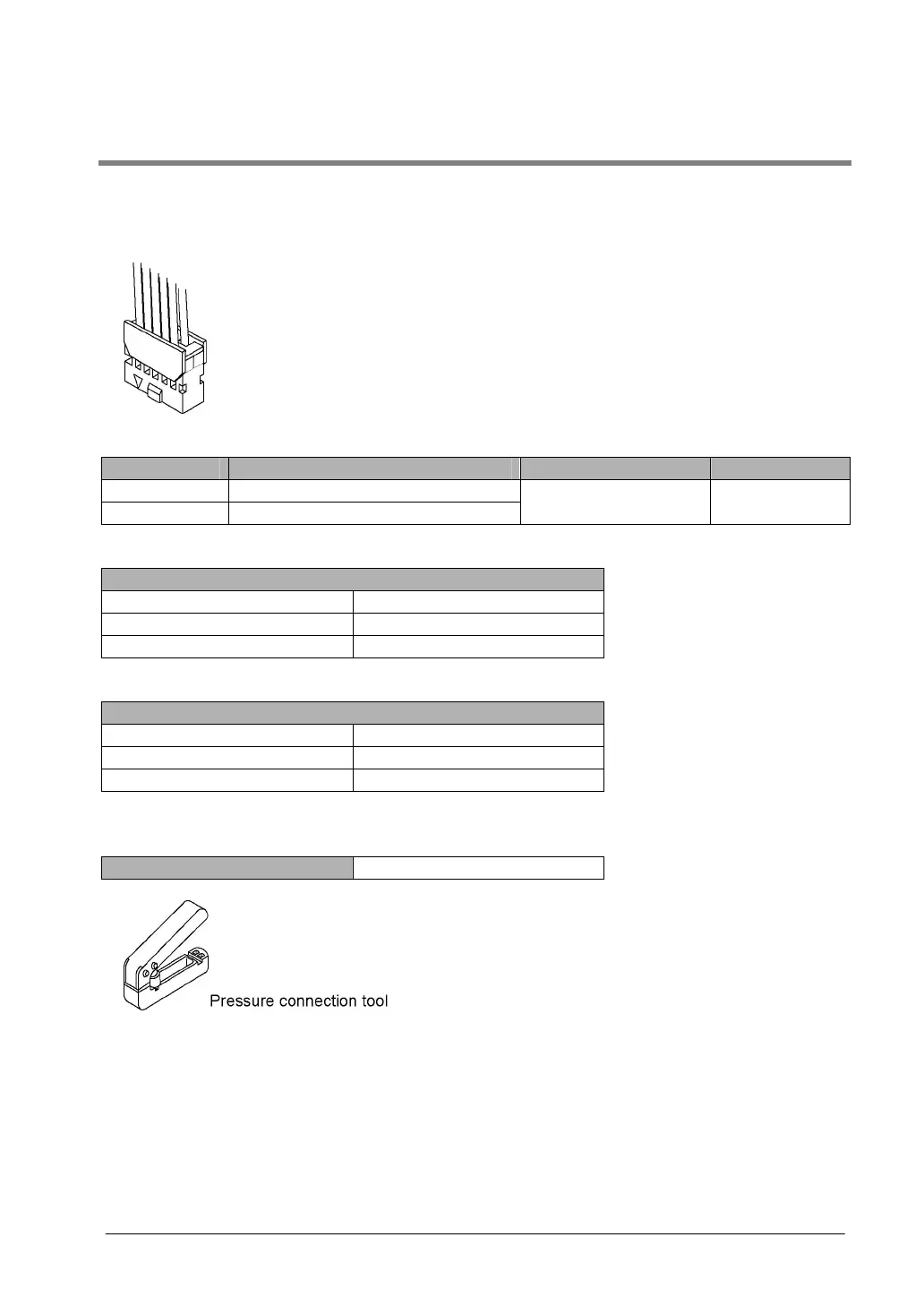

5.4 Wiring of MIL Connector Type
Supplied connector and suitable wires
The connector listed below is supplied with the FPΣ control unit. Use the suitable wires given below. Also,
use the required pressure connection tools for connecting the wires.
Suitable wires
Size Nominal cross-sectional area Insulation thickness Rated current
AWG#22 0.3mm
2
AWG#24 0.2mm
2
Dia. 1.5 to dia. 1.1 3A
Supplied connector (AFP0807)
Type and product No.
Housing 10-pin type only
Semi-cover AXW61001A
Welder (contact) AXW7221
Supplied connector (AFP2801)
Type and product No.
Housing AXW1404A
Semi-cover AXW64001A
Welder (contact) AXW7221
Note) Packed with the Expansion I/O unit.
Pressure connection tool
Product No. AXY52000
