5-8
5.2 Wiring of Power Supply
5.2.1 Wiring of Power Supply

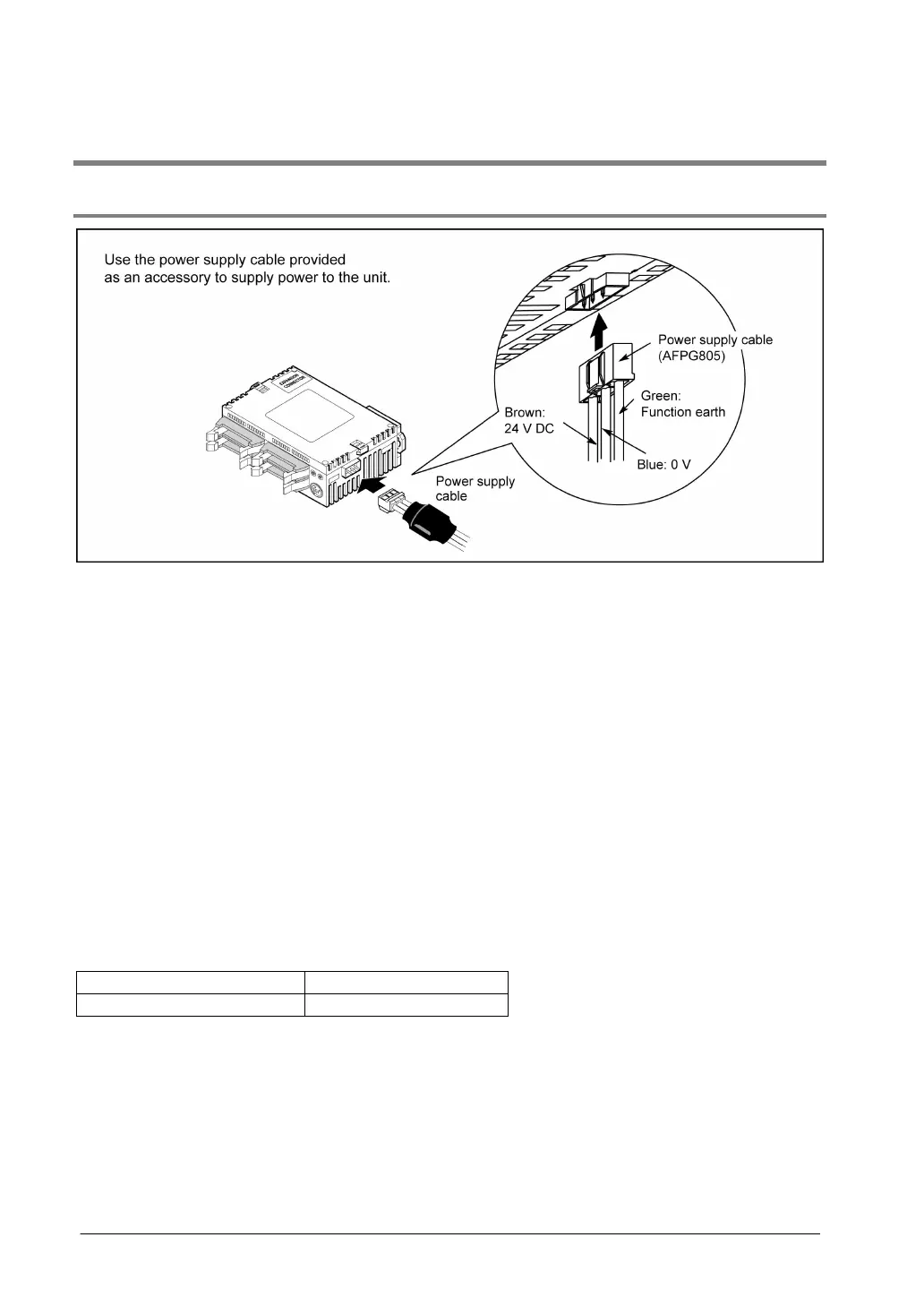

Power supply wiring for the unit
Use the power supply cable (Product No.:AFPG805) that comes with the unit to connect the power
supply.
- Brown: 24V DC
- Blue: 0V
- Green: Function earth
Power supply wire
To minimize adverse effects from noise, twist the brown and blue wires of the power supply cable.
Power supply type
To protect the system against erroneous voltage from the power supply line, use an insulated power
supply with an internal protective circuit.
The regulator on the unit is a non-insulated type.
If using a power supply device without an internal protective circuit, always make sure power is
supplied to the unit through a protective element such as a fuse.
Power supply voltage
Rated voltage 24V DC
Operating voltage range 21.6 to 26.4 V DC
