5-7

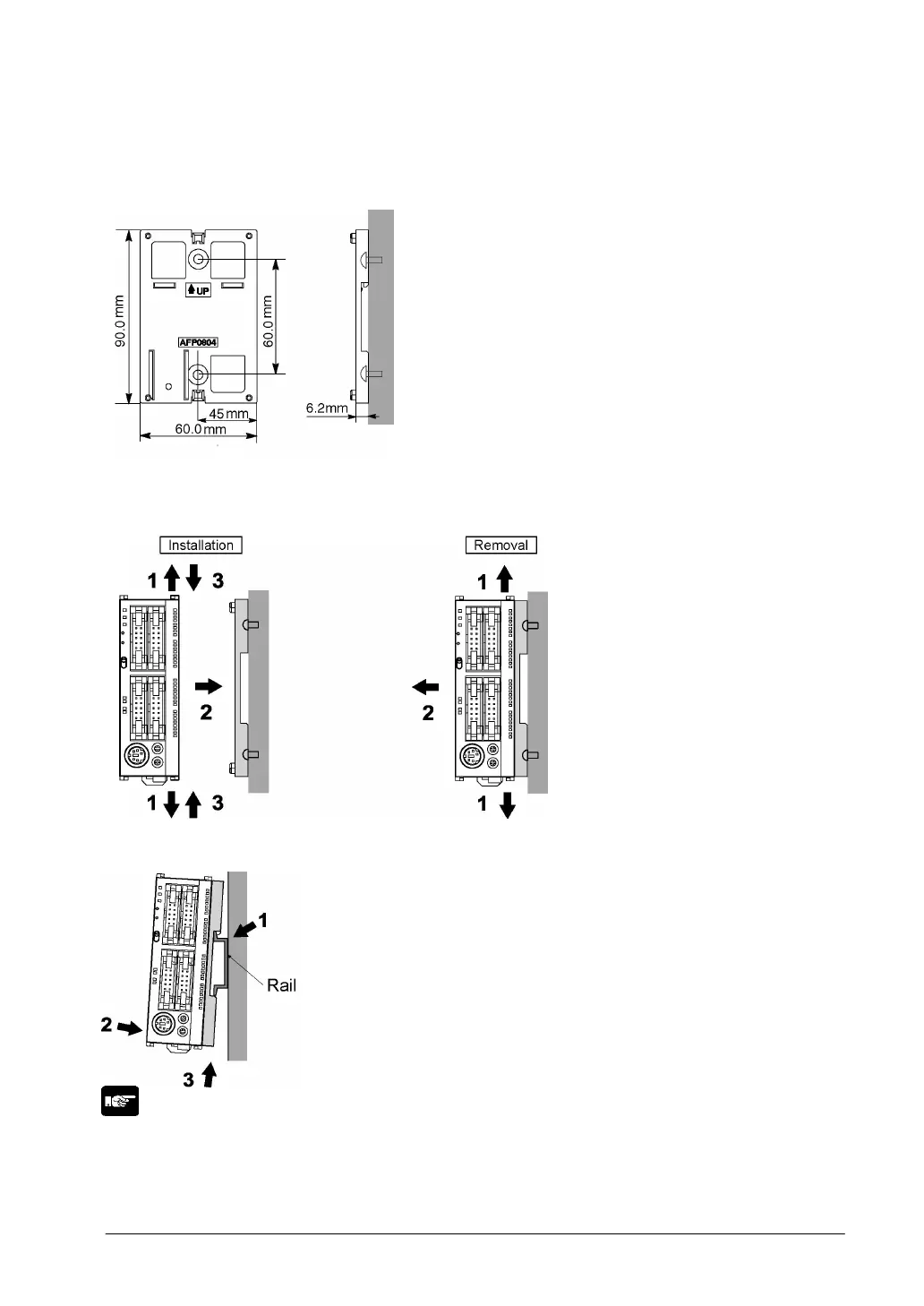

When using the flat type mounting plate (AFP0804)
Use M4 size pan-head screws for attachment of the slim type mounting plate and install according to the
dimensions shown below.
Raise the expansion hooks on the top and bottom of the unit.
Align the expansion hooks with the mounting plate and press the hooks on the top and bottom.
An unit with an attached flat type mounting plate can also be installed sideways on a DIN rail.
Note:
The flat type mounting plate (AFP0804) should be used only with the control unit as a stand-alone unit. It
should not be used when the control unit is being used in combinaton with an FP0 expansion unit or FPΣ
expansion unit.
