Panasonic FP E Series User Manual

7-15

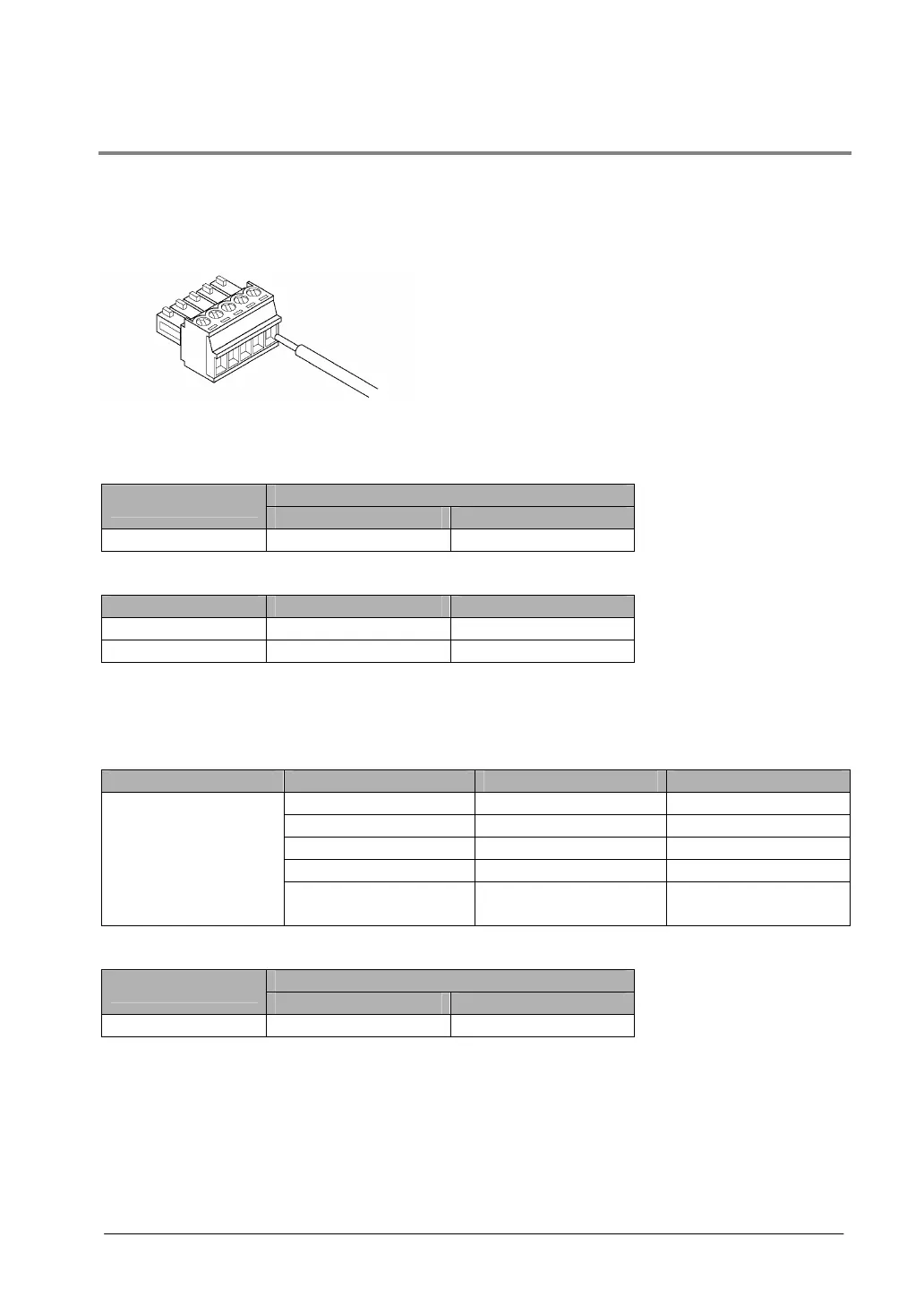

7.3.2 Wiring
Accessory communication connector/Suitable wire
The communication cassette is supplied with a communication connector, which has a screw-type
terminal block.
Use the following items for wiring.
Accessory communication connector
If additional connectors are needed, use the communication connector manufactured by Phoenix
Contact.
Phoenix Contact product ID
Number of pins
Model No. Product No.
5 pins MC1, 5/5-ST-3, 5 1840395
Suitable wire (twisted wire)
Number of wires Size Cross-sectional area
1 AWG#28 to 16 0.08mm
2
to 1.25 mm
2
2 AWG#28 to 18 0.08mm
2
to 0.75 mm
2
Use the above wires shielded.
It is recommended to ground the shielded part.
Pole terminals with compatible insulation sleeve
If you wish to use pole terminals, Phoenix Contact offers the following models.
Manufacturer Cross-sectional area Size Product number
0.25 mm
2
AWG#24 AI 0, 25-6 YE
0.50 mm
2
AWG#20 AI 0, 5-6 WH
0.75 mm
2
AWG#18 AI 0, 75-6 GY
1.00 mm
2
AWG#18 AI 1-6 RD
Phoenix Contact
0.5 mm
2
x 2 AWG#20 x 2 pcs
AI-TWIN 2x
0, 5-8 WH
Pressure welding tool for pole terminals
Phoenix Contact product ID
Manufacturer
Model No. Product No.
Phoenix Contact CRIMPFOX UD6 1204436
