7-16
Screwdriver for terminal block
To tighten the terminals of the communication connector, use a screwdriver by Phoenix Contact (product
no. 1205037, blade size 0.4 x 2.5, model no. SZS 0,4 x 2,5) or Matsushita Electric Works (part no.
AFP0806). The tightening torque should be 0.22 to 0.25 Nm (2.3 kgfcm to 2.5 kgfcm).

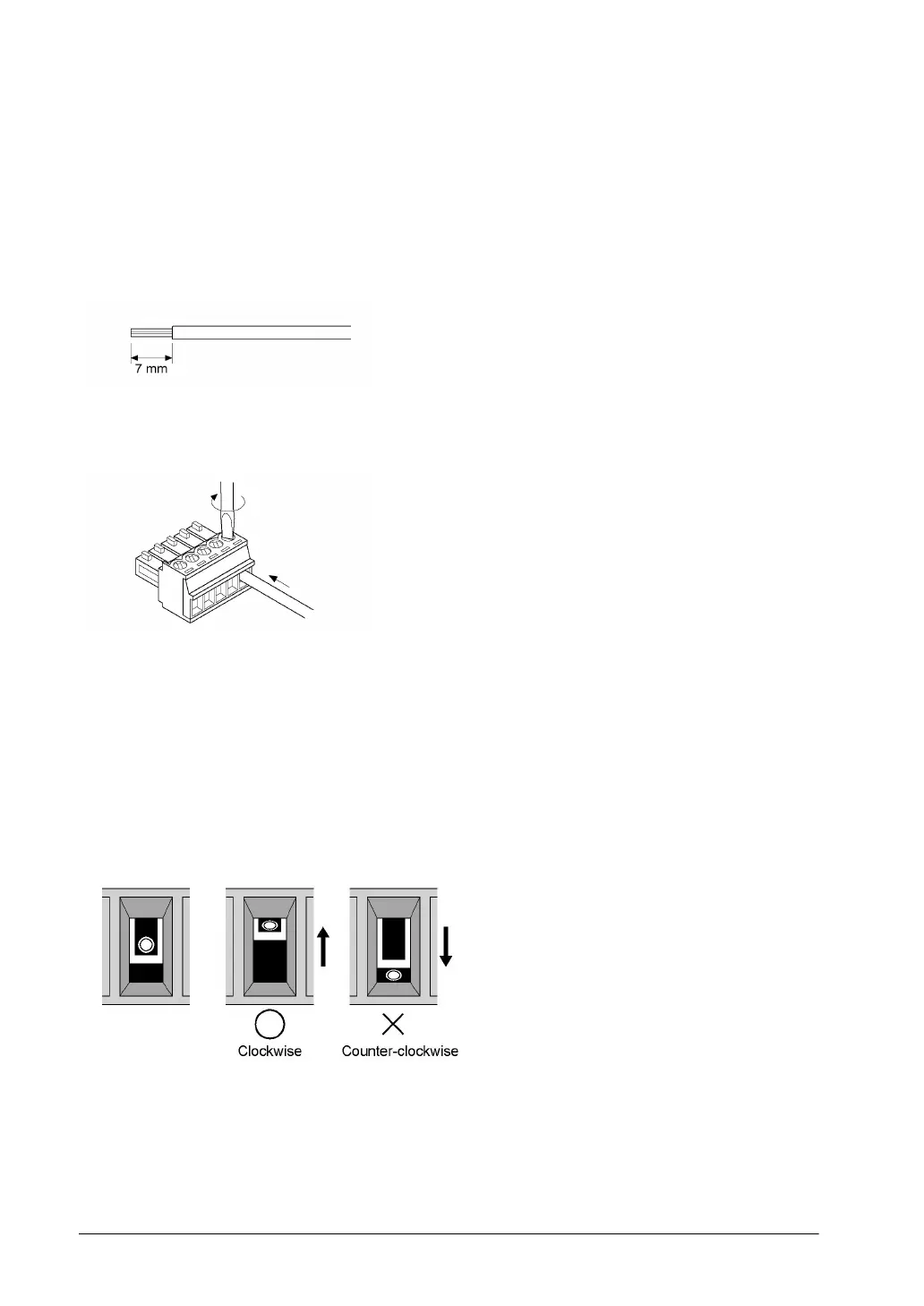

Wiring method
1. Remove 7 mm of the wire’s insulation.
2. Insert wire into terminal hole until it stops. Tighten screw clockwise to fix wire in place.
(Tightening torque: 0.22 Nm to 0.25 Nm (2.3 kgfcm to 2.5 kgfcm)
Notes for wiring
• When removing the wire’s insulation, be careful not to scratch the core wire.
• Do not twist the wires to connect them.
• Do not solder the wires to connect them. The solder may break due to vibration.
• After wiring, make sure stress is not applied to the wire.
• In the terminal block socket construction, if the wire is fastened upon counter-clockwise rotation of the
screw, the connection is faulty. Disconnect the wire, check the terminal hole, and then re-connect the
wire.
• If two wires are connected to the plus terminal and minus terminal of the RS485 of AFPG806 (COM4),
use the wires of the same cross-sectional area which is 0.5 to 0.75 mm
2
.
