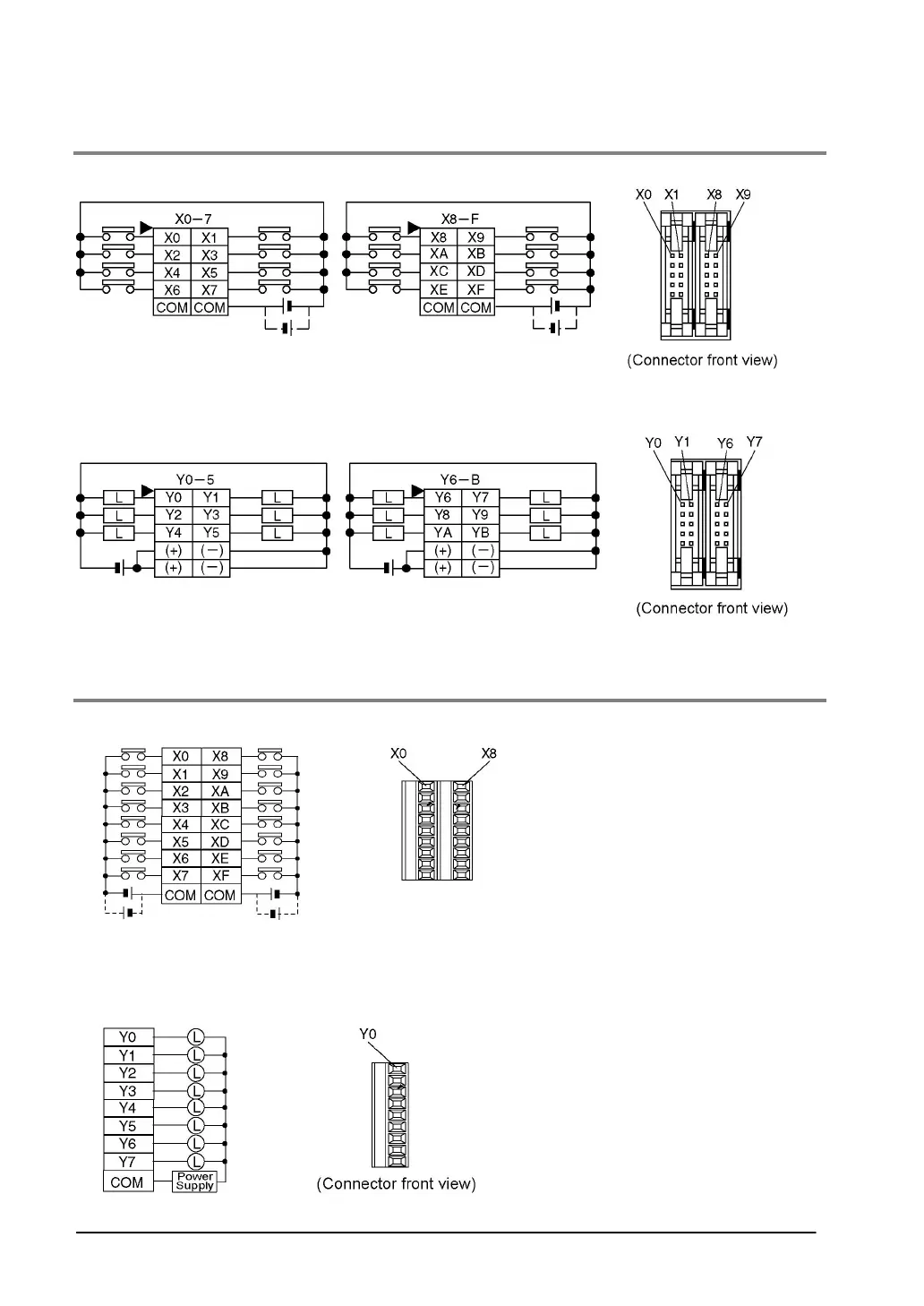

2.3.2 Control Unit (for C28)
Input
Note) The four COM terminals of input circuit are connected internally.
Output
Note) The two (+) terminals of output circuit are connected internally. The two (−) terminals of output
circuit are connected internally.
2.3.3 Control Unit (for C24)
Input
Note) The two COM terminals of input circuit are not connected internally.
Output
