3.4 Specifications of FPΣ Expansion Unit
3.4.1 FPΣ Expansion Unit

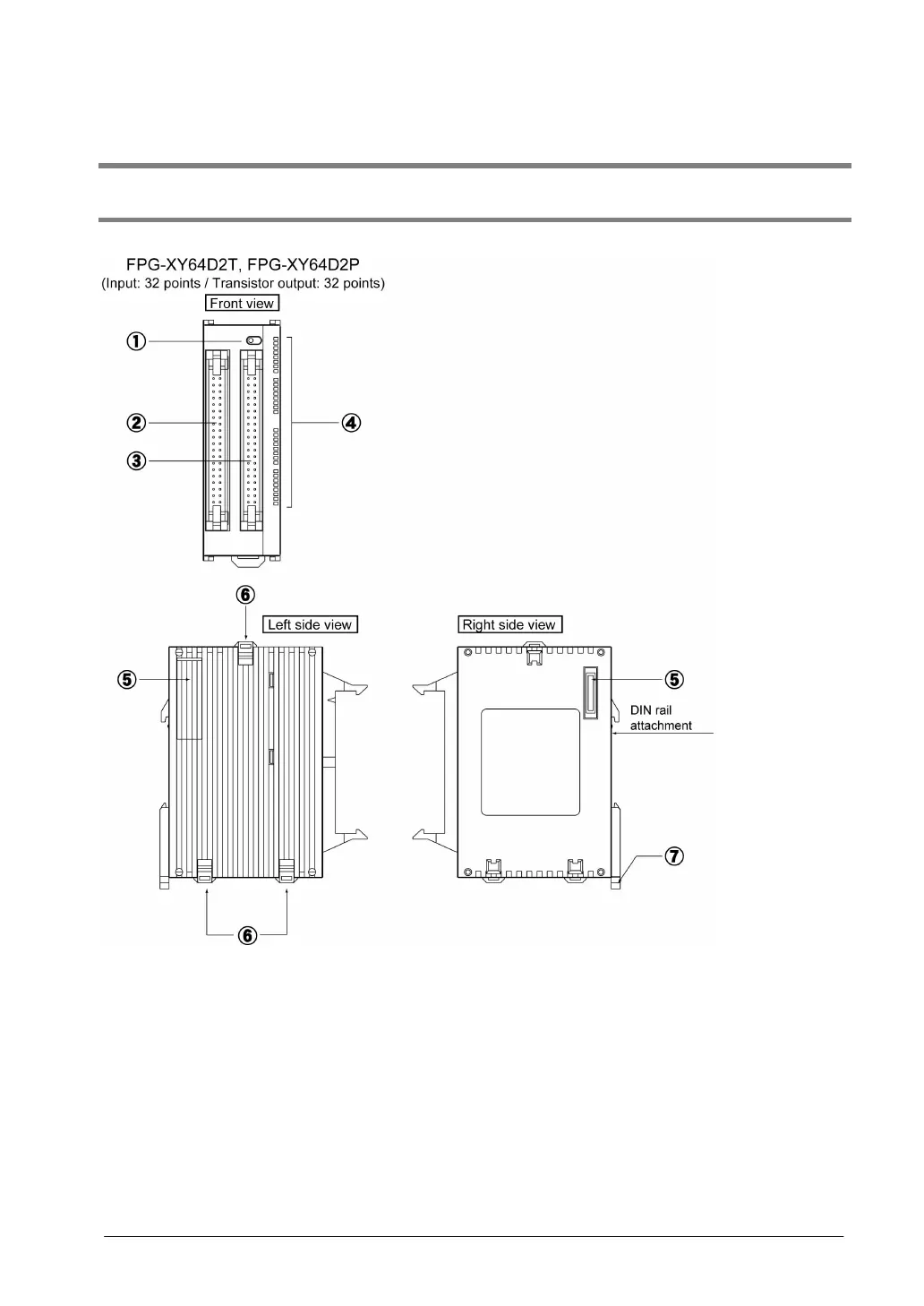

Parts and functions
① LED display selection switch
Switches between the input (32 points) and output (32 points) of the LED display.
② Input connector (40 pins)
③ Output connector (40 pins)
④ Input and Output indicator LEDs
⑤ FPΣ expansion connector
This expansion connector is used to connect the dedicated unit for FPΣ.
⑥ Expansion hook
This hook is used to secure expansion unit.
⑦ DIN hook
This lever enables the expansion unit to attach to a DIN rail at a touch. The lever is also used for
installation on the mounting plate (slim 30 type) (Product No.:AFP0811).
