3-3
3.2 Expansion Method of Units for FP0 and FPΣ
The FP0 expansion unit (expansion I/O unit, intelligent unit) is expected by connecting to the right side of
the control unit.
Unit expansion is done using the right-side connector for FP0 expansion and expansion hook on the side
of the unit.

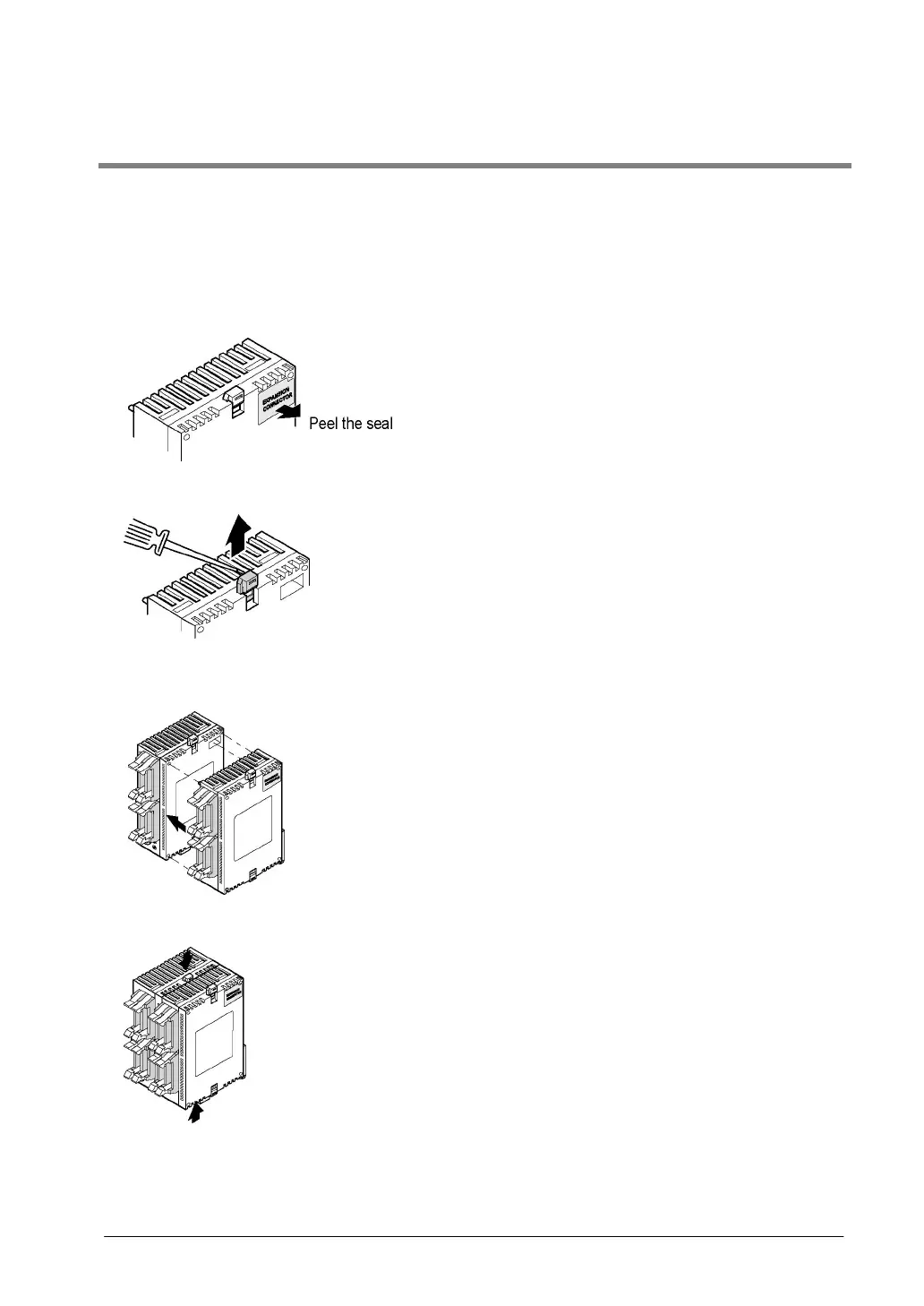

(1) Peel the seal on the side of the unit so that the internal right-side connector for FP0 expansion
is exposed.
(2) Raise the expansion hooks on the top and bottom sides of the unit with a screwdriver.
(3) Align the pins and holes in the four corners of the control unit and expansion unit, and insert
the pins into the holes so that there is no gap between the units.
(4) Press down the expansion hooks raised in step 2 to secure the unit.
