5-5

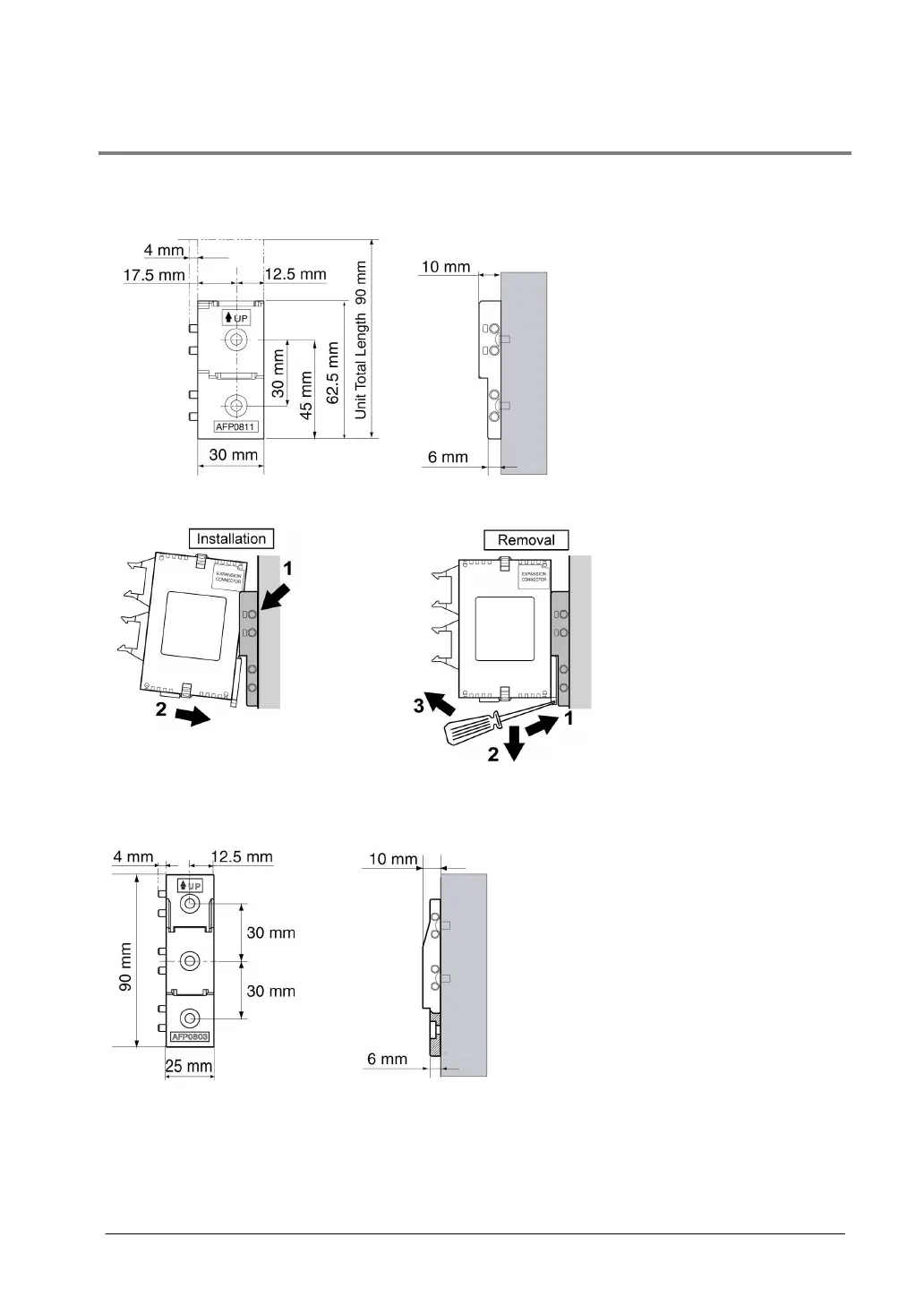

5.1.3 Installation Using the Optional Mounting Plate
When using the slim 30 type mounting plate (AFP0811) (for mounting FPΣ)
Use M4 size pan-head screws for attachment of the slim 30 type mounting plate and install according to
the dimensions shown below.
The rest of the procedure is the same as that for attaching the unit to the DIN rails.
When using the slim type mounting plate (AFP0803) (for mounting FP0)
Use M4 size pan-head screws for attachment of the slim type mounting plate and install according to the
dimensions shown below.
The rest of the procedure is the same as that for attaching the unit to the DIN rails.
