When Changing Ladder Program from 12k Type to 32k
Type
It is necessary to convert the program to change the ladder program that is used for the FPΣ 12k
type to the one for FPΣ 32k type.
Program Conversion
When the FPWIN GR is used to change the model, the system register is automatically initialized
.
If the setting value has been changed from the default value, note it down before the program conversion
.
Number of points of internal relay for the 32k type is different from the 12k type.

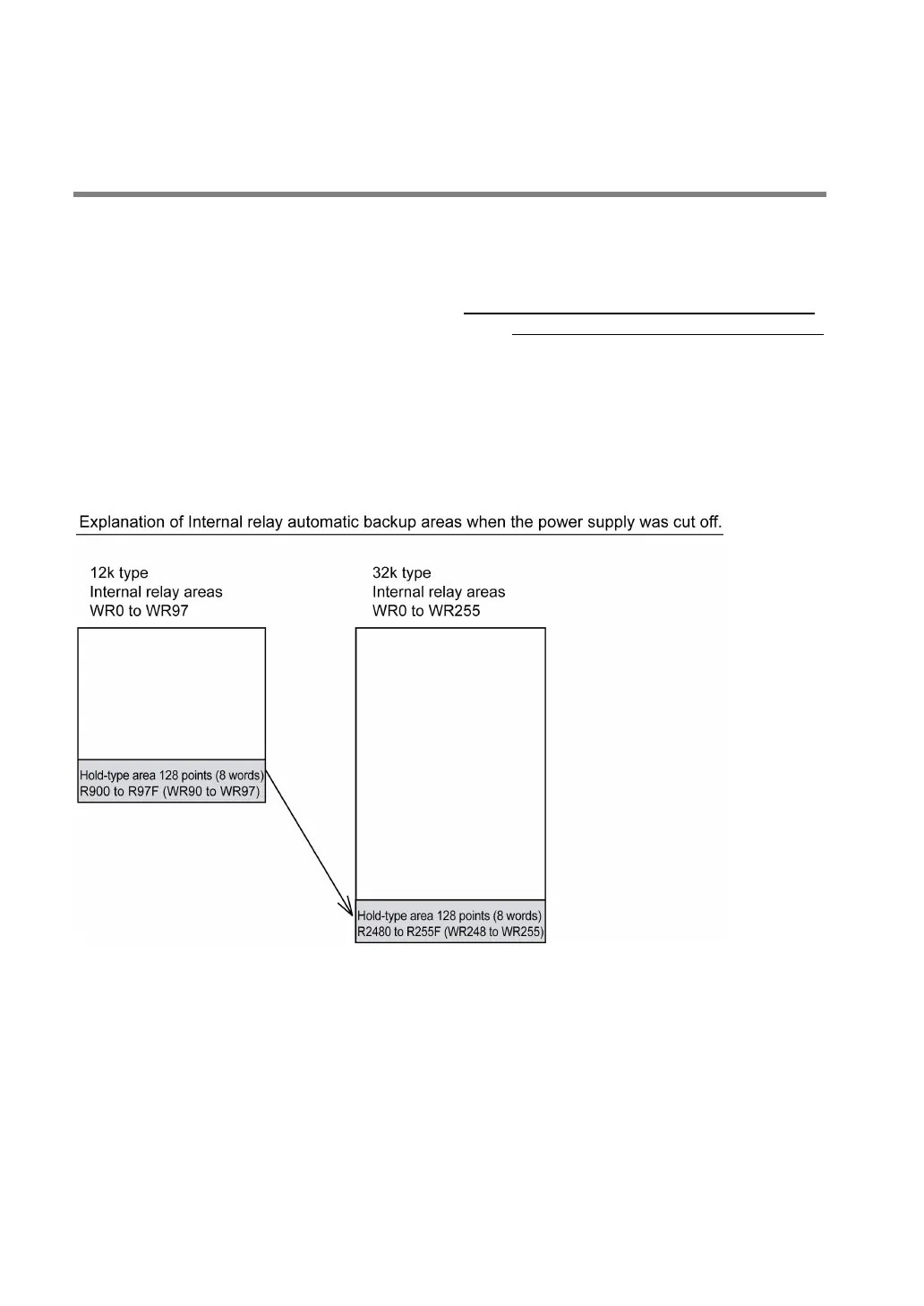

The hold-type areas differ (automatic backup areas when the power supply was cut off) as the figure
shown below.
When the hold-type area in the internal relay is used, the program for that part should be converted.
(As the number of points for the counter, timer, DT and special DT is the same for the 12k type and 32k
type, the program conversion is not necessary.)
